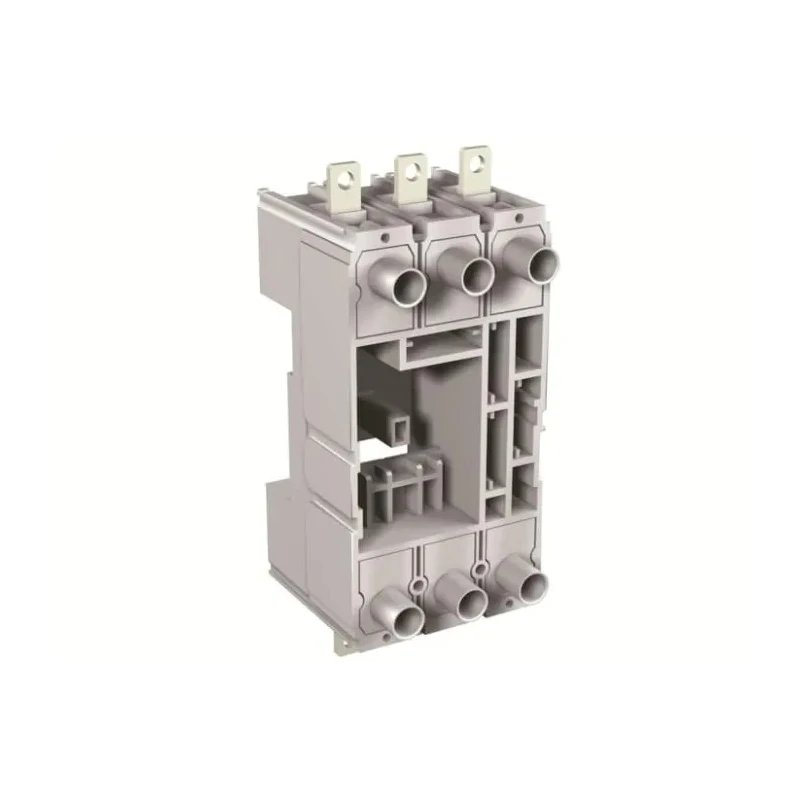

ABB Circuit Breaker Accessory Plug-In Unit for use with Tmax XT 1SDA068191R1 XT2 P FP HR



Category Circuit Breaker Accessories Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Model	1SDA068191R1 XT2 P FP HR
Accessory Type	Plug-In Unit
For Use With	Tmax XT
Hazardous Area Certification	IEC 60947-2
Standards/Approvals	RoHS, REACH

Key Features

Fixed part of plug-in for 4 pole circuit-breaker with extended front terminals XT2.
Rated operational voltage of 690 V AC and 500 V DC for versatile application.
Rated for uninterrupted current of 160 A providing continuous performance.
Insulation voltage rating of 1000 V ensures high dielectric strength.
Impulse withstand voltage rated at 8 kV for robust protection against surges.
Complies with IEC 60947-2 hazardous area certification standards.
Manufactured in Italy ensuring quality and reliability.

Product Description

ABB 1SDA068191R1 XT2 P FP HR is a plug-in unit accessory designed specifically for use with the Tmax XT range of circuit breakers. This accessory serves as the fixed part of the plug-in for 4 pole circuit breakers, featuring extended front terminals XT2 that facilitate easy and secure connections in electrical control panels.

Rated for a high operational voltage of 690 V AC and 500 V DC, the unit is suitable for a broad spectrum of industrial and commercial applications, ensuring safety and durability. It supports an uninterrupted current rating (Iu) of 160 A, enabling it to handle continuous electrical loads without interruption.

The accessory offers a rated insulation voltage of 1000 V (Ui) and a rated impulse withstand voltage (Uimp) of 8 kV, which protects electrical systems from voltage spikes and surges. These electrical ratings make it a reliable component in demanding environments, enhancing the longevity and performance of Tmax XT circuit breakers.

Certified to IEC 60947-2 standards for hazardous areas, this ABB accessory conforms to stringent international safety requirements and regulatory compliance, including RoHS and REACH standards.

Manufactured in Italy, this plug-in unit embodies the high quality and engineering precision expected from ABB products, making it an excellent choice for industrial automation, electrical distribution systems, manufacturing plants, and commercial installations.

Fixed part of plug-in unit with extended front terminals XT2 for 4 pole circuit breakers. Rated operational voltage: 690 V AC and 500 V DC for versatile use. Uninterrupted current rating of 160 A ensuring reliable continuous performance.

High insulation voltage of 1000 V and surge withstand of 8 kV for component protection. Certified IEC 60947-2 compliant for hazardous area application. Meets RoHS and REACH environmental standards. Manufactured in Italy under strict quality controls.

Perfectly suited for electrical, automation, and control environments, the ABB Tmax XT plug-in unit enhances circuit breaker functionality and ensures secure electrical connections. Explore our comprehensive range of Circuit Breaker Accessories for more solutions tailored to your operational needs.
