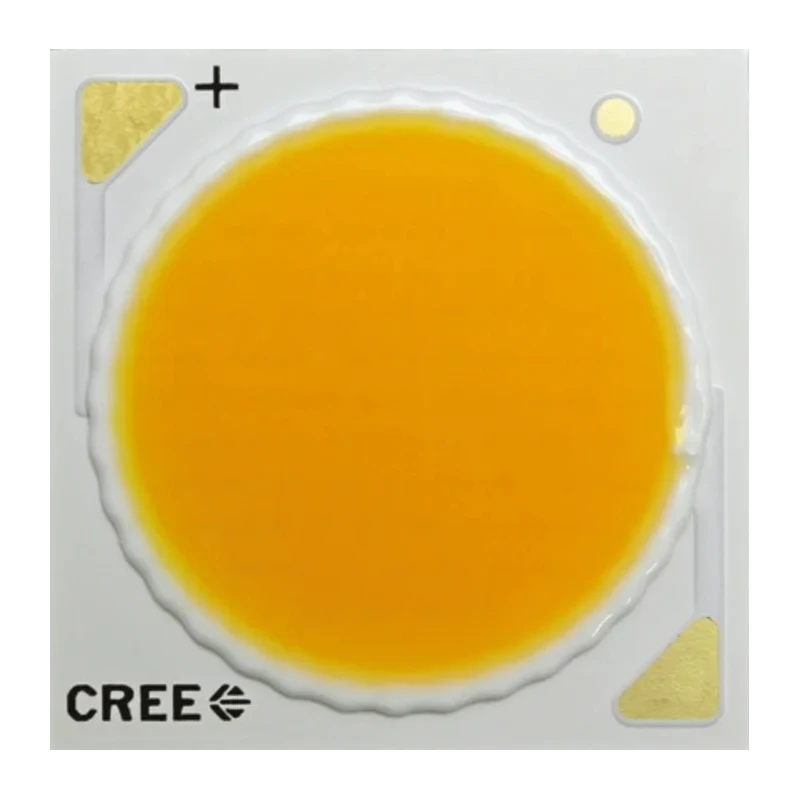

Cree LED XLamp CXA2520 White CoB LED 5000K, 2916 lm, 1250 mA, 36V Forward Voltage CXA2520
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cree LED |
| Length | 23.85mm |
| Model | CXA2520 |
| Width | 21mm |
| Series | XLamp CXA2520 |
| Maximum forward current | 1250mA |
| Viewing angle | 115 ° |
| Standards/Approvals | RoHS, ANSI/UL 8752, UL Component (E349212), REACH, NEMA SSL-3 2011 |
| Colour Temperature | 5000k |
| LED Colour | White |
| Forward Voltage | 36V |
| Radiant Flux | 47000mW |
| Typical Luminous Flux | 2916lm |
| Optical Source Diameter | 19mm |
| Drive current | 1250mA (maximum) |
| Binning and characterization | 85°C |
| Cree LED 3.5 V White LED 3535 Surface XLamp XP-C XPCWHT-L1-0000-00C01Brand | Cree LED |
Key Features
- The LED has an optical source diameter of 19mm providing uniform light distribution.
- It features a 115° viewing angle with a uniform chromaticity profile.
- The LED operates at a colour temperature of 5000K producing bright white light suitable for multiple applications.
- Compliance with RoHS, ANSI/UL 8752, UL Component E349212, REACH, and NEMA SSL-3 2011 standards ensures high reliability.
- The LED is designed for easy installation with top-side solder connections and a thermocouple attach point.
- The package dimensions measure approximately 23.85mm length by 21mm width.
Product Description
Cree LED CXA2520 White CoB LED 5000K is part of the XLamp CXA2520 series designed for high-performance lighting applications. This LED array delivers a typical luminous flux of 2916 lumens with a radiant flux of 47000mW, making it ideal for energy-efficient industrial and commercial lighting solutions.
The LED features a forward voltage of 36V and a maximum drive current of 1250mA, allowing for high flux output and uniform illumination. Its optical source diameter of 19mm and 115° viewing angle ensures broad and even light distribution with excellent color consistency.
Manufactured to meet stringent standards including RoHS, ANSI/UL 8752, UL Component E349212, REACH, and NEMA SSL-3 2011, this LED is engineered for reliability and longevity in demanding environments.
The CXA2520 LED array comes with top-side solder connections and a thermocouple attach point for efficient heat management and straightforward integration into luminaires.
This product is well-suited for a variety of industrial, commercial, and architectural lighting applications, especially as replacements for halogen, ceramic metal halide, and compact fluorescent lighting technologies. Its high efficacy and broad color temperature make it a versatile choice for illuminating large areas with bright white light.
The LED array produces 2916 lumens with high efficacy. Operating current is up to 1250mA for maximum brightness. Forward voltage is stable at 36V for consistent performance. Color temperature of 5000K provides bright, neutral white light.
115° viewing angle enables wide light dispersion. Complies with multiple safety and environmental standards. Easy to install with top-side solder and thermocouple connections.
For professional lighting solutions requiring high performance and reliability, the Cree LED XLamp CXA2520 offers a robust and efficient option suitable for industrial, laboratory, manufacturing, and commercial applications. Explore more products in the LED Lighting Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The typical luminous flux of the CXA2520 LED is 2916 lumens, providing bright illumination suitable for various applications.
The forward voltage of the CXA2520 LED is 36V, ensuring stable performance during operation.
This model has a maximum drive current of 1250mA, allowing for high flux output.
The viewing angle of this LED is 115°, which enables broad and even light distribution.
The package dimensions of the CXA2520 LED are approximately 23.85mm in length and 21mm in width.
The optical source diameter of the CXA2520 LED is 19mm, contributing to its uniform light distribution.
This LED complies with RoHS, ANSI/UL 8752, UL Component E349212, REACH, and NEMA SSL-3 2011 standards, ensuring high reliability.
The CXA2520 LED operates at a color temperature of 5000K, providing bright white light.
This model is well-suited for industrial, commercial, and architectural lighting applications, especially as replacements for halogen and fluorescent lighting technologies.
It features top-side solder connections and a thermocouple attach point for efficient heat management and straightforward integration into luminaires.
The radiant flux of the CXA2520 LED is 47000mW, contributing to its high luminous output.
The CXA2520 LED is part of the XLamp CXA2520 series, designed for high-performance lighting applications.
