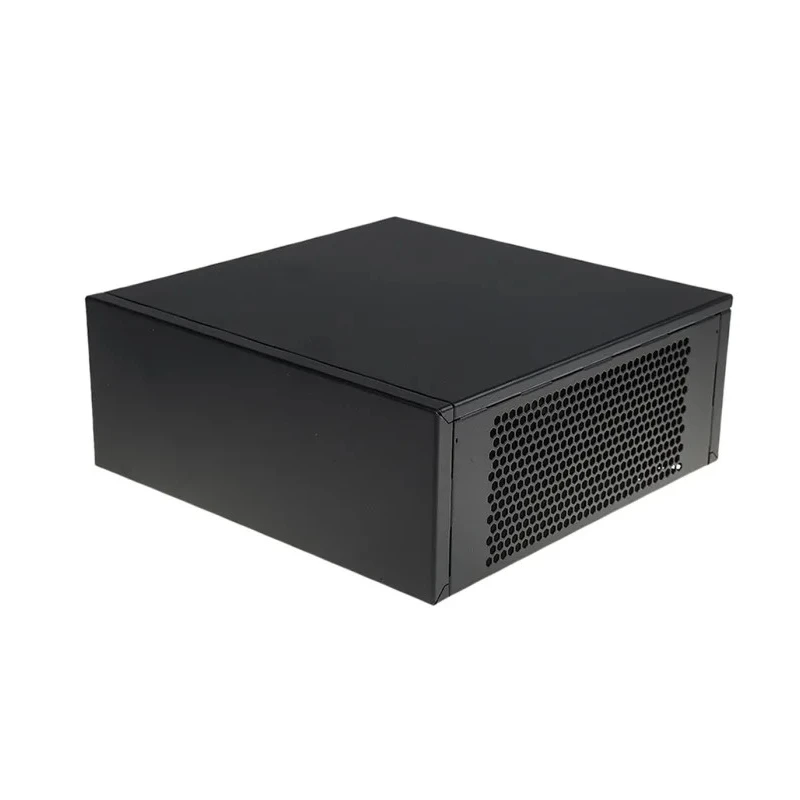

nVent SCHROFF 2 U 19 in Rack Mount Case Interscale M Ventilated Steel Aluminium IP30 14825255

nVent SCHROFF 14825255 2 U 19 in Rack Mount Case Interscale M is a versatile ventilated enclosure designed for 19-inch rack and desktop applications. Constructed with a sturdy U-shaped steel body and aluminium front and rear panels, this rack mount case provides reliable mechanical protection and is easy to modify and install.

The unit has external dimensions of 221 mm width, 221 mm depth, and 88 mm height corresponding to a 2U rack height. It offers integral EMC protection through interlocking case walls, maintaining shielding effectiveness of about 20 dB up to 2 GHz even with perforated side panels.

The ventilated panels enable efficient heat dissipation for fan-free applications. The enclosure meets IP30 ingress protection, suitable for indoor environments requiring protection against solid objects but not liquids.

This case is part of the Interscale M series, which includes 40 different sizes and configurations with solid or perforated side panels. It is designed for quick assembly/disassembly with only two screws, and its modular construction supports various accessories such as mounting plates, fans, PCB supports, DIN rail clips, and assembly tools.

Applications for this rack mount case include housing fan-free fieldbus enclosures, single-board computers, ARM modules, medical diagnostic and therapeutic devices, PC-based POS systems, video building monitoring, and peripheral control units for industrial settings.

The case features a 2U rack unit height suitable for compact electronics housing. External dimensions measure 221 mm width, 221 mm depth, and 88 mm height. Constructed from steel with aluminium front and rear panels ensuring durability and ease of modification.

Ventilated design with perforated side panels facilitates effective heat dissipation. Complies with IP30 rating, providing protection against solid objects larger than 2.5 mm. Includes integral EMC protection with interlocking case walls, effective up to 2 GHz.

The robust U-shaped body allows quick assembly and disassembly with just two screws. Part of the Interscale M series, suitable for desktop, DIN rail, and rack mounting applications. Finished with fine powder coating in RAL7016 grey for professional aesthetics and corrosion resistance.

Ideal for industrial, automation, medical, POS, and video monitoring applications.

The package includes the base, two side panels (plain or perforated), top cover, front and rear panels, assembly kit, and user manual. The sturdy construction and modular design support various customization options and accessories, making it suitable for a wide range of professional and industrial electronics enclosure requirements.
