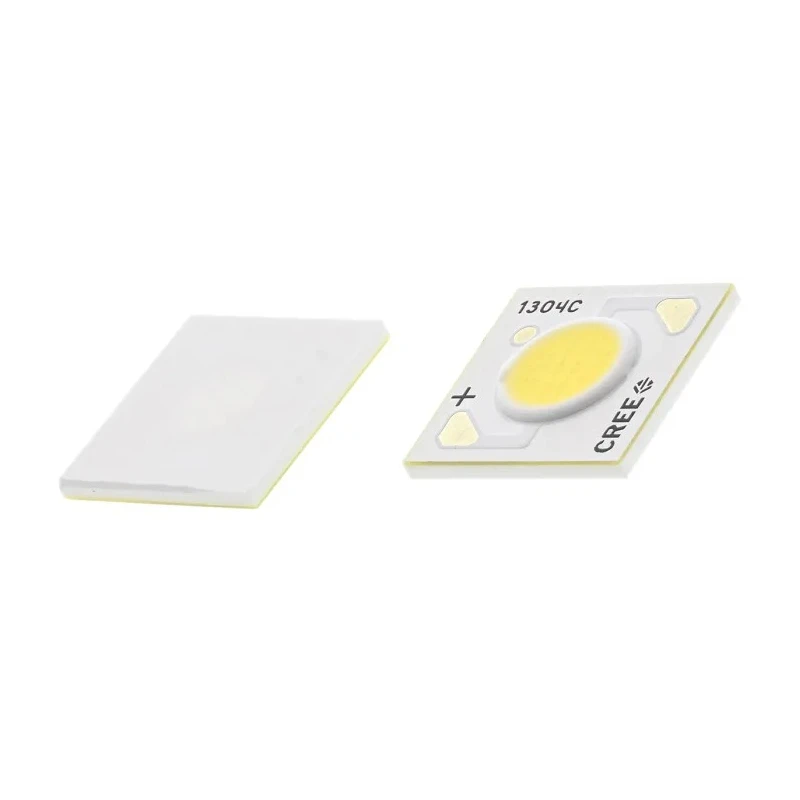

Cree LED XLamp CXA1304 White CoB LED 5000K High Flux Multi-Die LED Array CXA1304
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cree LED |
| Model | CXA1304 |
| Packaging | Tray |
| Series | XLamp CXA1304 |
| Maximum forward current | 1000mA |
| Viewing angle | 115 ° |
| Standards/Approvals | ANSI/UL 8759, REACH, NEMA SSL-3 2011, UL Component (E349212), RoHS |
| Colour Temperature | 5000k |
| LED Colour | White |
| Forward Voltage | 9V |
| Radiant Flux | 10900mW |
| Typical Luminous Flux | 527lm |
| Optical Source Diameter | 6mm |
Key Features
- This LED provides a typical luminous flux of 527 lumens at a 1000mA forward current.
- It features a white color temperature of 5000K with a 115° wide viewing angle.
- The device has a 6mm optical source diameter with a forward voltage of 9V.
- Designed as a tray-packaged, robust LED array for directional and non-directional lighting solutions.
- Conforms to standards including ANSI/UL 8759, REACH, NEMA SSL-3 2011, and RoHS compliance.
- Ideal for lamp retrofit and luminaire designs requiring compact, high efficacy light sources.
- Manufactured in China to Cree's high-quality specifications.
Product Description
Cree LED CXA1304 White CoB LED 5000K is a high-performance multi-die LED array designed for efficient and compact lighting applications. This white LED provides a typical luminous flux of 527 lumens and operates at a maximum forward current of 1000mA, delivering a radiant flux of 10900mW with an optical source diameter of 6mm.
The LED features a 5000K color temperature with a wide 115° viewing angle, making it suitable for both directional and non-directional lighting uses, including retrofit lamps and luminaires. The package is tray-mounted which simplifies integration without the need for reflow soldering and supports robust assembly processes.
Compliance with standards such as ANSI/UL 8759, REACH, NEMA SSL-3 2011, and RoHS ensures reliability and environmental care. The absence of automotive standards indicates this LED is optimized for general lighting applications rather than automotive use.
Provisions such as top-side solder connections and a thermocouple attach point enhance installation and thermal management, making it a favored choice for industrial, commercial, and architectural lighting systems.
This LED delivers high lumen output and efficacy in a small form factor. It is designed for applications where uniform, bright light is essential. The LED’s wide viewing angle increases lighting coverage. Tray packaging facilitates easy handling and mounting.
Meets multiple international safety and environmental standards. Manufactured to high-quality Cree LED specifications in China. Suitable for use in building lighting, laboratory, manufacturing, and commercial projects. Explore more industrial-grade LED Lighting Components at EnvMart for reliable and efficient lighting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CXA1304 LED provides a typical luminous flux of 527 lumens at a forward current of 1000mA.
This model has a color temperature of 5000K, producing a white light output.
The maximum forward current for this LED is 1000mA.
It features a wide viewing angle of 115°.
The forward voltage for the CXA1304 is 9V.
The optical source diameter of this LED is 6mm.
It conforms to several standards including ANSI/UL 8759, REACH, NEMA SSL-3 2011, and RoHS compliance.
This LED is tray-packaged, which simplifies integration without the need for reflow soldering.
It is suitable for both directional and non-directional lighting applications, including retrofit lamps and luminaires.
The radiant flux of this LED is 10900mW.
This model is manufactured in China to Cree's specifications.
It includes top-side solder connections and a thermocouple attach point, which enhance installation and thermal management.
