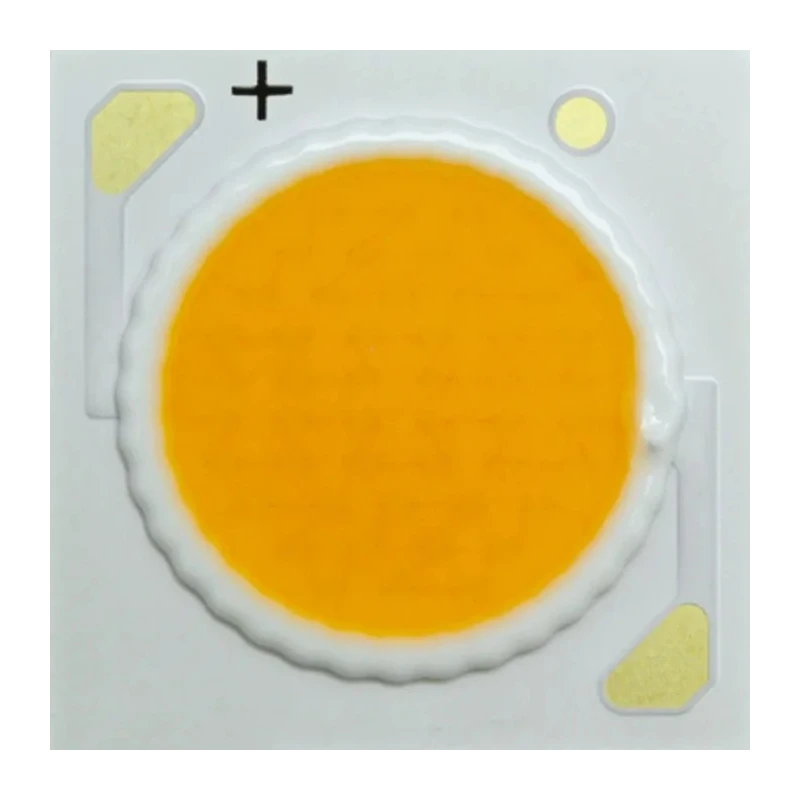

Cree LED XLamp CXA1816 High Flux White CoB LED 4000K, 900mA, 36V, 12mm Optical Source Diameter CXA1816
Specifications
| Country of Origin | India |
|---|---|
| Brand | Cree LED |
| Length | 17.85mm |
| Model | CXA1816 |
| Width | 14mm |
| Series | XLamp CXA1816 |
| Maximum forward current | 900mA |
| Viewing angle | 115 ° |
| Standards/Approvals | ANSI/UL 8752, RoHS, REACH, UL Component (E349212), NEMA SSL-3 2011 |
| Colour Temperature | 4000k |
| LED Colour | White |
| Forward Voltage | 36V |
| Radiant Flux | 38000mW |
| Optical Source Diameter | 12mm |
| Drive current | 900mA (maximum) |
| Binning and characterization | 85°C |
| Cree LED 3.5 V White LED 3535 Surface XLamp XP-C XPCWHT-L1-0000-00C01Brand | Cree LED |
Key Features
- Operates at maximum forward current of 900mA ensuring high luminous output.
- Features a 12mm optical source diameter for focused light emission.
- Delivers radiant flux of 38W providing bright and efficient lighting.
- Has a forward voltage of 36V compatible with standard LED drivers.
- Exhibits a wide viewing angle of 115 degrees for broad illumination.
- Designed with top-side solder connections for easy PCB mounting.
- Supports system-level performance ranging from 1300 to over 2000 lumens.
- Meets ANSI/UL 8752, RoHS, REACH, and NEMA SSL-3 2011 standards ensuring quality and safety.
Product Description
Cree LED CXA1816 White CoB LED (model CXA1816) is a small, uniform emitting surface LED array optimized for both directional and non-directional lighting applications. Operating at 900mA forward current and 36V forward voltage, this high-flux LED delivers a radiant flux of 38,000mW with a 4000K white color temperature and 115° viewing angle. The 12mm optical source diameter provides excellent light focusing while maintaining uniform chromaticity.
Engineered for reliability and performance, the CXA1816 series supports system-level performance between 1300 and 2000+ lumens, making it an ideal choice for lamp retrofit and luminaire designs. Its robust design includes top-side solder connections and a thermocouple attach point for easy integration and thermal management.
This product complies with major industry standards such as ANSI/UL 8752, RoHS, REACH, UL Component certification (E349212), and the NEMA SSL-3 2011 standard flux bins, ensuring high quality and safe operation.
The Cree XLamp CXA1816 is suitable for a variety of industrial, commercial, and residential LED lighting solutions seeking a high-performance, energy-efficient source that can replace traditional halogen, ceramic metal halide, and compact fluorescent lamps.
Operates reliably at maximum forward current of 900mA. Provides high luminous flux with radiant flux of 38W. Features a consistent white color temperature at 4000K. Wide viewing angle of 115° ensures broad illumination. Compact dimensions of 17.85mm length and 14mm width enable versatile mounting.
Compliant with ANSI, UL, RoHS, and REACH standards. Designed for directional and non-directional lighting applications. Supports system-level lumen outputs between 1300 and 2000+ lumens. Includes top-side solder connection and thermocouple point for easy assembly.
Provides an energy-efficient alternative to halogen and CFL technologies. For comprehensive lighting component solutions, browse our full range of Cree LED products and LED Lighting Components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the CXA1816 is 900mA, ensuring high luminous output.
The CXA1816 delivers a radiant flux of 38,000mW, providing bright and efficient lighting.
This model operates at a forward voltage of 36V, which is compatible with standard LED drivers.
The viewing angle of the CXA1816 is 115 degrees, allowing for broad illumination.
The dimensions of this model are 17.85mm in length and 14mm in width.
The CXA1816 emits a white light with a color temperature of 4000K.
This LED complies with ANSI/UL 8752, RoHS, REACH, UL Component certification (E349212), and NEMA SSL-3 2011 standards.
The CXA1816 is designed for both directional and non-directional lighting applications, making it suitable for various industrial, commercial, and residential lighting solutions.
The 12mm optical source diameter of the CXA1816 provides excellent light focusing while maintaining uniform chromaticity.
This model supports system-level performance ranging from 1300 to over 2000 lumens.
The CXA1816 is designed with top-side solder connections for easy PCB mounting.
The country of origin for the CXA1816 is India.
