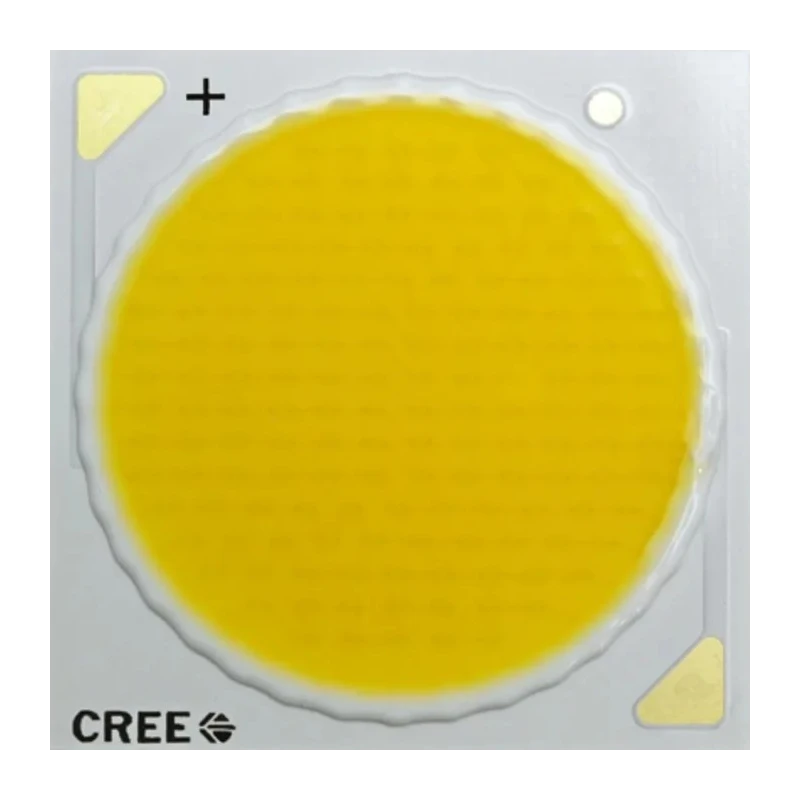

Cree LED White XLamp High Luminous Flux 7485lm 5000k Colour Temperature LED 36V Forward Voltage CXA3050-0000-000N0HX250F

Free Delivery in India | Lowest Global Shipping Charges

Cree LED White XLamp High Luminous Flux 7485lm 5000k Colour Temperature LED 36V Forward Voltage CXA3050-0000-000N0HX250F

Name: Cree LED White XLamp High Luminous Flux 7485lm 5000k Colour Temperature LED 36V Forward Voltage CXA3050-0000-000N0HX250F
Brand: Cree LED
SKU: 243651
Price: 25.36 USD
Availability: InStock



Category LED Lighting Components Brand Cree LED Condition New

Specifications

Country of Origin	China
Brand	Cree LED
Length	23mm
Model	CXA3050-0000-000N0HX250F
Width	27.35mm
Series	XLamp CXA3070
Maximum forward current	2500mA
Viewing angle	115 °
Standards/Approvals	REACH, NEMA SSL-3 2011, RoHS, UL Component (E349212)
Colour Temperature	5000k
LED Colour	White
Forward Voltage	36V
Radiant Flux	100000mW
Typical Luminous Flux	7485lm
Optical Source Diameter	23mm
Drive current	2500mA (maximum)
Binning and characterization	85°C

Key Features

Delivers a typical luminous flux of 7485 lumens offering high brightness.
Features a 23mm diameter optical source for uniform light emission.
Operates at a maximum forward current of 2500mA with a forward voltage of 36V.
Includes a wide 115° viewing angle ensuring broad light dispersion.
Equipped with top-side solder connections and thermocouple attach point for easy integration.
Designed to replace conventional halogen, ceramic metal halide, and compact fluorescent lighting.
Manufactured under stringent quality control with consistent color binning at 85°C operation.
Packaged and shipped new from China as the country of origin.

Product Description

Cree LED CXA3050-0000-000N0HX250F XLamp CXA3070 is a premium white LED lighting component designed to deliver high lumen output and efficiency with a colour temperature of 5000k. This LED array integrates multiple dies within a single package to provide a uniform luminous surface with 23mm optical source diameter.

Engineered for both directional and non-directional lighting applications, the CXA3050 eliminates the need for complex reflow soldering and enables simplified lighting system designs that reduce overall costs. It offers system-level performances up to 9000 lumens with a typical luminous flux of 7485lm at a drive current of 2500mA and a forward voltage of 36V.

The unit features a 115° wide viewing angle with a uniform chromaticity profile, suitable for commercial, industrial, and architectural lighting. It meets several industry standards and certifications such as REACH, NEMA SSL-3 2011, RoHS, and UL certification to assure compliance, safety, and reliability.

The LED array includes top-side solder connections along with a thermocouple attach point for straightforward thermal management and assembly. Consistent binning and characterization at 85°C contribute to its reliable color and flux performance, making it an excellent replacement for older lighting technologies like halogen, ceramic metal halide, and compact fluorescent lamps.

Delivers typical luminous flux of 7485 lumens. Maximum forward current of 2500mA ensuring bright output. 23mm optical source diameter optimized for uniform light emission. Color temperature fixed at 5000k ideal for daylight white light.

Wide 115° viewing angle for broad illumination coverage. RoHS and UL compliant for safe and eco-friendly use. Thermocouple attach point supports effective thermal solutions. Manufactured in China with strict quality standards.

This product is ideal for use in industrial, commercial, and architectural lighting applications requiring high efficacy, long life, and consistent color quality. The Cree LED CXA3050-0000-000N0HX250F is available for immediate incorporation into LED array modules or custom lighting designs. Explore the wide range of LED Lighting Components at EnvMart for more lighting solutions tailored to your project needs.
