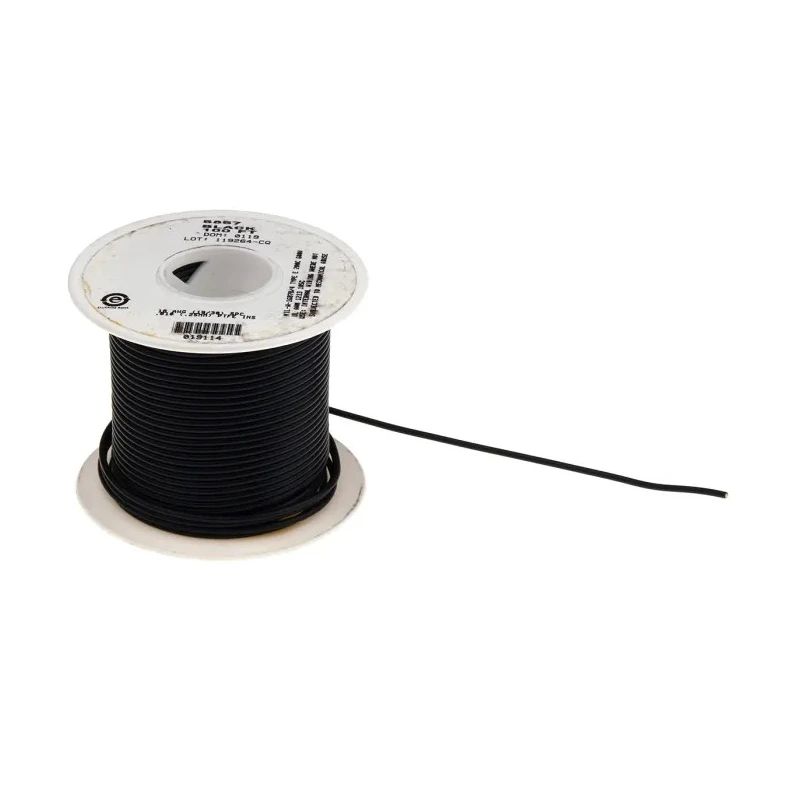

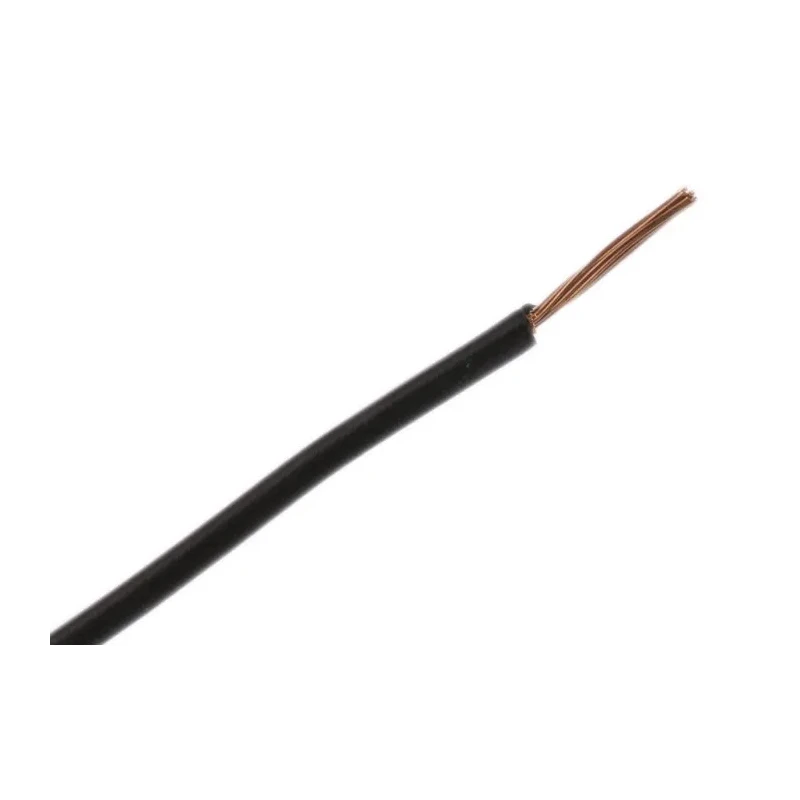

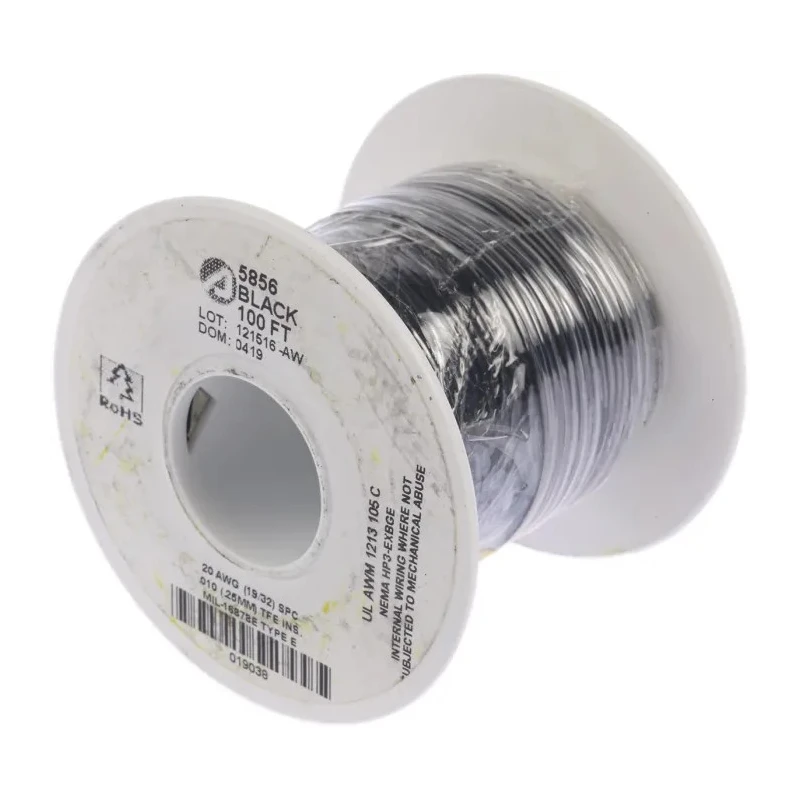

Alpha Wire Hook Up Wire TEFLON Series Black 20 AWG Silver Plated Copper 600V 200°C 30m 5856 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| Model | 5856 BK005 |
| Cable Length | 30m |
| Series | Hookup Wire TEFLON |
| Outside diameter | 1.47mm |
| Maximum Operating Temperature | 200°C |
| Conductor Material | Silver Plated Copper |
| Sub Type | Type E |
| Cable Type | Hookup |
| Minimum Operating Temperature | -60°C |
| Jacket Material | Polytetrafluoroethylene |
| Standards/Approvals | MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1 |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 20AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.20mm |
| Size of Strands | 0.20mm |
Key Features
- The conductor is silver-plated copper for enhanced durability and corrosion resistance.
- Rated for 600 volts with a maximum operating temperature of 200°C and minimum of -60°C.
- The jacket is made from flame retardant polytetrafluoroethylene (PTFE), providing excellent thermal and chemical resistance.
- Conforms to standards MIL-W-16878/4, NEMA HP-EXBBB, UL1213, and passes VW-1 fire test.
- This hook-up wire is flexible with a bend radius ten times the cable diameter, suitable for complex assemblies.
- Unterminated cable ideal for soldering, crimping, or direct circuit board connections.
- Ideal applications include medical technology, electrical motors, and HVAC systems.
- The 30-meter length provides ample wire for custom installations and repairs.
Product Description
Alpha Wire 5856 BK005 Hook Up Wire TEFLON Series Black is a premium 20 AWG electrical wire designed for demanding industrial environments. Featuring a silver-plated copper conductor with 19 strands of 0.20 mm diameter cores, this wire combines strength and superior conductivity. It has an outer diameter of 1.47 mm and a cable length of 30 meters.
The wire's insulation is made from polytetrafluoroethylene (PTFE), renowned for its excellent flame-retardant properties and high thermal resistance up to 200°C, making it suitable for harsh conditions including medical, HVAC, and motor applications. Its operating temperature range extends from -60°C to 200°C, ensuring reliable performance in extreme situations.
Designed to meet MIL-W-16878/4, NEMA HP-EXBBB, UL1213, and VW-1 standards, this hookup wire ensures safety and compliance for industrial installation needs. The wire’s silver-plated copper conductor resists corrosion and maintains durability under mechanical stress, with a maximum pull tension of 9.6 lbs to prevent snapping.
With a bend radius ten times the cable diameter, the wire offers excellent flexibility for complex wiring assemblies. It arrives unterminated, allowing end-users to easily solder or crimp connections as required for custom electronic setups or circuit board integration.
The conductor is silver-plated copper providing durability and corrosion resistance. Rated for 600 volts and operating temperatures from -60°C to 200°C. Polytetrafluoroethylene (PTFE) jacket ensures flame retardant and chemical resistance.
Certified with MIL-W-16878/4, NEMA HP-EXBBB, UL1213, and VW-1 fire standards. Flexible design with a ten times cable diameter bend radius. Suitable for medical technology, electrical motors, and HVAC applications. Unterminated wire for custom soldering and crimping solutions.
30 meters length for versatile industrial wiring projects.
This Alpha Wire product is ideal for industrial, laboratory, electrical, and HVAC applications where long-lasting, high-temperature Hook Up Wire is essential. Browse other high-quality wires and cables in the EnvMart catalog for comprehensive wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this hook-up wire is 200°C.
This model is rated for 600 volts.
The conductor is made from silver-plated copper, which enhances durability and corrosion resistance.
The wire has a length of 30 meters, providing ample material for various installations.
It conforms to standards MIL-W-16878/4, NEMA HP-EXBBB, UL1213, and passes the VW-1 fire test.
The minimum operating temperature is -60°C.
The outer diameter of this wire is 1.47 mm.
This model offers excellent flexibility with a bend radius ten times the cable diameter, making it suitable for complex assemblies.
It is suitable for applications in medical technology, electrical motors, and HVAC systems.
The conductor consists of 19 strands, each with a diameter of 0.20 mm.
The jacket is made from polytetrafluoroethylene (PTFE), which provides excellent thermal and chemical resistance.
This hook-up wire is unterminated, allowing for custom soldering or crimping as needed.
