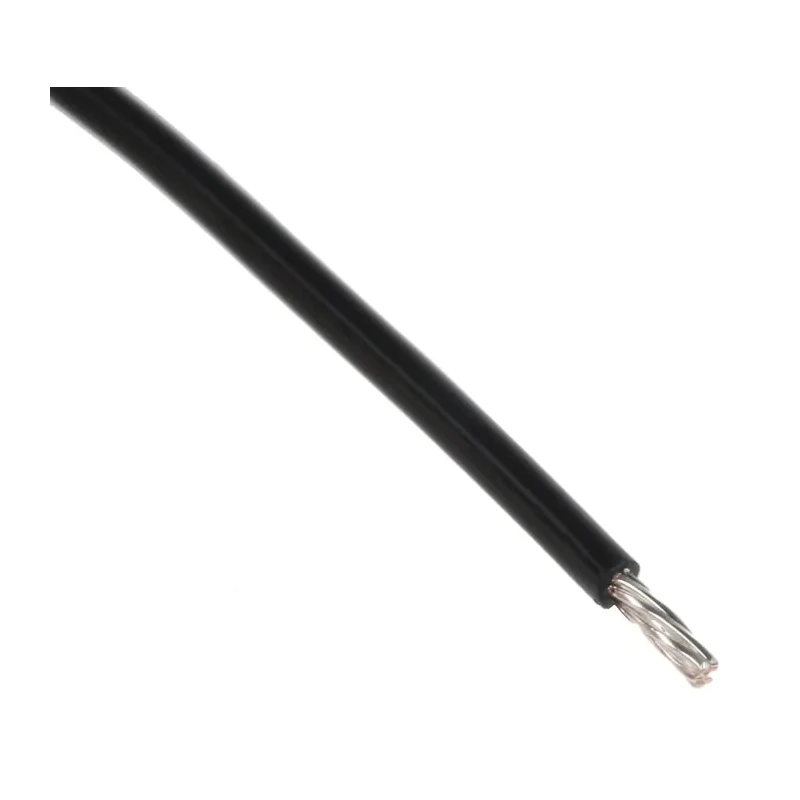

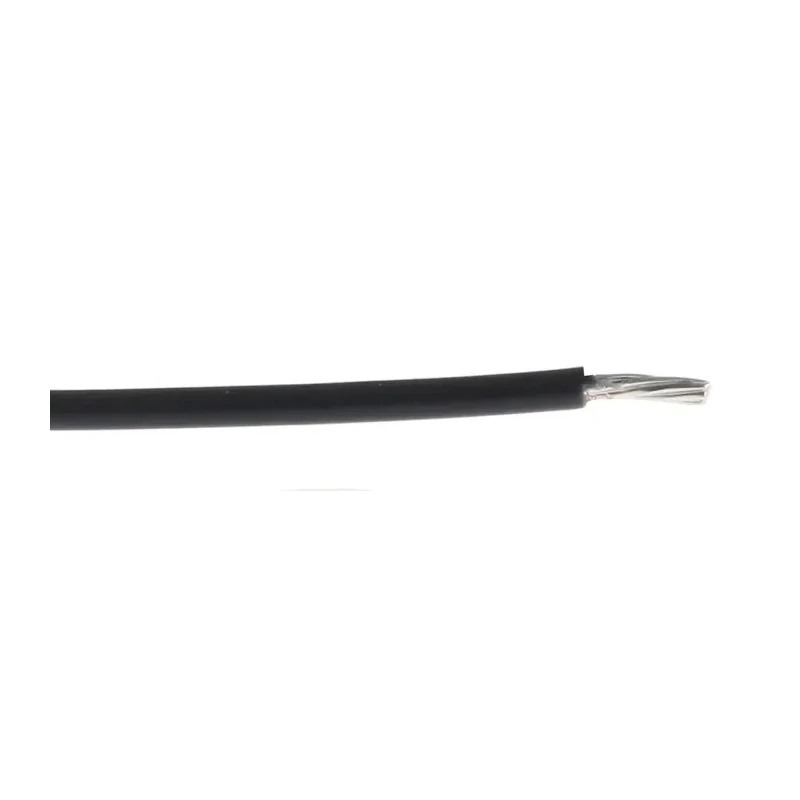

Alpha Wire Hook Up Wire TEFLON Series Black 22 AWG, 7x0.25 mm Strands, 30 m, 600 V, TFE Insulation 5855/7 BK005

Alpha Wire 5855/7 BK005 Hook Up Wire from the TEFLON Series is a high-performance 22 AWG cable designed for demanding industrial applications. It features 7 strands of 0.25 mm silver-plated copper conductors to ensure excellent conductivity and resistance to corrosion. The wire is insulated with polytetrafluoroethylene (PTFE), providing a durable and flame-retardant black jacket.

This hook-up wire is rated for 600 V with a broad temperature operating range from -60°C to 200°C, allowing its use in harsh environments. Its outside diameter is 1.27 mm with a 0.3 mm thick insulation wall, making it flexible and robust.

The wire complies with stringent standards such as MIL-W-16878/4, NEMA HP-EXBBB, UL1213, and VW-1, ensuring safety and reliability. The flexible nature and flame-retardant properties make this wire ideal for internal electronic connections, control panels, switchboards, domestic appliances, and even food manufacturing equipment.

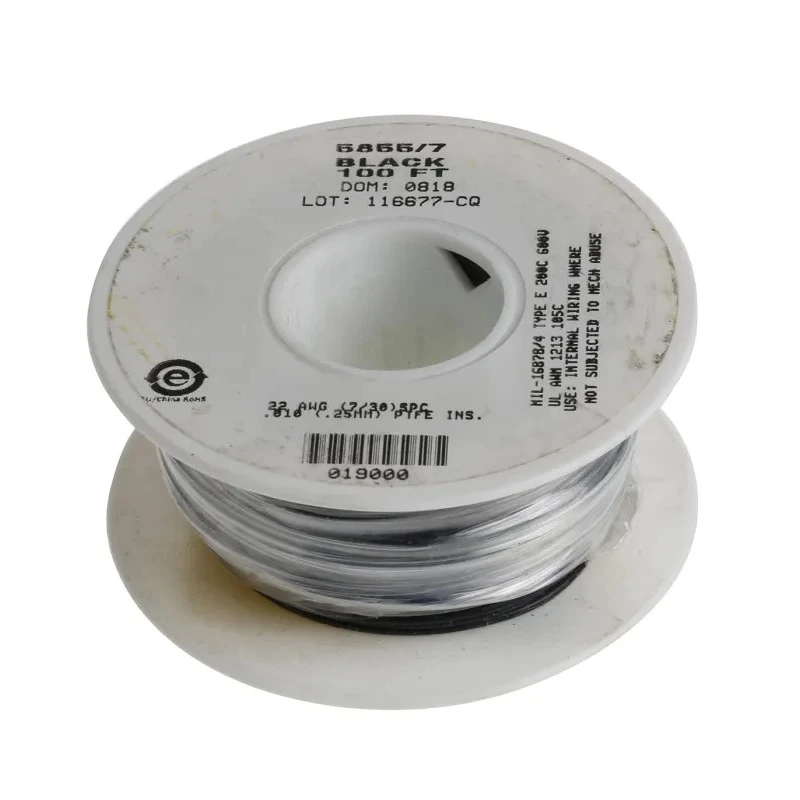

The 30 meter cable length offers convenient cut-and-fit use in varied applications. The single-core unshielded design simplifies stripping and termination operations. The wire's chemical and abrasion resistance provide longevity even under tough industrial conditions.

The wire features silver-plated copper conductors for superior corrosion resistance. It has a polytetrafluoroethylene (TFE) jacket providing high abrasion resistance and chemical durability. Rated for 600 volts and can operate safely between -60°C and 200°C.

The cable has an outside diameter of 1.27 mm and 0.3 mm insulation wall thickness. Meets multiple standards including MIL-W-16878/4, NEMA HP-EXBBB, UL1213, and VW-1 flame retardancy. Flexible with a bend radius 10 times the cable diameter for easy installation.

Ideal for electronics internal wiring, switchboards, food manufacturing, and domestic appliance applications. Easy to strip and terminate due to unshielded single-core design.

This Alpha Wire Hook Up Wire from the TEFLON Series is suited for industrial, electronics manufacturing, HVAC, and commercial electrical wiring tasks. Explore more high-quality wires and cables in the EnvMart Electronics & Electricals category.
