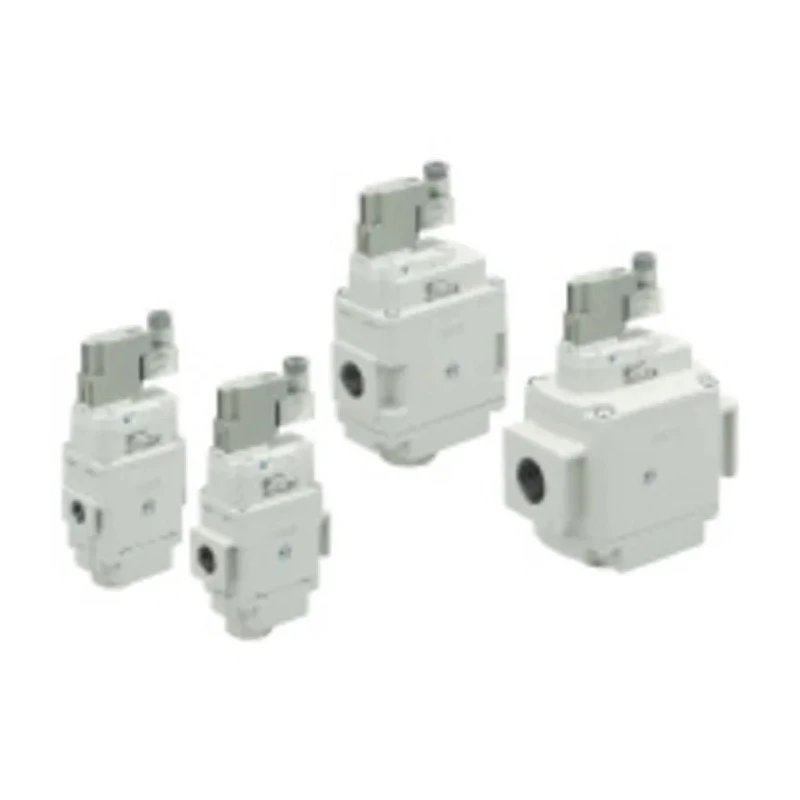

SMC Pneumatic Solenoid Start-Up Valve G Series AV 24V dc Single Solenoid 0.45W Power AV2000-F02-5YOC-A

The SMC AV2000-F02-5YOC-A Pneumatic Solenoid Start-Up Valve in the AV series is a high-quality pneumatic valve designed for industrial and manufacturing applications requiring precise air flow control at low speeds. Operating at 24V dc with a single solenoid configuration, it provides an efficient and energy-saving solution for gradually increasing initial air pressure in pneumatic systems.

This valve features a rugged die cast aluminium body with nitrile rubber (NBR) seals ensuring durability and leak resistance under various operating conditions. The 1/4 inch threaded ports conform to G connection standards with female port gender, supporting up to 1 Mpa maximum operating pressure and pilot pressures ranging from 0.2 to 1 MPa, making it suitable for a wide range of pneumatic setups.

Its maximum flow rate of 552 L/min and enhanced flow rate characteristics - up to 2.3 times improvement - enable effective air supply management. The valve consumes a minimal 0.45W of solenoid power, contributing to energy savings by preventing unnecessary air flow when the main valve is shut off.

Compact in size with 147.5 mm length, 66 mm height, and 40 mm width, the valve is mounted as a standalone unit and electrically connected via a DIN connector. It includes an integrated silencer to reduce noise pollution and simplify installation processes.

This CE compliant product is manufactured in Japan, reflecting stringent quality standards. Its three-position configuration enhances versatility in controlling pneumatic flow for applications including industrial automation, fluid power systems, and pneumatic tools.

Operates at 24V dc with a solenoid power consumption of 0.45 watts. Features threaded 1/4 inch G standard ports with female gender connections. Supports maximum operating pressure of 1 Mpa and pilot pressure range from 0.2 to 1 MPa.

Constructed with a die cast aluminium body and nitrile rubber (NBR) seals for durability. Offers maximum flow rate of 552 L/min with improved flow rate characteristics up to 2.3 times (C[dm3/(s·bar)] 9.2). Designed with DIN electrical connection and compact dimensions of 147.5 mm length, 66 mm height, and 40 mm width.

Suitable for industrial pneumatic applications requiring gradual initial pressure rise and energy saving through no air flow when the main valve is switched. Includes integrated silencer for reduced noise and easier installation.

Complies with CE standards and is manufactured in Japan.
