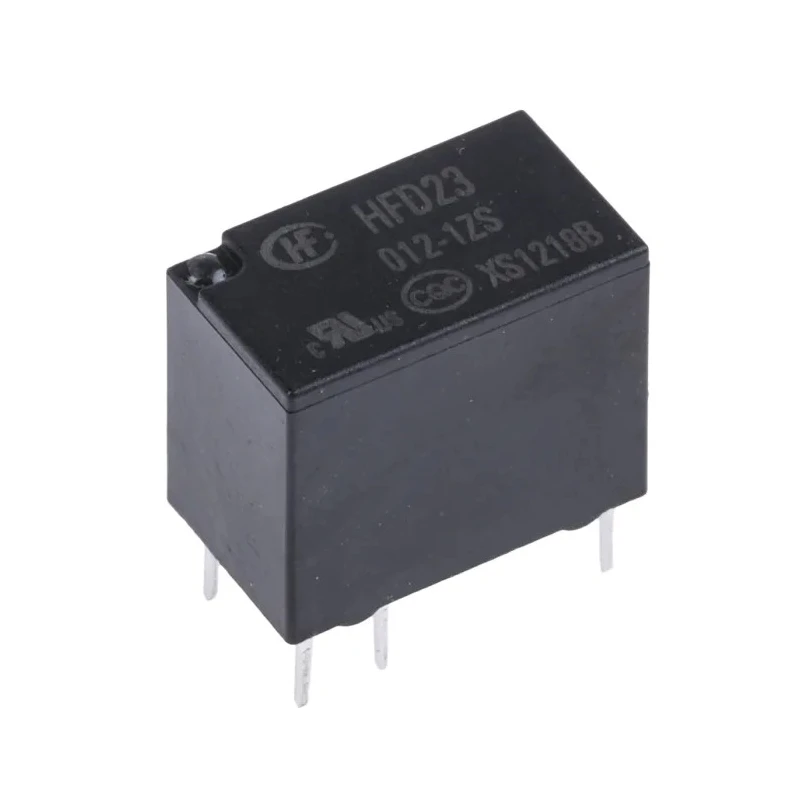

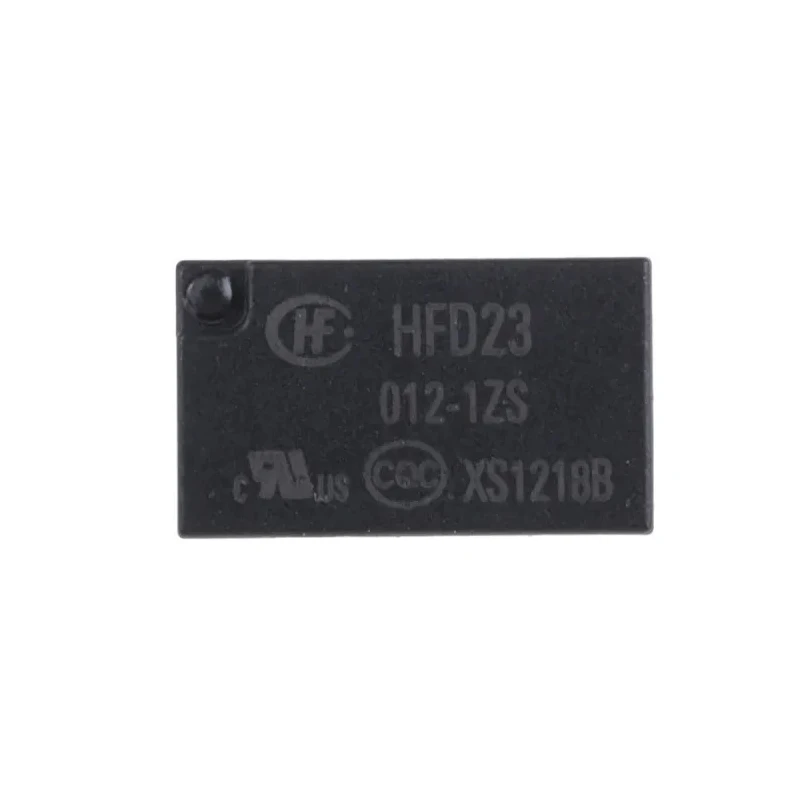

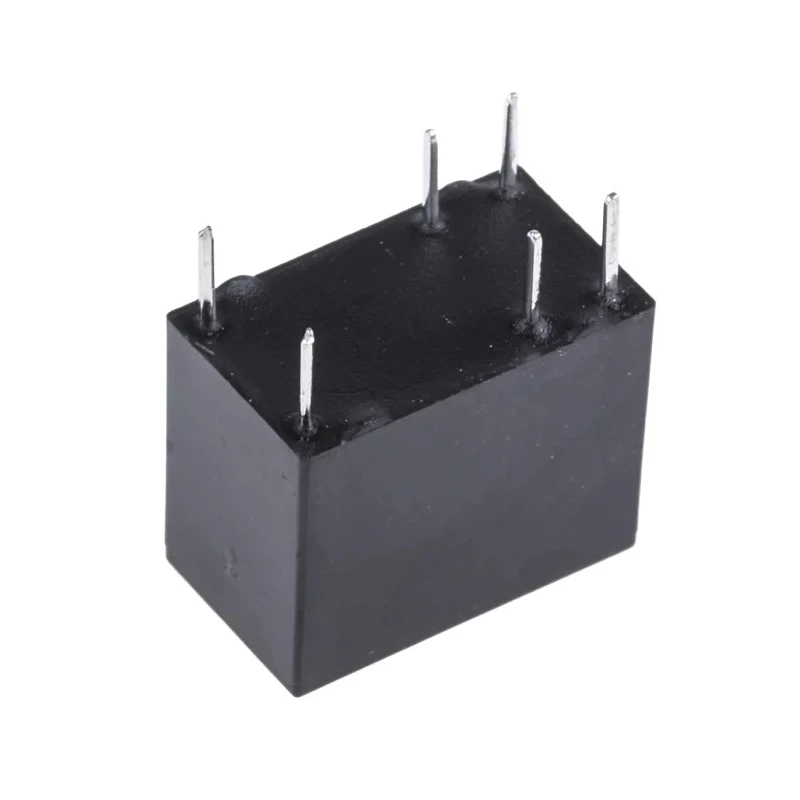

Hongfa Europe GMBH PCB Signal Relay 12V DC Coil, 2A Switching Current, SPDT Contact Configuration HFD23/012-1ZS
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 10mm |
| Length | 12.5mm |
| Model | HFD23/012-1ZS |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated Silver Nickel |
| Series | HFD23 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 405Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 50mW |
| Switching Power | 60W |
Key Features
- Operates with a 12V DC coil voltage for reliable actuation.
- SPDT (Single Pole Double Throw) contact configuration supports diverse circuit functions.
- Switching current rating of 2A suitable for moderate load control.
- Compact PCB mount design with dimensions 12.5mm length, 7.5mm width, and 10mm height.
- High switching power capacity of 60W ensures endurance in demanding environments.
- Operates safely between -30°C and 70°C service temperature range.
- Gold plated silver nickel contact material provides low contact resistance and durability.
- Low coil power consumption of 50mW enhances energy efficiency.
Product Description
Hongfa Europe GMBH HFD23/012-1ZS PCB Signal Relay is a high-quality single pole double throw (SPDT) non-latching relay designed for PCB mounting applications. Featuring a 12V DC coil and a 2A switching current capacity, this relay offers efficient control and reliable switching performance in electronic and electrical systems.
This miniature relay measures 12.5mm in length, 7.5mm in width, and 10mm in height, making it compact and suitable for space-saving circuit designs. The relay employs gold plated silver nickel contacts that ensure low contact resistance (100mΩ) and excellent electrical endurance, suitable for industrial and commercial electronic devices.
The relay supports switching voltages of up to 125V AC and 60V DC, with a switching power rating of 60W. It functions effectively within a broad temperature range from -30°C to 70°C, offering high mechanical endurance and vibration resistance for extended lifecycle and reliability.
Additional features include low coil power consumption at 50mW and a coil resistance of 405Ω, ensuring energy-efficient operation. The relay meets RoHS standards, reflecting its compliance with environmental regulations.
This signal relay is ideal for use in control devices, automotive electronics, household appliances, industrial machinery, and telecommunication equipment, providing safe and effective switching operations.
Operates at 12V DC coil voltage for reliable actuation. SPDT contact configuration allows versatile circuit control. Supports switching current of up to 2A for moderate loads. Compact PCB mount design saves board space. Gold plated silver nickel contacts for durable, low-resistance switching.
Wide operating temperature range from -30°C to 70°C for industrial use. Low coil power usage of 50mW enhances energy efficiency. Isolation voltage rated at 10KV between coil and contacts for safety. Complies with RoHS directives for environmental safety.
Choose Hongfa Europe GMBH PCB Signal Relay for dependable, high-performance switching in electronic control applications. Browse our extensive selection of relays and contactors at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 2A, making it suitable for moderate load control in various applications.
The dimensions of this relay are 12.5mm in length, 7.5mm in width, and 10mm in height, allowing for compact PCB mounting.
The relay operates with a coil voltage of 12V DC, ensuring reliable actuation in electronic circuits.
It features a Single Pole Double Throw (SPDT) contact configuration, which supports diverse circuit functions.
The relay supports a maximum switching voltage of 125V AC and 60V DC, providing versatility in various applications.
It operates effectively within a temperature range of -30°C to 70°C, suitable for industrial environments.
The coil power consumption is low at 50mW, which enhances energy efficiency during operation.
The contacts are made from gold plated silver nickel, which provides low contact resistance and durability.
The isolation voltage is rated at 10KV between the coil and contacts, ensuring safety during operation.
Yes, it complies with RoHS directives, reflecting its adherence to environmental regulations.
The contact resistance is rated at 100mΩ, which contributes to its efficient electrical performance.
This relay is suitable for use in control devices, automotive electronics, household appliances, industrial machinery, and telecommunication equipment.
