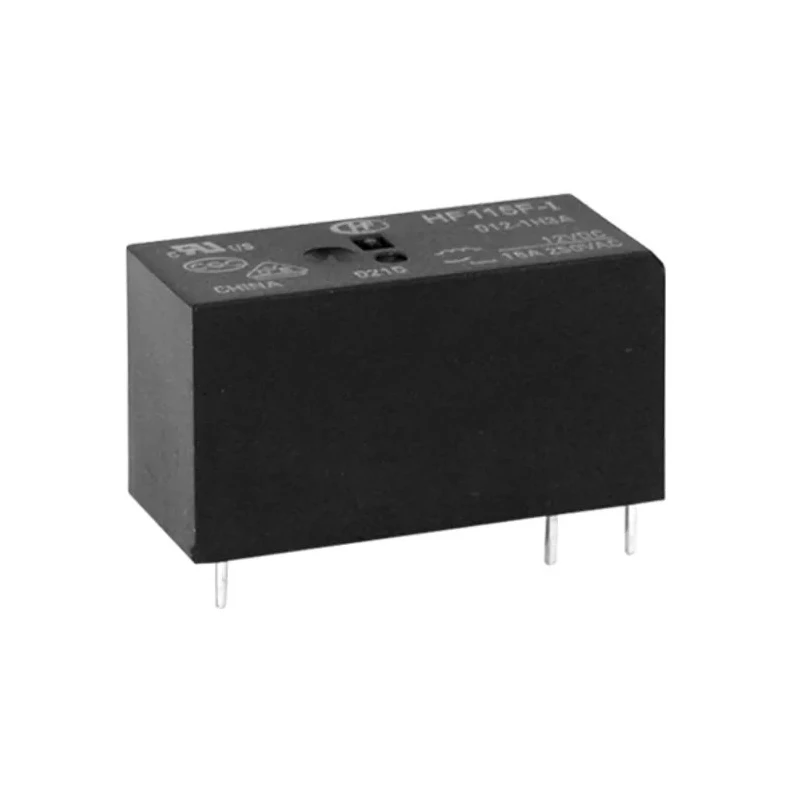

Hongfa Europe GMBH PCB Power Relay 12V dc Coil 16A Switching Current SPST HF115F-I/012-1H3AF(610)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.7mm |
| Length | 29mm |
| Model | HF115F-I/012-1H3AF(610) |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF115F-I |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V |
| Coil Power | 400mW |
Key Features
- Designed with a low mounting height of 15.7mm suitable for PCB installation.
- Switching AC voltage up to 440V and DC voltage up to 300V for versatile applications.
- Coil resistance of 360Ω and coil power rated at 400mW for efficient operation.
- Durability rated up to 10 million cycles ensuring prolonged service life.
- Contact material composed of silver alloy with contact resistance of 100mΩ for reliable conductivity.
- Operating temperature range from -40°C to 85°C suitable for harsh environments.
- Meets RoHS environmental standards ensuring compliance and safety.
- Plastic sealed and flux proofed construction provides enhanced protection and reliability.
Product Description
Hongfa Europe GMBH HF115F-I/012-1H3AF(610) PCB Power Relay is a high-performance subminiature relay designed for power switching with a 12V DC coil and a maximum switching current of 16A in SPST contact configuration.
It features a compact design with a low mounting height of 15.7mm, making it suitable for printed circuit board (PCB) assembly and space-constrained applications. The relay supports switching AC voltages up to 440V and DC voltages up to 300V, enabling versatile use in diverse electrical circuits.
The coil resistance is specified at 360Ω with coil power consumption of 400mW, promoting efficient energy use. Its contact material is silver alloy, which ensures low contact resistance measured at 100mΩ, providing reliable and consistent connectivity.
Operating temperature ranges from -40°C to 85°C allow this relay to function effectively in demanding environmental conditions. The device complies with RoHS directives, confirming its environmentally friendly manufacturing standards.
The relay is plastic sealed and flux proofed, enhancing its durability and reliability even in harsh industrial environments. It boasts a long mechanical and electrical lifespan rated at 10 million cycles.
Low mounting height of 15.7mm enables compact PCB installation. Switching capability of 16A supports substantial electrical loads. Silver alloy contacts reduce resistance and improve performance. Wide operating temperature range from -40°C to 85°C.
RoHS compliant ensuring environmental safety. Plastic sealed and flux proofed for durability in harsh conditions. Ideal for automotive engine control, household and industrial appliances, medical, and telecommunication equipment.
This Hongfa power relay is designed for industrial, laboratory, manufacturing, and automotive applications where reliable switching and long-term durability are essential. It is an optimal choice for engineers requiring compact and robust relays for PCB integration.
Explore the full range of Power Relays and electronic components available for your industrial automation and electrical control needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this relay is 16A.
The coil voltage rating for this model is 12V DC.
The dimensions of this relay are 29mm in length, 12.7mm in width, and 15.7mm in height.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The operating temperature range for this relay is from -40°C to 85°C.
This relay is designed for PCB mounting.
The contact material of this relay is silver alloy.
The coil resistance for this relay is 360Ω.
This relay can switch AC voltages up to 440V and DC voltages up to 300V.
The contact resistance of this relay is 100mΩ.
This relay is rated for up to 10 million cycles, indicating its durability.
Yes, this relay meets RoHS environmental standards, ensuring compliance and safety.
