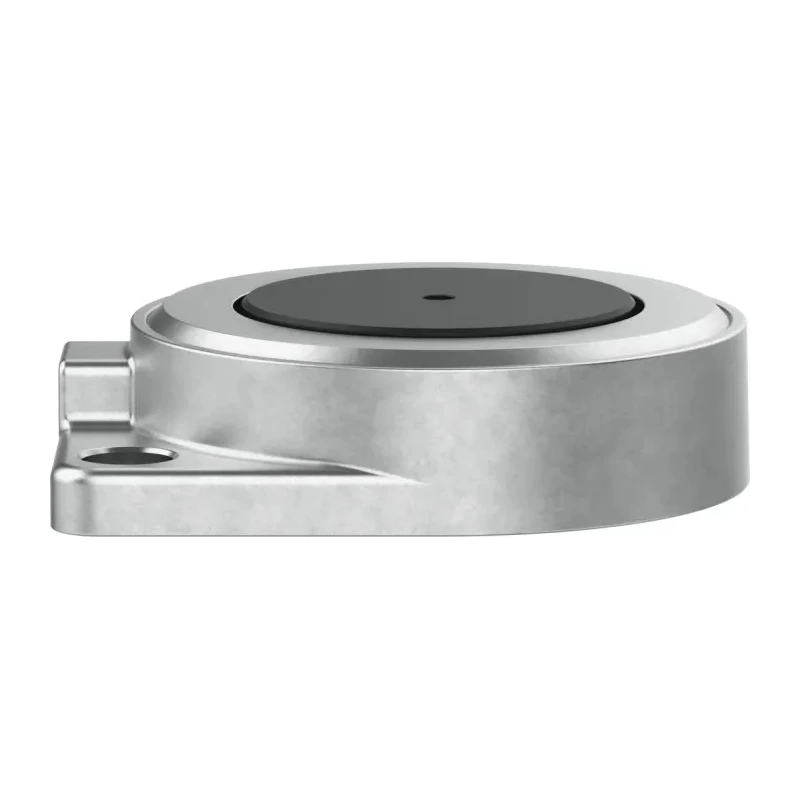

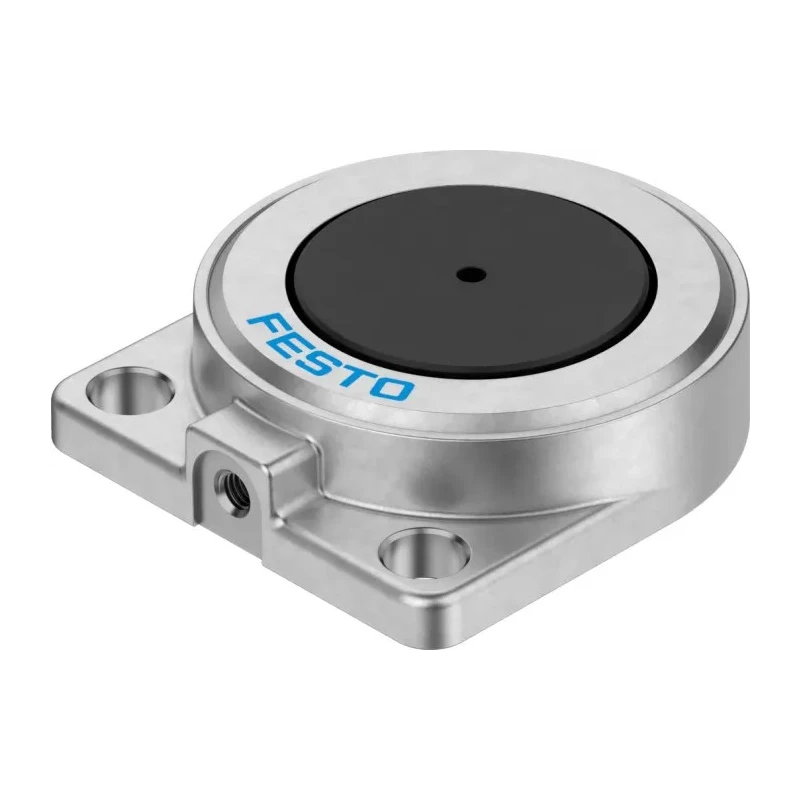

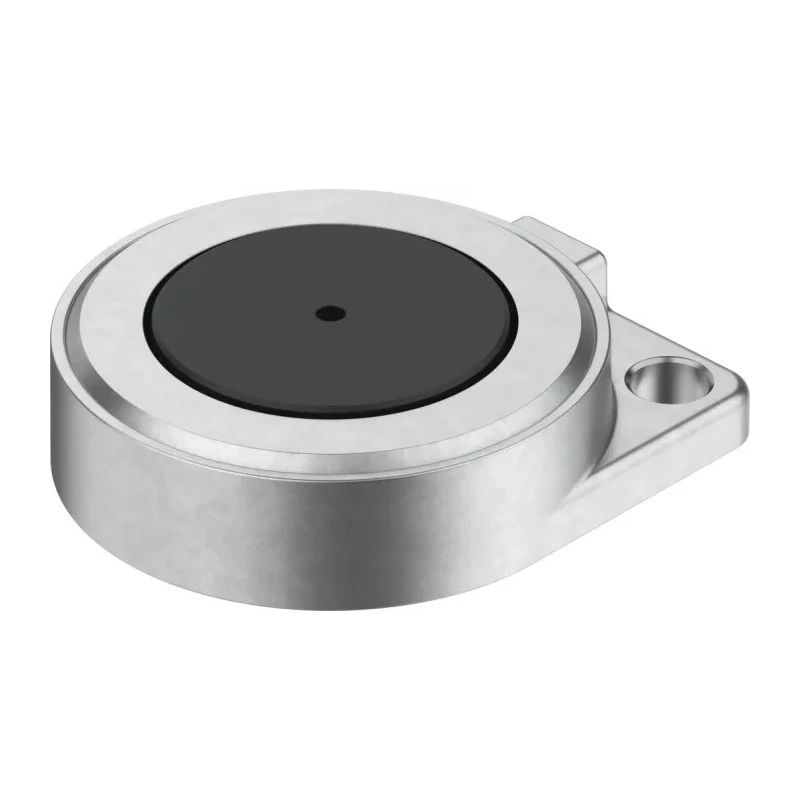

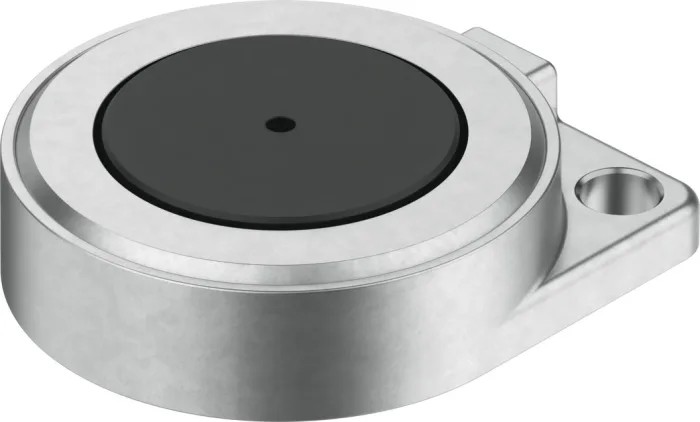

Festo Pneumatic Clamp with 4mm Stroke and 20mm Clamping Surface Diameter EV-20-4

Festo EV-20-4 pneumatic clamp is an advanced clamping module designed for various precise automation applications, featuring a 4mm stroke and a 20mm clamping surface diameter operating at a maximum pressure of 0.6 MPa. Constructed from robust die-cast aluminium, it combines durability with a lightweight design of only 19 grams, optimized for space efficiency in industrial setups.

This clamp uses a membrane made from TPE-U (PU), providing excellent resistance to wear and ensuring long service life. The device connects via an M3 pneumatic fitting, widely compatible with standard automation systems, making it versatile for various machinery configurations.

It complies with ISO 8573-1:2010 compressed air quality standards and LABS (PWIS) conformity per VDMA24364-B1/B2-L, ensuring that it does not contaminate sensitive electronic components, vital for electronics manufacturing and robotic assembly lines.

The device functions reliably in ambient temperatures ranging from -10°C to 40°C, suitable for industrial, laboratory, robotics, and manufacturing environments requiring precise and repeatable clamping operations.

This clamp operates at a maximum pressure of 0.6 MPa, ensuring reliable performance. It features a lightweight die-cast aluminum construction weighing only 19 grams. The clamp supports a standard M3 pneumatic connection for versatile installation.

The membrane is made from durable TPE-U (PU) material for wear resistance. Compatible with compressed air conforming to ISO 8573-1:2010 standards for optimal operation. Conforms to LABS (PWIS) standards, making it suitable for sensitive electronics applications.

Operates effectively in ambient temperatures ranging from -10°C to 40°C. Its compact design with single-acting mode enhances operational simplicity and adaptability.

This pneumatic clamp is ideal for automated assembly lines, robotics applications requiring stable component holding, and electronics manufacturing where contamination-free fixtures are essential. Its compatibility with international standards ensures dependable and efficient use across diverse industrial environments.
