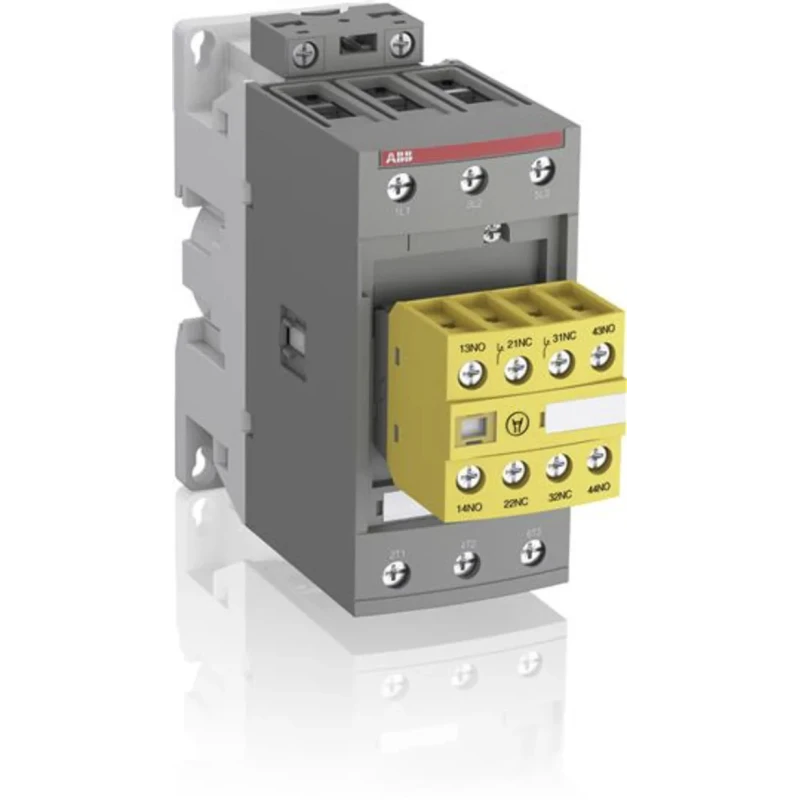

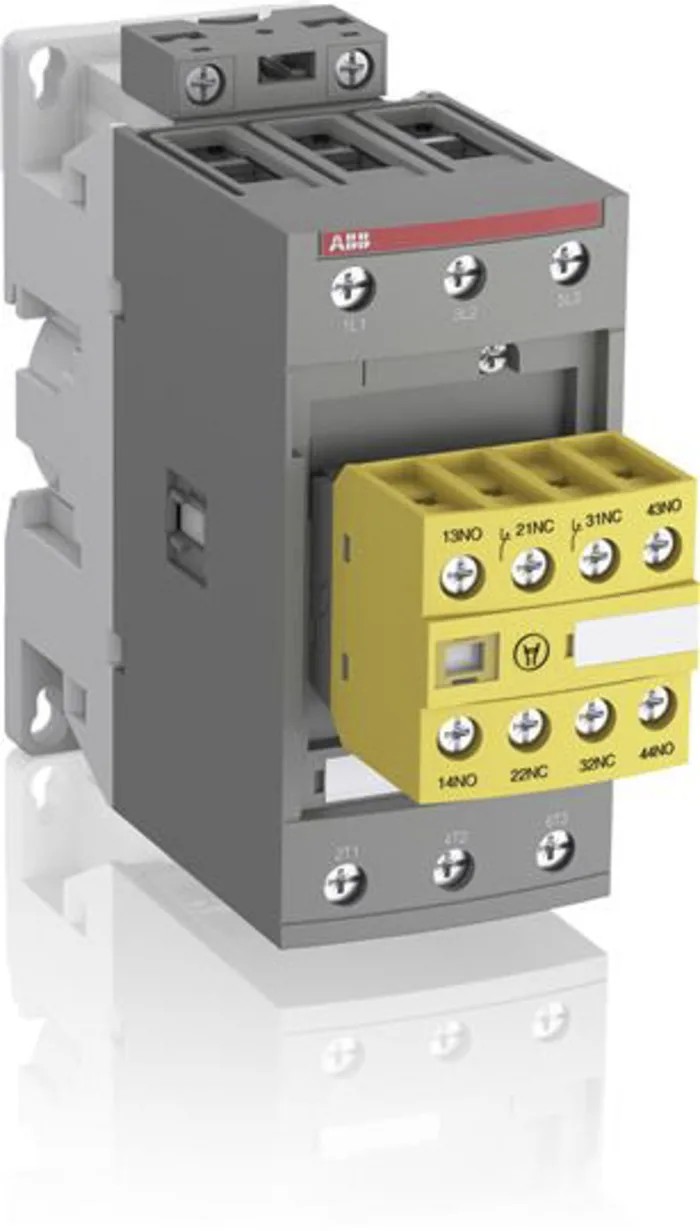

ABB Jokab 3-Pole Safety Contactor with 24-60V AC Coil Voltage, 70A, 22kW Power Rating, DIN 1SBL347082R1122 AFS40-30-22-11
Specifications
| Country of Origin | France |
|---|---|
| Brand | ABB Jokab |
| Function | Safety |
| Length | 144mm |
| Model | 1SBL347082R1122 AFS40-30-22-11 |
| Depth | 144mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | AFS |
| Power Rating | 22kW |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | EN, IEC, UL |
| Contact Voltage | 600V ac |
| Coil Voltage | 24, 60V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 70A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 60V ac |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3 |
Key Features
- Operates with coil voltage range from 24 to 60 volts AC.
- Rated for a contact current of 70 amps and power rating of 22 kW at 60 V AC.
- Features a 3-pole configuration with 3 normally open contacts.
- Includes four auxiliary contacts configured as 2 normally open and 2 normally closed.
- Designed for DIN rail mounting to simplify installation.
- Operates within temperature range of -40°C to +70°C.
- Equipped with screw terminal connections supporting wires from 0.75 mm² to 35 mm².
- Complies with EN, IEC, and UL standards for safety and reliability.
Product Description
ABB Jokab model 1SBL347082R1122 AFS40-30-22-11 is a high-quality 3-pole safety contactor engineered for industrial automation and machine safety applications. It operates with a flexible coil voltage range of 24 to 60 volts AC and supports contact currents up to 70 amps, providing reliable operation for control circuits with power ratings up to 22 kW at 60 volts AC.
This contactor features a durable DIN rail mounting design ensuring convenient and secure installation in industrial control panels. The device includes four auxiliary contacts configured as 2 normally open and 2 normally closed, enhancing monitoring and safety functions in demanding environments.
Designed to operate efficiently across a broad temperature range, from -40°C to +70°C, the ABB Jokab safety contactor is fitted with screw terminal connections accommodating flexible and rigid wires from 0.75 mm² up to 35 mm². It complies with international standards EN, IEC, and UL, assuring operational safety and reliability.
Additional benefits include built-in surge suppression to protect control circuits against voltage spikes and mirrored mechanically linked contacts for enhanced safety. The contactor is suitable for use in machinery control, electrical safety circuits, and industrial automation systems requiring high-performance, reliable switching devices.
Operates with coil voltage range from 24 to 60 volts AC. Rated for a contact current of 70 amps and power rating of 22 kW at 60 V AC. Durable 3-pole configuration with 3 normally open contacts. Includes four auxiliary contacts configured as 2 NO and 2 NC for precise control functions.
Designed for DIN rail mounting to facilitate easy panel installation. Operates over a wide temperature range of -40°C to +70°C. Screw terminals support flexible/rigid wire sizes 0.75 mm² to 35 mm². Meets EN, IEC, UL standards for safety and performance compliance.
Built-in surge suppression protects circuits from voltage spikes. Ideal for safety-related automation and industrial applications.
This product is manufactured in France, ensuring adherence to stringent quality standards. Perfect for industrial, manufacturing, electrical automation, and safety control applications. Explore more Contactors and control devices in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a coil voltage range from 24 to 60 volts AC.
The power rating is 22 kW at 60 V AC.
It is rated for a contact current of 70 amps.
It includes four auxiliary contacts configured as 2 normally open and 2 normally closed.
The dimensions are 144 mm in length, 144 mm in depth, and 55 mm in width.
It is designed for DIN rail mounting, facilitating easy installation in industrial control panels.
It operates efficiently within a temperature range of -40°C to +70°C.
It complies with EN, IEC, and UL standards for safety and reliability.
It is equipped with screw terminal connections that support wire sizes from 0.75 mm² to 35 mm².
The contact voltage rating is 600V AC.
It is designed for safety-related applications in industrial automation and machine safety.
The model number is 1SBL347082R1122 AFS40-30-22-11.
