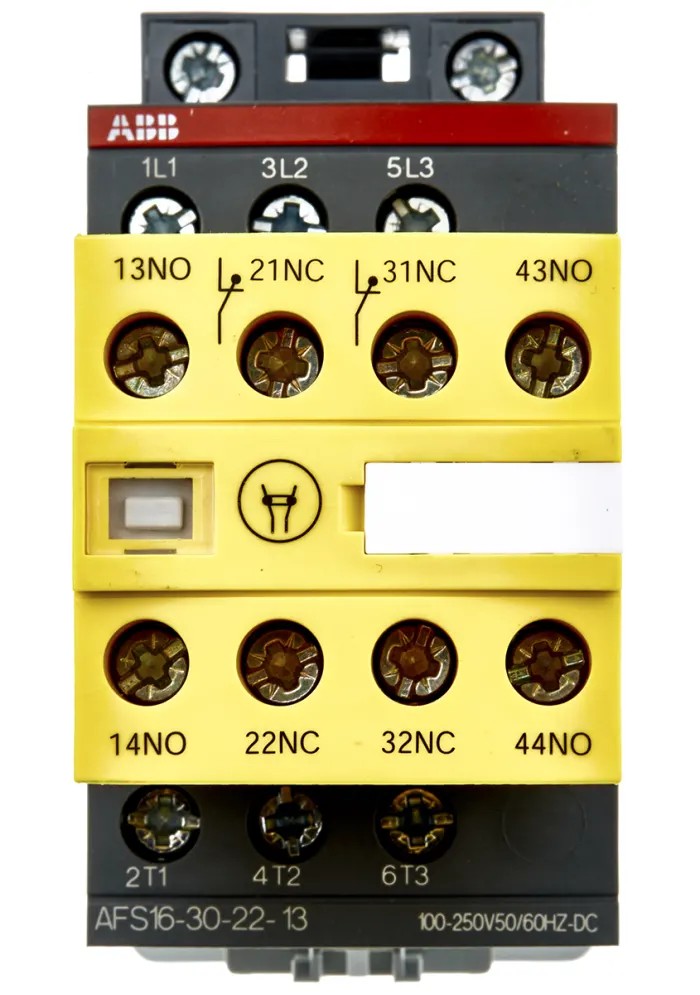

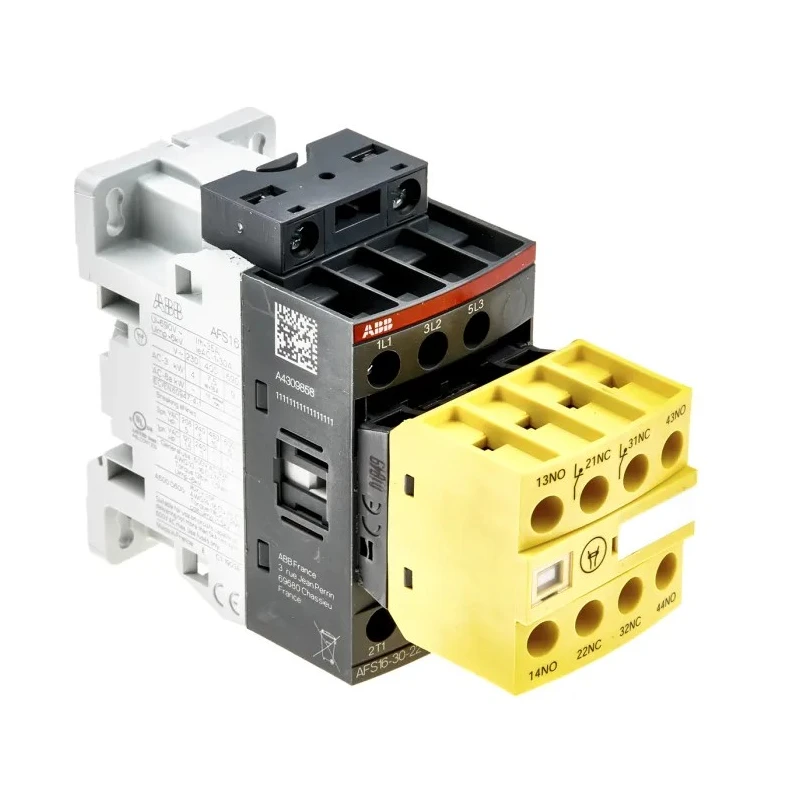

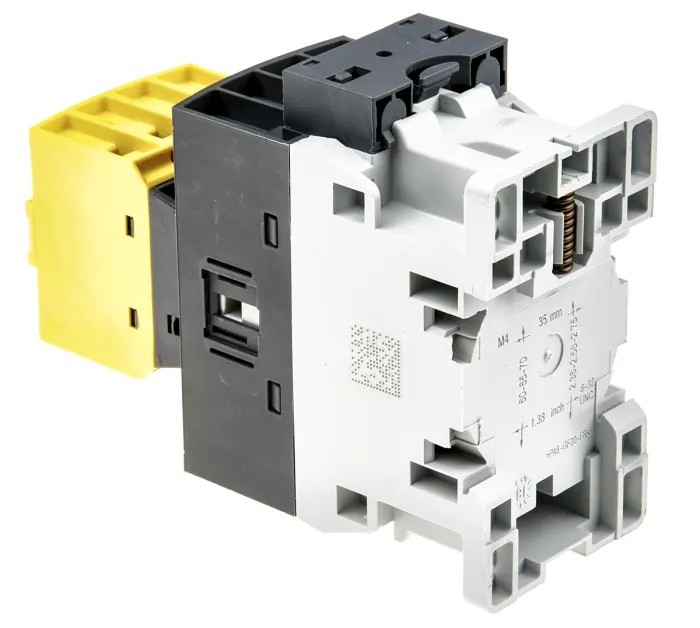

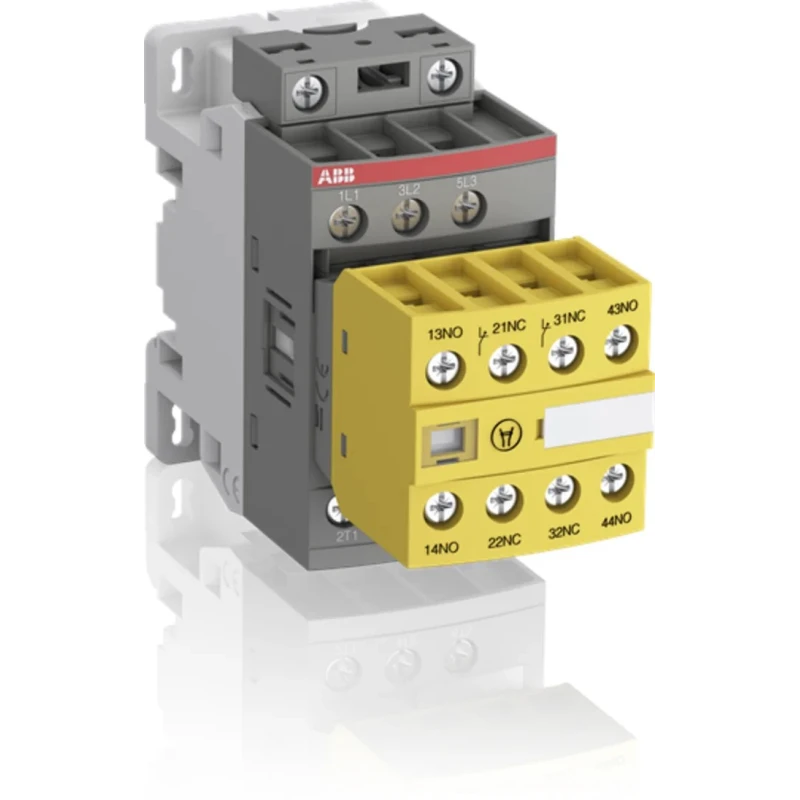

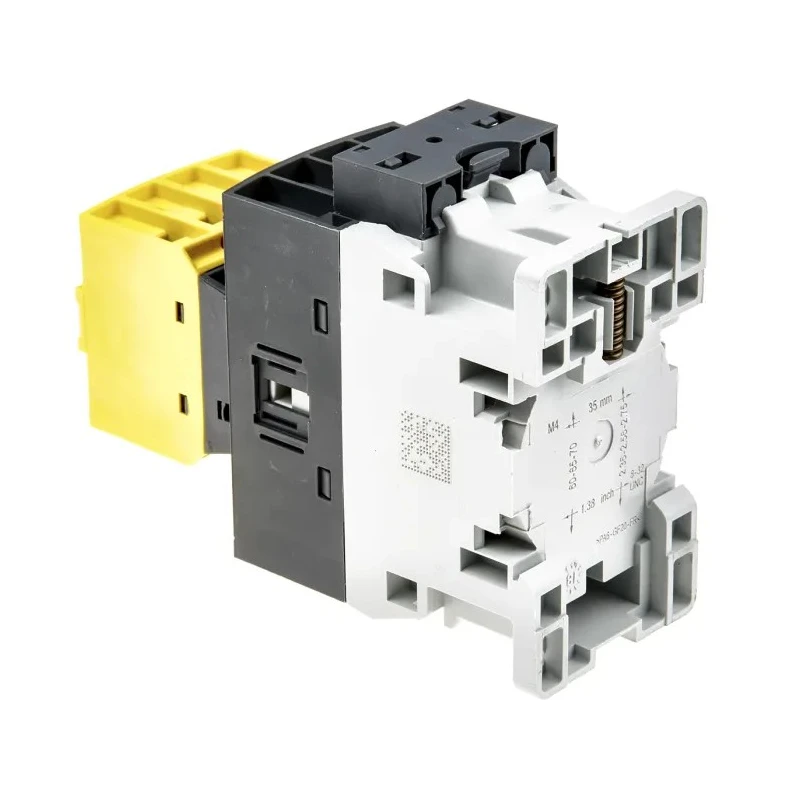

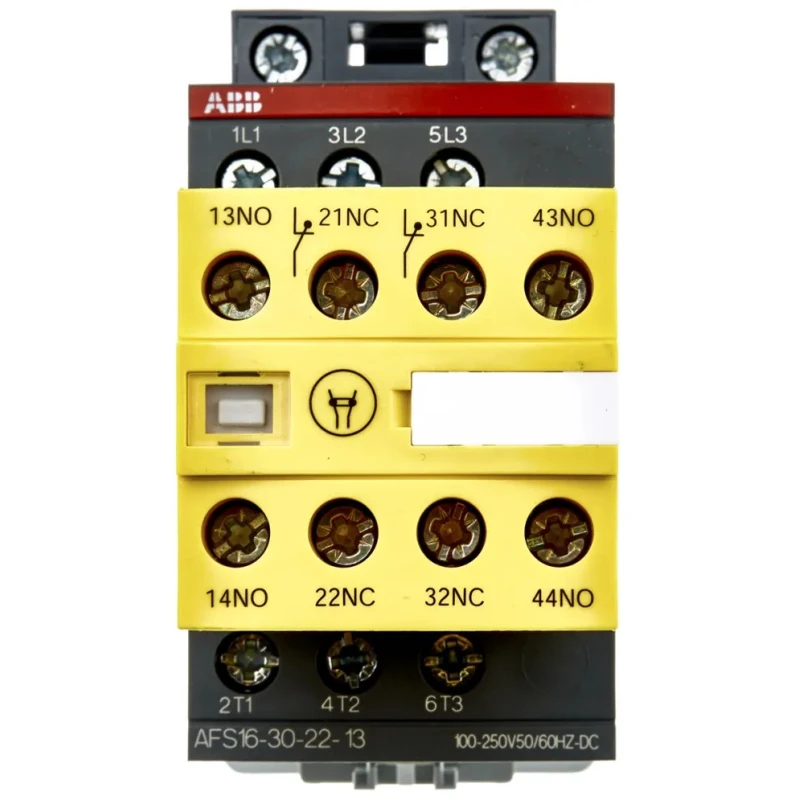

ABB Jokab AFS Contactor 3-Pole 30A 9kW Coil Voltage 100/250V ac/dc Control Voltage 24V Model 1SBL177082R1322 AFS16-30-22-13
Specifications
| Country of Origin | France |
|---|---|
| Brand | ABB Jokab |
| Function | Safety |
| Length | 45mm |
| Model | 1SBL177082R1322 AFS16-30-22-13 |
| Depth | 80mm |
| Width | 110.5mm |
| Mount Type | DIN Rail |
| Series | AFS |
| Power Rating | 9kW |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | cUL, CE, CSA, EAC, IEC, RoHS |
| Contact Voltage | 600V ac |
| Coil Voltage | 100, 250V ac/dc |
| Normal State Configuration | 3 NO |
| Contact Current | 30A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 16A |
| Control Circuit Voltage Uc | 24V |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3 |
Key Features
- Designed with built-in surge protection for enhanced durability and device safety.
- Screw terminals allow for quick and secure wiring installation.
- Withstands harsh industrial conditions due to resistance against shock and vibration.
- IP20 rated terminals provide protection against touch and foreign objects larger than 12 mm.
- Yellow housing enables easy visual identification in control panels.
- Supports a wide control voltage range between 100 and 250V DC for diverse circuit applications.
- Suitable for electric vehicles, lighting control, industrial automation, and commercial buildings.
Product Description
ABB Jokab 1SBL177082R1322 AFS16-30-22-13 is a high-performance 3-pole contactor designed for industrial and commercial electrical control systems. It offers a contact current rating of 30A and power rating of 9kW, making it suitable for demanding automation tasks and safety control.
The contactor coil operates within a coil voltage range of 100V to 250V ac/dc, paired with a control circuit voltage of 24V, providing reliable switching across various electrical environments. The device includes four auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC), with an overall normal state configuration of 3 NO contacts.
Its physical design features screw terminals that facilitate quick wiring, a mounting type compatible with DIN rails, and dimensions of 110.5mm width, 80mm depth, and 45mm length. The contactor withstands operating temperatures ranging from -40°C to +70°C and complies with international standards including cUL, CE, CSA, EAC, IEC, and RoHS. The device is made in France ensuring quality manufacturing standards.
The built-in surge protection minimizes the need for additional protective devices, thereby reducing installation complexity and space requirements. Its robust construction resists shock and vibration, making it suitable for harsh industrial environments. The IP20 rated terminals ensure safety by preventing accidental contact and ingress of objects larger than 12 mm.
This contactor finds applications in electric vehicles, lighting control systems, industrial automation processes, and commercial building electrical management. It delivers fast mechanical switching frequency up to 3,600 cycles per hour, ensuring efficient performance in high-demand systems.
Built-in surge protection for increased durability. Screw terminals provide secure and easy wiring. Shock and vibration resistant for industrial use. IP20 rated terminals prevent accidental contact. Yellow housing allows quick visual identification.
Wide coil voltage range adapts to various circuit requirements. Suitable for electric vehicles, lighting, and automation.
Explore the range of ABB Jokab Contactors and related automation control gear in EnvMart's category to find the best solutions for industrial and commercial electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor has a contact current rating of 30A, making it suitable for various industrial applications.
It has a power rating of 9kW, which allows it to handle demanding automation tasks effectively.
The coil voltage range for this model is between 100V and 250V ac/dc, accommodating diverse circuit applications.
The control circuit voltage for this contactor is 24V, providing reliable operation in various electrical environments.
It features screw terminals, which facilitate quick and secure wiring installation.
The dimensions are 110.5mm in width, 80mm in depth, and 45mm in length.
The maximum operating temperature is +70°C, allowing it to function in high-temperature environments.
It complies with several international standards including cUL, CE, CSA, EAC, IEC, and RoHS.
This model includes four auxiliary contacts, configured as 2 normally open (NO) and 2 normally closed (NC).
This unit is designed for DIN rail mounting, which is common in industrial applications.
It is suitable for applications including electric vehicles, lighting control systems, industrial automation, and commercial building electrical management.
The normal state configuration consists of 3 normally open (NO) contacts, facilitating various control functions.
