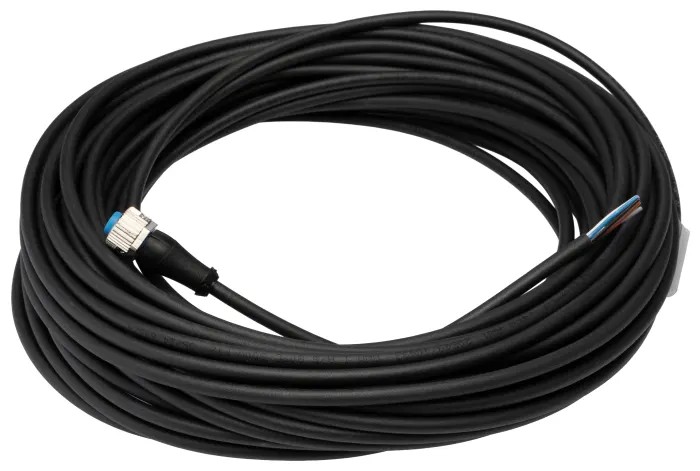

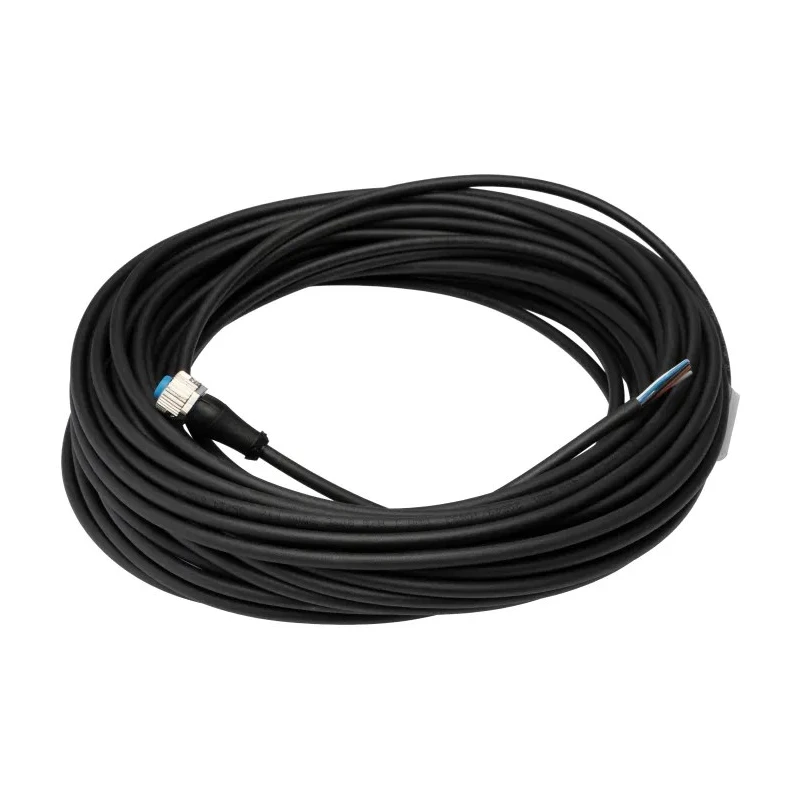

SICK Sensor Actuator Cable Female 5 Way Straight M12 to Unterminated 20m 125V CYJV Series YF2A15-200UB5XLEAX / 2095614

SICK YF2A15-200UB5XLEAX / 2095614 Sensor Actuator Cable 20m is a premium-quality control cable designed to provide robust and reliable electrical connections between sensors, actuators, and control equipment in industrial environments. This cable features a polyurethane (PUR) jacket in black, which offers excellent resistance to oils and makes it suitable for use in drag-chain applications where continuous movement occurs.

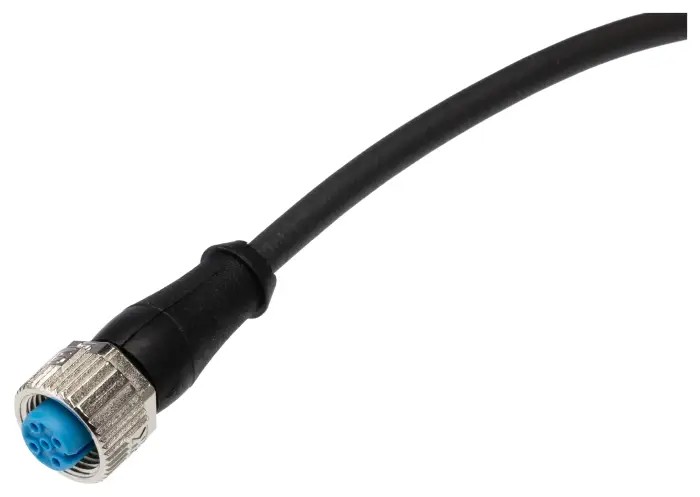

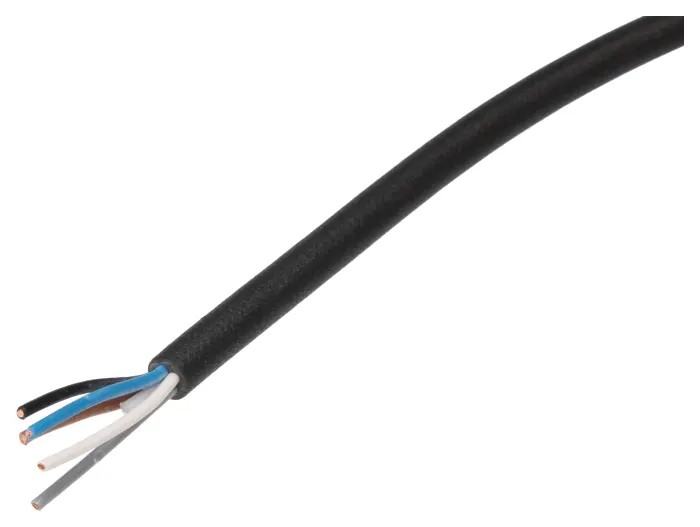

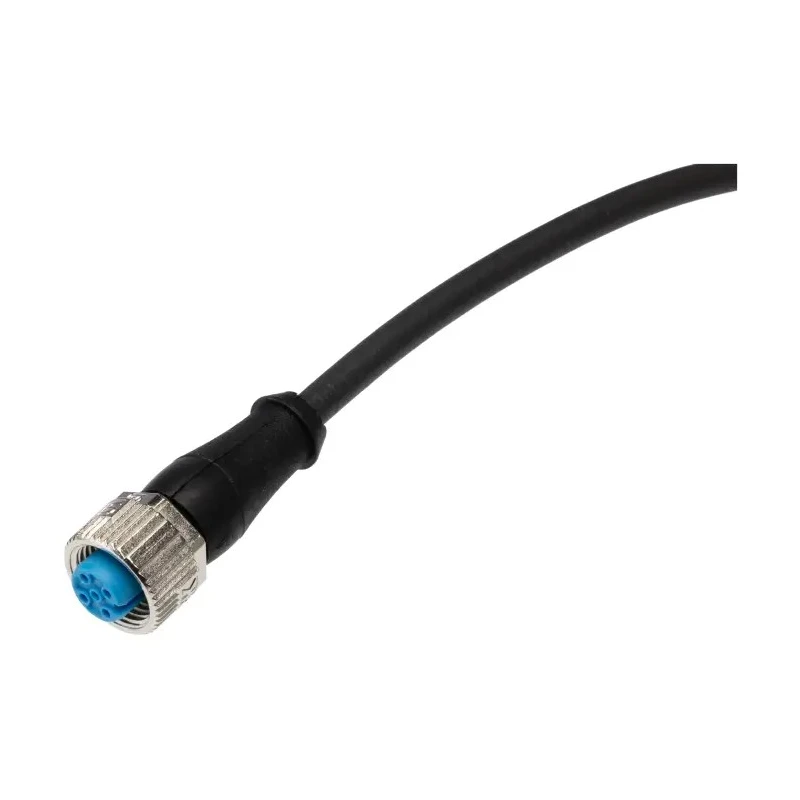

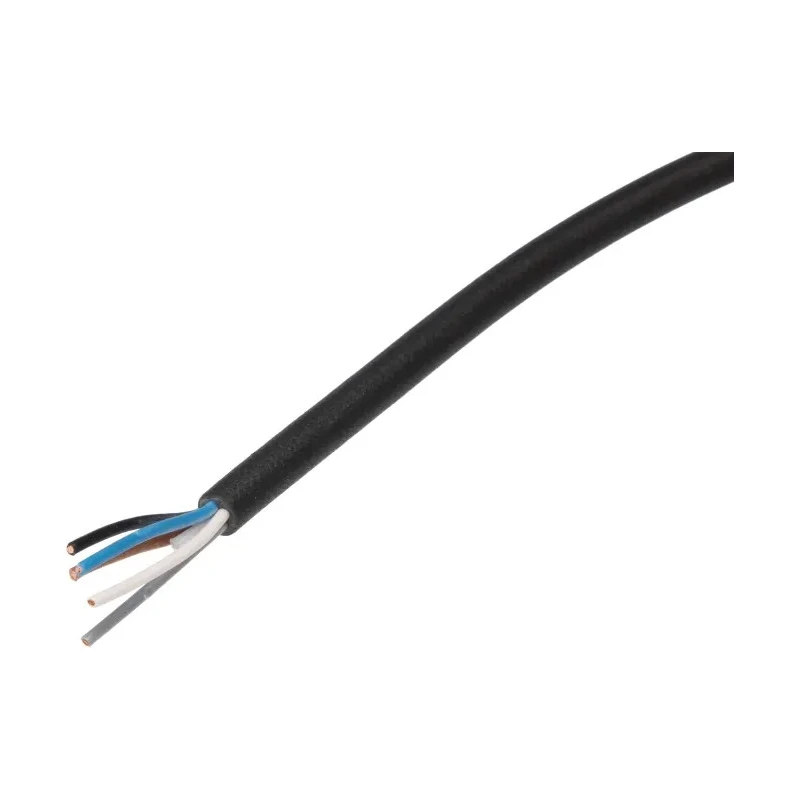

The cable includes a straight female M12 connector with 5 contacts at one end, secured by a zinc die-cast nickel-plated screw-lock nut and a TPU housing sealed with FKM for outstanding environmental protection. The opposite end is unterminated, allowing flexible field termination to suit diverse installation requirements.

Rated for 125 volts, each conductor supports 4A current suitable for low-voltage control circuits and sensor signals. It meets high ingress protection standards including IP65, IP66K, and IP67, ensuring dependable operation even in wet or harsh industrial conditions. The cable also complies with CE and UL standards, underscoring its safety and reliability.

Designed specifically for automated manufacturing systems and industrial automation, the CYJV series cable withstands mechanical stresses effectively. It supports a bending radius greater than ten times its diameter and endures up to 5 million bending cycles, making it ideal for dynamic drag-chain assemblies. It also tolerates torsion stresses of 180°/meter with 2 million cycles and supports traversing speeds up to 3.3 meters per second.

The operating temperature range for flexible applications extends from −25°C to +80°C, while stationary use permits temperatures down to −40°C. The connector is made to secure firmly to equipment using a screw-lock interface, enhancing connection stability in demanding industrial uses.

Application examples include machine automation sensor and actuator connections, proximity and limit switches integration on production lines, and wiring of mobile machine subassemblies that face exposure to oils and movement. This cable ensures reliable signal integrity and mechanical endurance, improving system uptime and maintenance efficiency.

Features 5 contacts delivering 4A per conductor for reliable signal transmission. Constructed with black polyurethane jacket for oil resistance and drag-chain compatibility. Rated for 125V voltage, suitable for low-voltage control circuits and sensors.

Provides high IP65, IP66K, and IP67 ingress protection for wet-environment durability. Includes a straight female M12 connector on one end and unterminated conductors on the other for flexible installation. Supports continuous use in automated systems withstanding mechanical movement and oil exposure.

Designed to endure bending radius greater than 10x cable diameter with up to 5 million bending cycles. Operates reliably within temperature ranges from −25°C to +80°C in dynamic conditions. Connector housing is TPU with zinc die-cast nickel-plated nut and FKM sealing material for environmental resistance.

Ideal for machine automation, production line drag-chain assemblies, and wiring mobile subassemblies exposed to oils.

This SICK sensor actuator cable is an industrial-grade solution engineered to meet the demanding challenges of modern automation in manufacturing, processing, and material handling facilities. For more advanced cables and sensor accessories, browse the Electronics & Electricals Wires & Cables Sensor Actuator Cable category at EnvMart.
