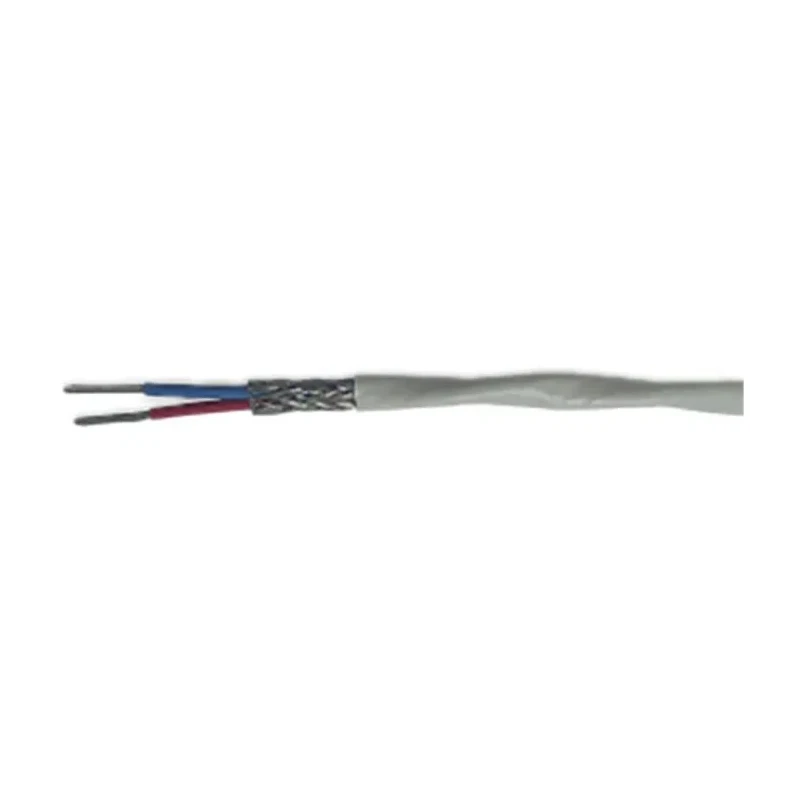

TE Connectivity Type 55 Series Red Blue 0.6 mm² Hook Up Wire 20 AWG 19x32 AWG Core Strands 100 m Ethylene 55A1121-20-2/6-9

TE Connectivity 55A1121-20-2/6-9 Hook Up Wire is a high-performance wire featuring a 0.6 mm² cross sectional area and 20 AWG size with 19 strands of 32 AWG core strands. This wire is insulated with ethylene tetrafluoroethylene (ETFE), providing exceptional resistance to chemicals, abrasion, and electrical arc tracking, making it ideal for industrial, avionics, aerospace, and military applications.

The dual wall Airframe construction offers a total wall thickness of 0.25 mm and a contrasting core color (blue) to act as a damage indicator. The jacket colors red and blue enhance identification during installation. It operates safely at voltages up to 600 V and has wide temperature operating ranges from -65 °C to 150 °C.

The conductor is made of tinned copper, offering superior conductivity and corrosion resistance. The outer diameter of the cable is 3.43 mm, enabling compact and reliable wiring installations while maintaining mechanical ruggedness and flexibility.

This wire is RoHS compliant, flame retardant, and self-extinguishing, making it suitable for commercial wiring, avionics, satellites, helicopters, high-performance military systems, and other demanding industrial environments.

The jacket colors are red and blue for easy identification. The cable length is 100 meters, suitable for high temperature industrial use. Voltage rating is 600 V with maximum operating temperature of 150 °C. The conductor material is tinned copper providing excellent conductivity.

The wire has a 3.43 mm outside diameter and a minimum operating temperature of -65 °C. It complies with RoHS standards ensuring environmental safety. The jacket material is Ethylene Tetrafluoroethylene for chemical and abrasion resistance.

Fire behavior is flame retardant and self-extinguishing, suitable for demanding applications. Series type is Type 55, widely used in aerospace and industrial wiring. This product is ideal for use in industrial automation, electrical wiring, aerospace manufacturing, avionics systems, and other high-reliability fields.
