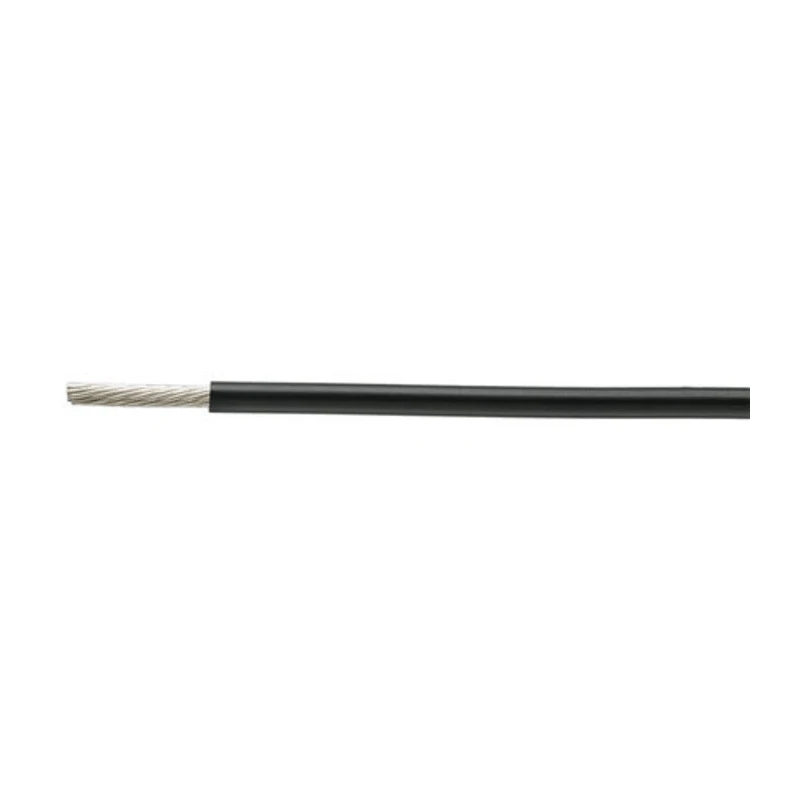

TE Connectivity Type 55 Series Black 0.15 mm² Hook Up Wire, 26 AWG, 19 x 38 AWG Core Strands, 100 m Length 55A0111-26-0

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Type 55 Series Black 0.15 mm² Hook Up Wire, 26 AWG, 19 x 38 AWG Core Strands, 100 m Length 55A0111-26-0

Name: TE Connectivity Type 55 Series Black 0.15 mm² Hook Up Wire, 26 AWG, 19 x 38 AWG Core Strands, 100 m Length 55A0111-26-0
Brand: TE Connectivity
SKU: 236056
Price: 99.62 USD
Availability: InStock



Category Hook Up Wire Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	TE Connectivity
CROSS SECTIONAL AREA	0.15mm²
Model	55A0111-26-0
Cable Length	100m
Series	Type 55
Outside diameter	0.81mm
Maximum Operating Temperature	150°C
Conductor Material	Tinned Copper
Minimum Operating Temperature	-65°C
Jacket Material	Ethylene Tetrafluoroethylene
Standards/Approvals	RoHS Compliant
Jacket Colour	Black
Fire Behaviour	Flame Retardant, Self-Extinguishing
American Wire Gauge	26AWG
Number of Strands	19
Core Strands	19 x 38AWG
Size of Strands	38AWG

Key Features

Insulated with modified radiation cross-linked ETFE polymer for superior durability.
Dual wall Airframe construction ensures high temperature resistance up to 150°C.
Small size and ultra-lightweight design offer excellent mechanical ruggedness.
Exceptional chemical resistance and electrical arc tracking prevention.
Flame retardant and self-extinguishing fire behavior enhances safety.
Suitable for commercial wiring, avionics, satellites, aircraft, and military systems.
Features a black jacket color for easy identification and resistance to UV and moisture degradation.
Core conductor made of tinned copper strands for excellent conductivity.

Product Description

TE Connectivity 55A0111-26-0 Hook Up Wire is a high-performance electrical wire designed for demanding industrial and aerospace applications. Insulated with a modified radiation cross-linked Ethylene Tetrafluoroethylene (ETFE) polymer, it offers outstanding mechanical toughness and chemical resistance.

This Type 55 series wire features a dual wall Airframe construction with a total wall thickness of 0.25 mm and a contrasting blue core color as a damage indicator. Its 0.15 mm² cross-sectional area corresponds to 26 AWG size with 19 strands of 38 AWG tinned copper, ensuring excellent conductivity and flexibility.

The wire has a nominal outside diameter of 0.81 mm and is rated for voltages up to 600 V, with a temperature operating range from -65°C to 150°C. It uniquely combines flame retardant and self-extinguishing properties, making it suitable for safety-critical installations.

TE Connectivity Type 55 wire is an ideal choice for commercial wiring, avionics, satellites, aircraft, helicopters, and high-performance military systems, where reliability and resistance to harsh environments are paramount.

Modified radiation cross-linked ETFE insulation provides high durability. Dual wall Airframe design with damage indicating contrasting core. High temperature rating up to 150°C supports harsh environments. Exceptional resistance to chemicals, electrical arc tracking, UV, and moisture.

Flame retardant and self-extinguishing fire behavior for safety. Flexible and mechanically rugged, suitable for precise routing. Tinned copper conductor strands enhance conductivity and corrosion resistance. Voltage rating up to 600 V for versatile applications.

Operating temperature range from -65°C to 150°C. Black jacket color for easy identification and durability.

This reel contains 100 meters of high-quality hook up wire, meeting RoHS compliance standards. It is suitable for industrial, aerospace, laboratory, and commercial use cases requiring reliable wire with exceptional mechanical and thermal properties.
