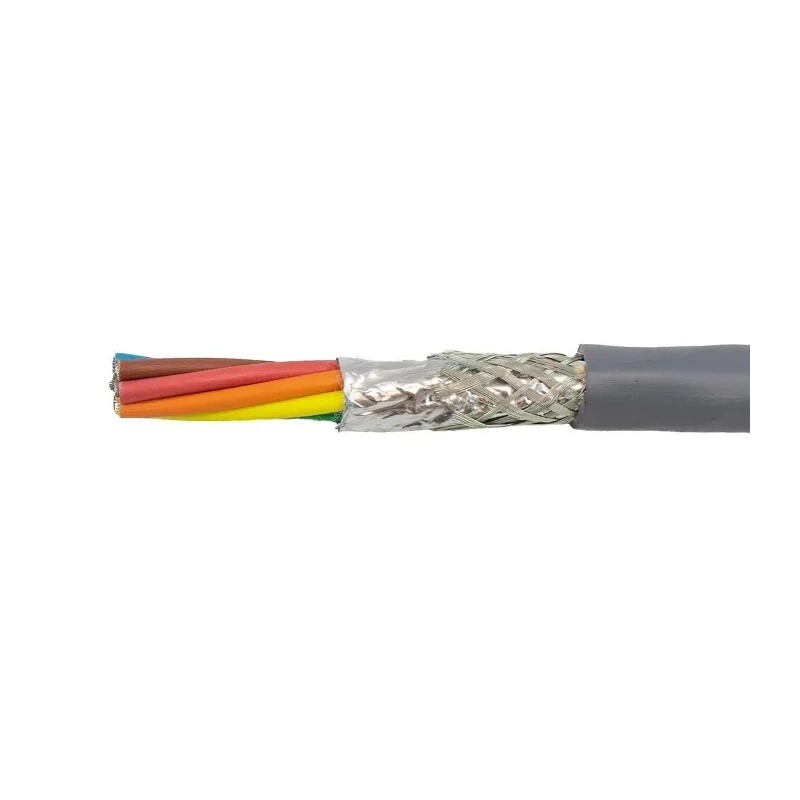

Alpha Wire Ecogen Ecocable Control Cable 7 Cores 0.28mm² 24 AWG Screened 30 m Grey Modified Polyphenylene Ether 77202 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| Model | 77202 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable |
| Outside diameter | 5.82mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 7 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.229 inch (5.82 mm) |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 24AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.2mm |
| Size of Strands | 0.2mm |
| Cable CSA | 0.28mm² |
| Conductors | 7, Black, Brown, Red, Orange, Yellow, Green, Blue |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/32 |
Key Features
- EcoCable 600 V control cable with mPPE jacket and insulation for recyclability.
- Features a triple-layer Supra-Shield foil and braided tinned copper shield for excellent EMI performance.
- Operates in temperatures from -50°C up to 105°C with halogen-free construction.
- 7 stranded tin copper conductors with color coding for easy identification.
- Grey jacket made of modified polyphenylene ether offering excellent abrasion resistance.
- Designed for automation, instrumentation and power control applications.
- Smaller, lighter, and with lower outgassing compared to PVC equivalents.
- Meets CE, CSA, and UL standards ensuring high quality and safety.
Product Description
Alpha Wire 77202 SL005 Ecogen Ecocable control cable is a high-quality 600 V rated screened control cable engineered for automation and industrial power applications. It features 7 color-coded cores with 0.28mm² (24 AWG) stranded tin copper conductors to provide reliable signal transmission and power handling.
The cable uses a modified polyphenylene ether (mPPE) thermoplastic jacket and insulation which is fully recyclable, halogen-free, and free from harmful phthalates.
Its Supra-Shield design incorporates a triple layer of aluminium/polyester/aluminium foil combined with a tinned copper braided shield, delivering superior electromagnetic interference (EMI) protection critical for sensitive control equipment.

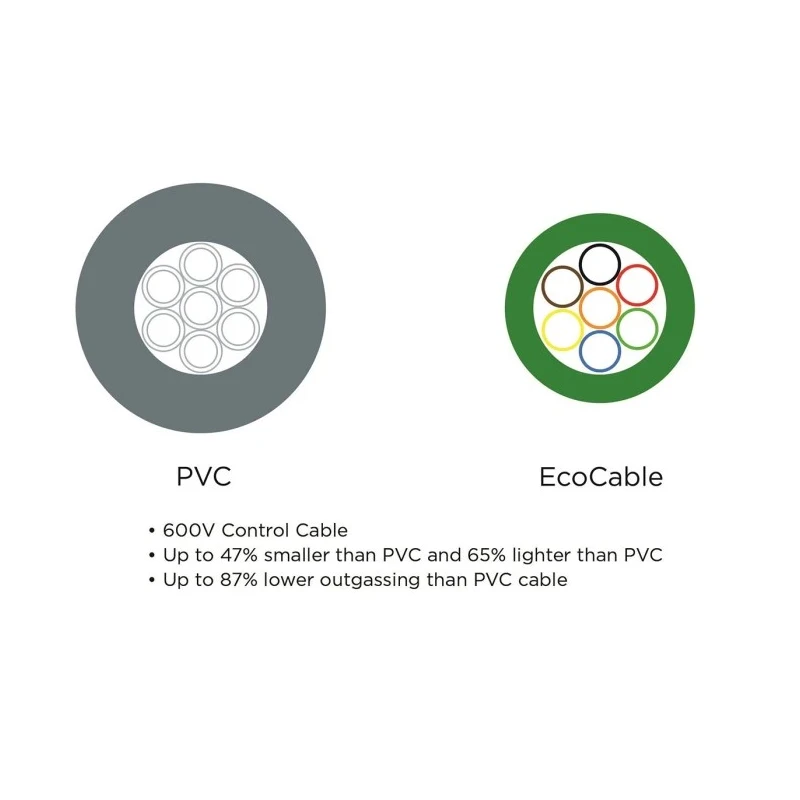

With an operating temperature range from -50°C to 105°C, this cable maintains performance in harsh environments while remaining mechanically robust and abrasion resistant. The grey jacket is smaller and lighter than conventional PVC alternatives due to mPPE's superior dielectric properties, enabling up to 65% weight and thickness reductions.
Typical applications include industrial automation, instrumentation, and power control systems requiring long cable flex life and consistent conductivity. EcoCable 600 V rating with 7 control conductors for multi-signal transmission.
Modified polyphenylene ether (mPPE) insulation and jacket for eco-friendly use and longevity. Superior EMI shielding via Supra-Shield triple foil and braided tinned copper. Temperature range -50°C to 105°C for versatile environmental performance.
Halogen-free and free of phthalates to meet environmental safety requirements. Compliant with CE, CSA, and UL standards ensuring industrial-grade quality. Lightweight and compact design ideal for complex automation wiring schemes.
Alpha Wire Control Cables belong to a broad category of industrial wiring solutions designed to provide dependable operation in manufacturing, HVAC, agricultural machinery, water treatment plants, and other commercial industrial settings. Select this cable for applications that demand durable, eco-compatible, and EMI-resistant wiring solutions.
Explore the full range of industrial cables and wires at EnvMart for optimized connectivity and safety.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 600V, making it suitable for various industrial applications.
This control cable can operate at temperatures up to 105°C, allowing it to perform in harsh environments.
It features 7 color-coded cores, which are designed for reliable signal transmission and power handling.
The conductors are made of stranded tin copper wire, providing effective conductivity for control applications.
The outside diameter of the cable is 5.82mm, with a nominal diameter of 0.229 inches.
Yes, the cable is halogen-free, making it a safer choice for various applications.
It incorporates a triple-layer Supra-Shield foil and a braided tinned copper shield for excellent EMI performance.
The cable is 30 meters long, suitable for extended runs in industrial settings.
It meets CE, CSA, and UL standards, ensuring it adheres to high quality and safety requirements.
The insulation is made from modified polyphenylene ether (mPPE), which is recyclable and provides excellent abrasion resistance.
The cable can operate at temperatures as low as -50°C, making it versatile for various environmental conditions.
It is designed for automation, instrumentation, and power control applications, particularly in industrial settings.
