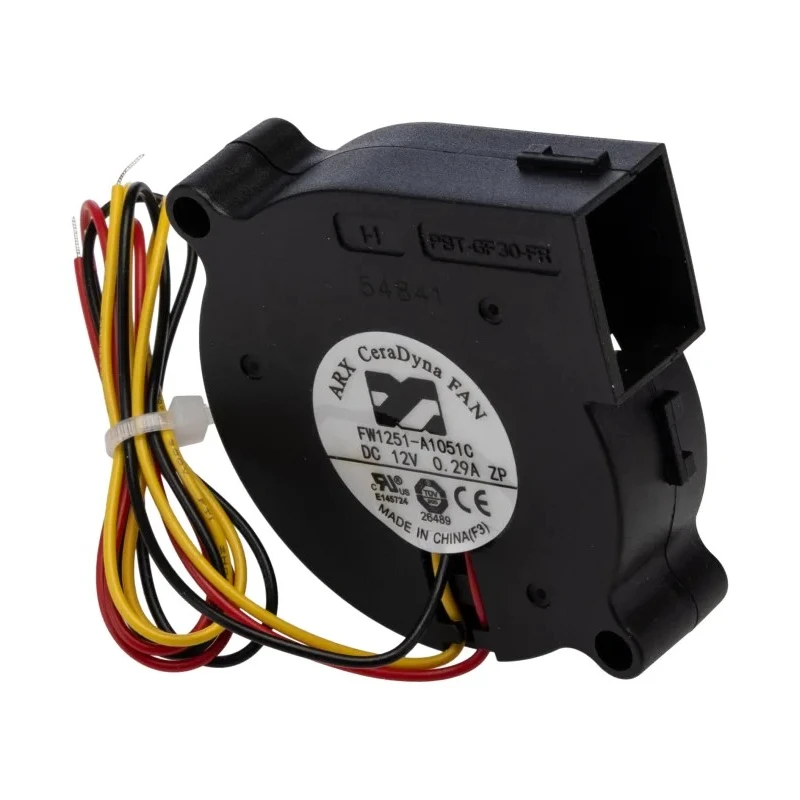

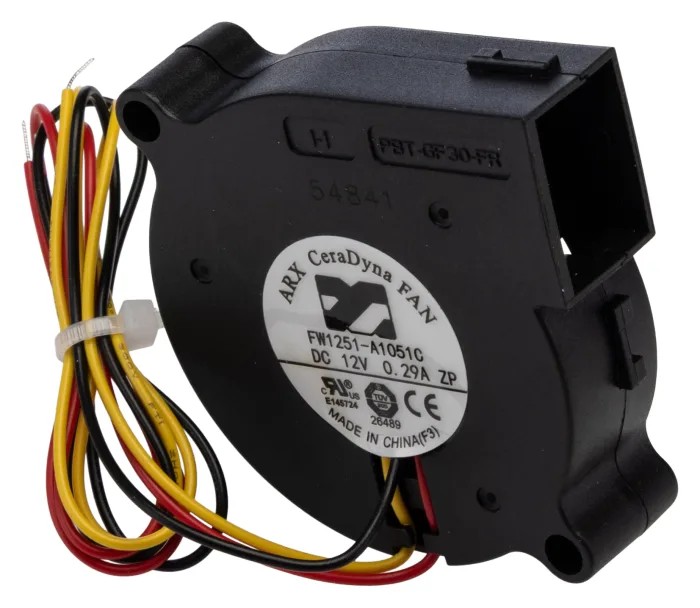

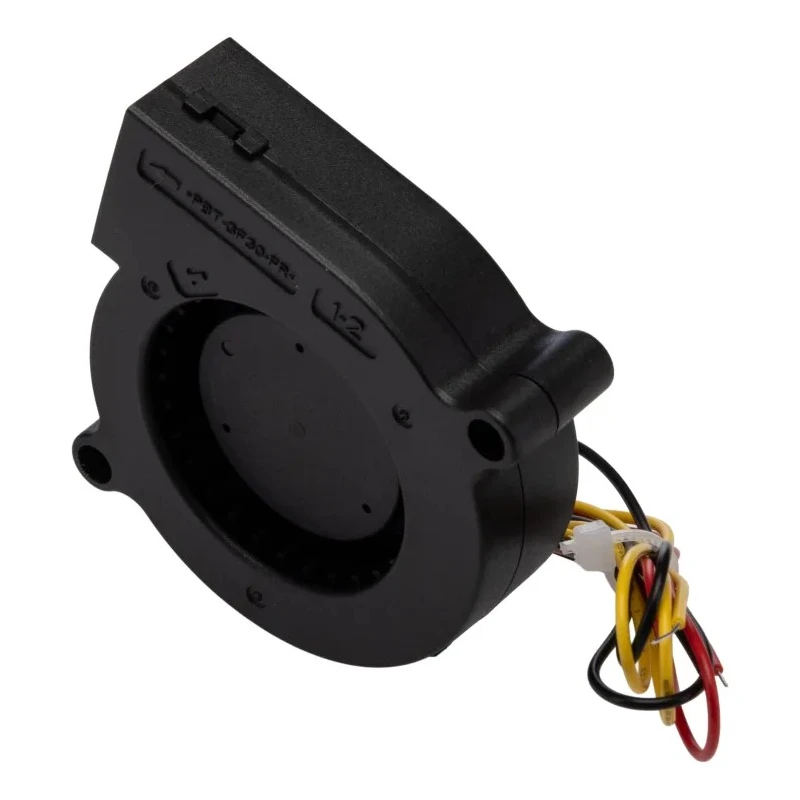

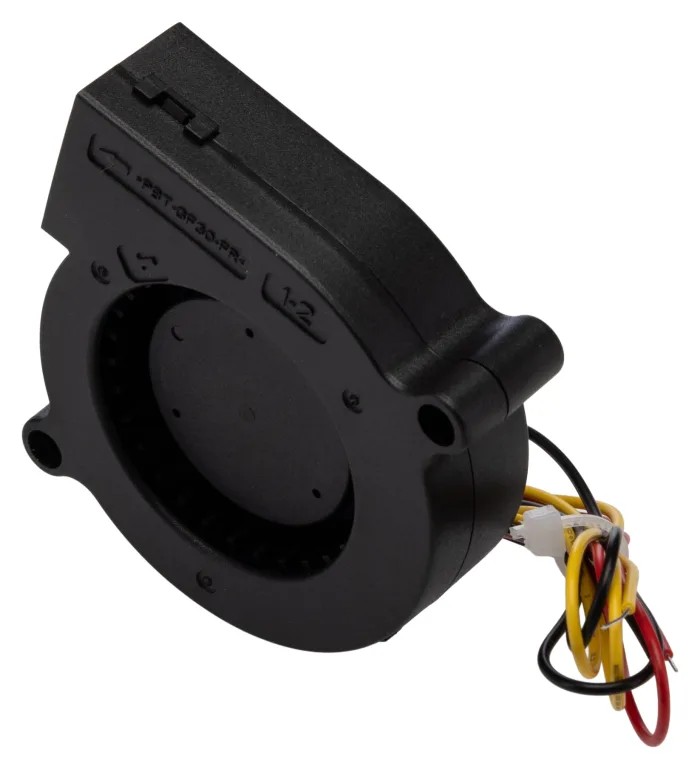

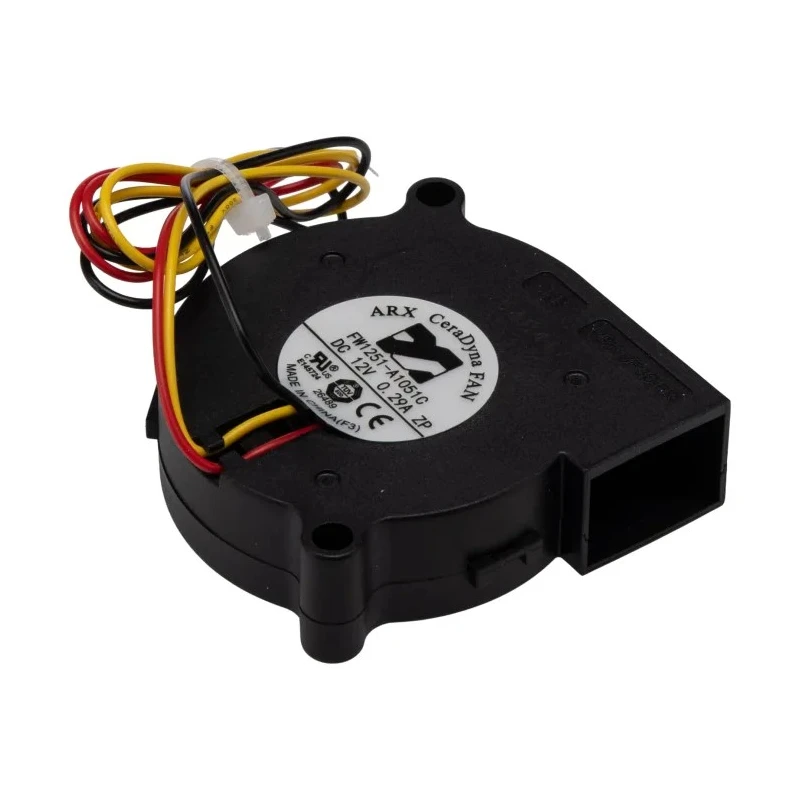

ARX CeraDyna Series Blower Centrifugal Fan 12V dc, 6.97 m³/h Air Flow, 5500 rpm, 51 mm x 51 mm x 15 mm FW1251-A1051C2AL
Specifications
| Country of Origin | China |
|---|---|
| Brand | ARX |
| Blower Type | Blower |
| Height | 51mm |
| Fan Speed | 5500rpm |
| Air Flow | 6.97m³/h |
| Model | FW1251-A1051C2AL |
| Depth | 15mm |
| IP Rating | IP20 |
| Noise Level | 37dBA |
| Width | 51mm |
| Static Pressure | 0.63in/H2O |
| Series | CeraDyna |
| Maximum Current | 290mA |
| Terminal type | Wire |
| Supply Voltage | 12V dc |
| Bearing Type | Sleeve |
| Standards/Approvals | cULus, CNS, CE, RoHS, UL, ISO, IEC |
| AC or DC Operation | DC |
| Commutation Type | Electronic |
| Mounting Hole Diameter | 4.4 mm |
| Sensor Output Type | PWM |
Key Features
- The fan operates at a voltage of 12V dc, suitable for various DC applications.
- It delivers an air flow rate of 6.97 cubic meters per hour for effective ventilation.
- The fan speed is 5500 rpm, ensuring consistent cooling performance.
- Constructed with ceramic sleeve bearings for reduced friction and extended service life.
- Includes PWM sensor output type for precise speed control.
- The unit produces low noise level of 37 dBA, ideal for quiet environments.
- Features an IP20 rating to protect against solid objects larger than 12 mm.
- Equipped with a mounting hole diameter of 4.4 mm for secure attachment.
Product Description
ARX FW1251-A1051C2AL Blower Centrifugal Fan 12V dc, part of the CeraDyna series, provides a reliable and efficient cooling solution designed for various industrial and electronic applications. The fan features a robust ceramic sleeve bearing known for its durability and superior friction reduction, resulting in quieter operation and extended lifespan compared to conventional ball bearing fans.
The fan operates with a supply voltage of 12V dc and demonstrates a high fan speed of 5500 rpm, delivering an air flow rate of 6.97 m³/h. Its compact form factor with dimensions 51 mm width by 51 mm height and 15 mm depth allows it to fit easily into tight spaces while maintaining effective ventilation performance.
The CeraDyna fan includes PWM sensor output for nuanced speed control and is designed to withstand heat and humidity, supported by its construction using toughened ceramic material. It achieves a low noise level of 37 dBA, making it suitable for noise-sensitive environments such as laboratory equipment, medical instrumentation, telecommunications hardware, and HVAC systems.
Featuring an IP20 ingress protection rating and a mounting hole diameter of 4.4 mm, this centrifugal fan offers protection against solid objects larger than 12 mm and facilitates easy installation. The maximum current rating is 290 mA with electronic commutation ensuring reliable and efficient DC operation.
Certified to various international standards including cULus, CNS, CE, RoHS, UL, ISO, and IEC, the ARX CeraDyna Series Blower Centrifugal Fan meets stringent quality and safety requirements.
The fan operates at 12V dc voltage. Delivers air flow of 6.97 m³/h at 5500 rpm. Equipped with ceramic sleeve bearing for durability and low friction. Low noise emission of 37 dBA ensures quiet operation. Compact size fits standard mounting configurations.
Includes PWM sensor output for speed modulation. Rated IP20 for protection against solid objects. Maximum current 290 mA with electronic commutation. Mounting hole diameter is 4.4 mm. Manufactured in China and compliant with multiple international standards.
This Centrifugal Fan is ideal for industrial machinery cooling, electronic enclosure ventilation, HVAC systems, and other applications requiring reliable, small-form-factor air movement solutions. For more product options and brands, explore the Industrial Coolers, Blowers & Fans category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fan delivers an air flow rate of 6.97 cubic meters per hour.
It operates at a maximum fan speed of 5500 rpm.
This model operates at a supply voltage of 12V dc.
The fan produces a low noise level of 37 dBA, making it suitable for quiet environments.
The fan has dimensions of 51 mm in width, 51 mm in height, and 15 mm in depth.
It is equipped with ceramic sleeve bearings for reduced friction and extended service life.
The fan has an IP20 rating, providing protection against solid objects larger than 12 mm.
The mounting hole diameter is 4.4 mm, facilitating secure attachment.
It includes a PWM sensor output type for precise speed control.
This fan is certified to various international standards including cULus, CNS, CE, RoHS, UL, ISO, and IEC.
The maximum current rating is 290 mA with electronic commutation ensuring reliable operation.
It is suitable for industrial machinery cooling, electronic enclosure ventilation, HVAC systems, and other applications requiring effective air movement.
