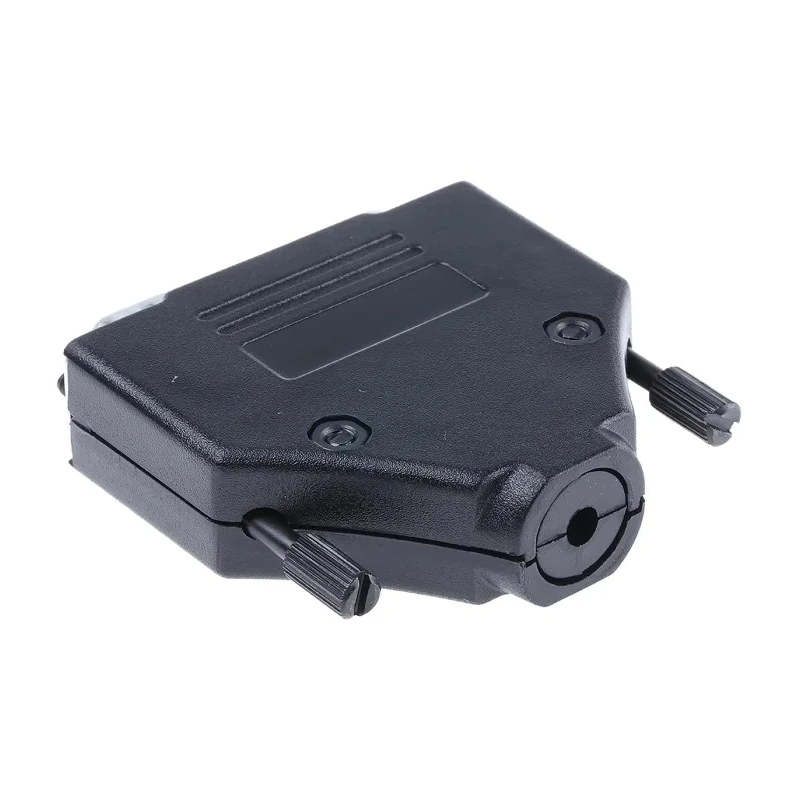

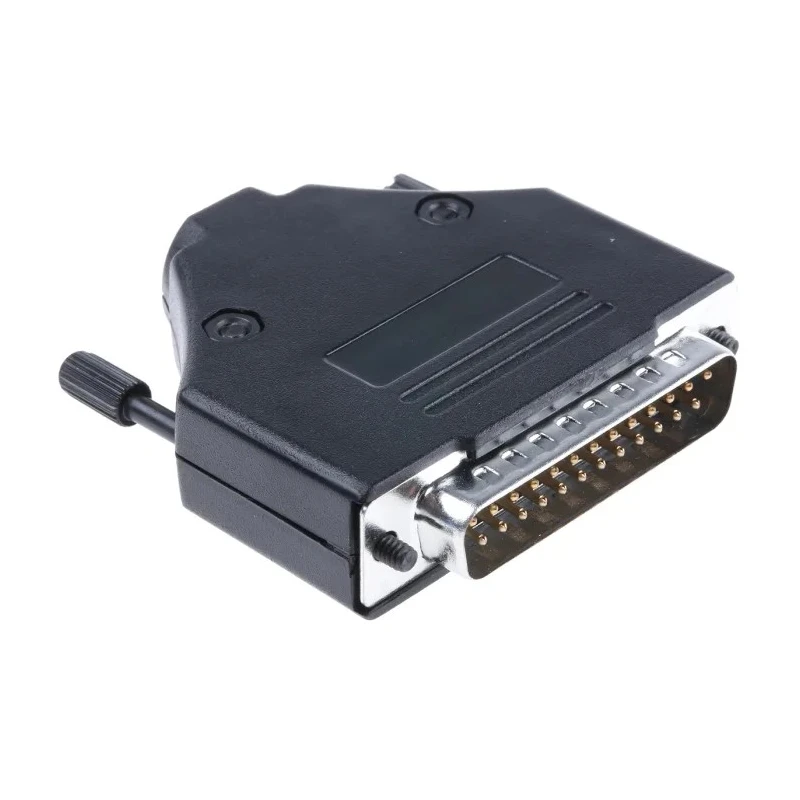

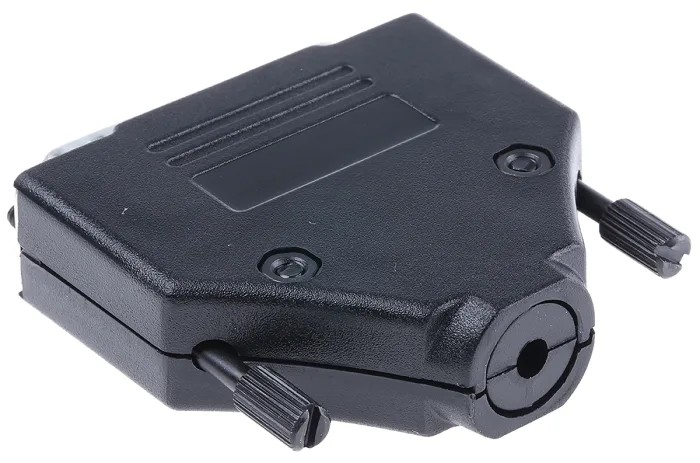

MH Connectors 25 Way Straight D-Sub Connector Plastic Housing 5A 250V MHDTPPK25-DB25P-K

MH Connectors MHDTPPK25-DB25P-K is a 25 Way Straight D-Sub Connector designed with a robust ABS Polylac plastic housing suitable for demanding electronic component assemblies. It supports a current rating of 5A and an operating voltage of up to 250V, ensuring reliable performance in various applications.

The connector features solder terminations with gold-plated stamped and formed contacts for excellent conductivity and corrosion resistance. The connector's straight orientation provides ease of connection in tight or linear installations.

Operating reliably in temperatures from -55°C to 105°C, this connector supports demanding environments typical in industrial, construction, manufacturing, laboratory, and electronic systems.

The kit comprises the main plug or socket connector with solder buckets, two backshell halves for protection, two 4-40 thumbscrews, housing screws, nuts, and a set of compression inserts compatible with cable diameters 4, 5, 7, and 9 mm, supporting cables up to 13 mm maximum diameter.

This product meets UL 94 V-0 recognised standards for flame retardancy, ensuring safety in electrical installations. Its design caters to D-sub applications in power connectors, computing hardware, and related electronics assemblies.

This connector features 25 contacts rated at 5A current each. Operates safely up to 250V with solder termination type. Equipped with straight orientation and plastic ABS Polylac housing material. Designed to operate in temperature ranges from -55°C to 105°C.

Includes two backshell halves, 4-40 thumbscrews, housing screws, nuts, and compression inserts for cable diameters up to 13 mm. Gold plated mates with tin-plated solder bucket terminations for reliable connections. Complies with UL 94 V-0 recognised standards for fire resistance.

Ideal for use in industrial, electronic, computing, and power connector applications.
