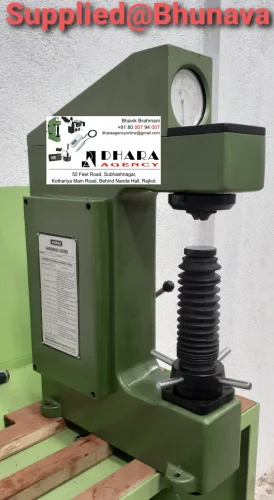

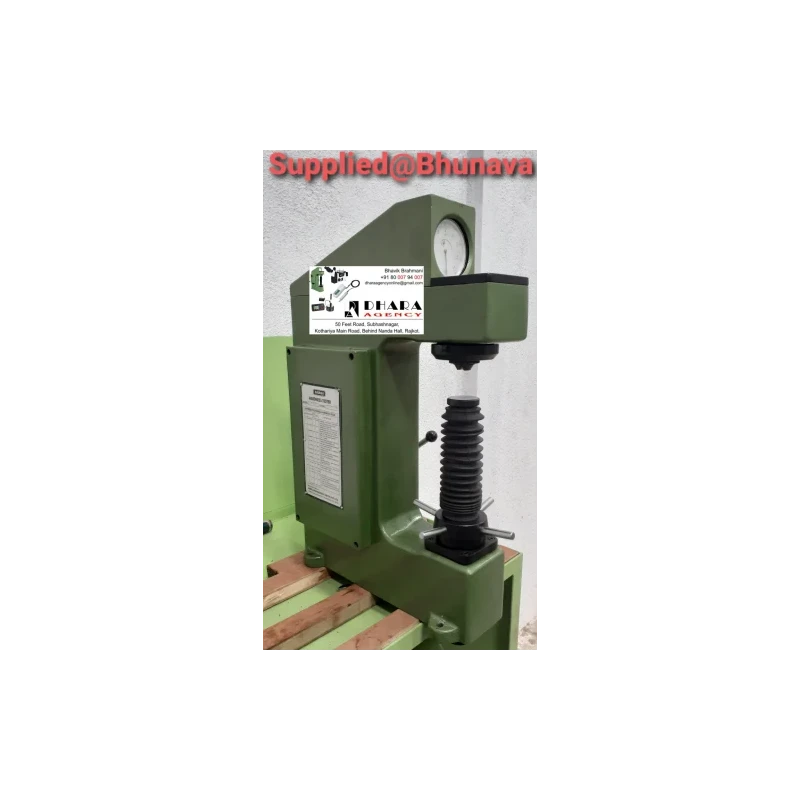

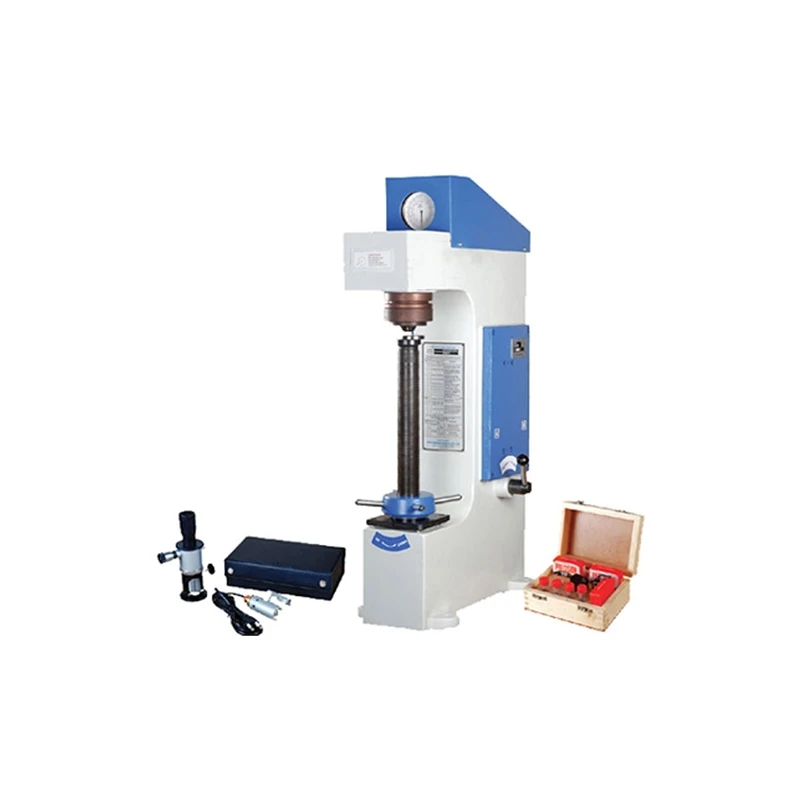

Analogue Rockwell Hardness Testers 190x370mm

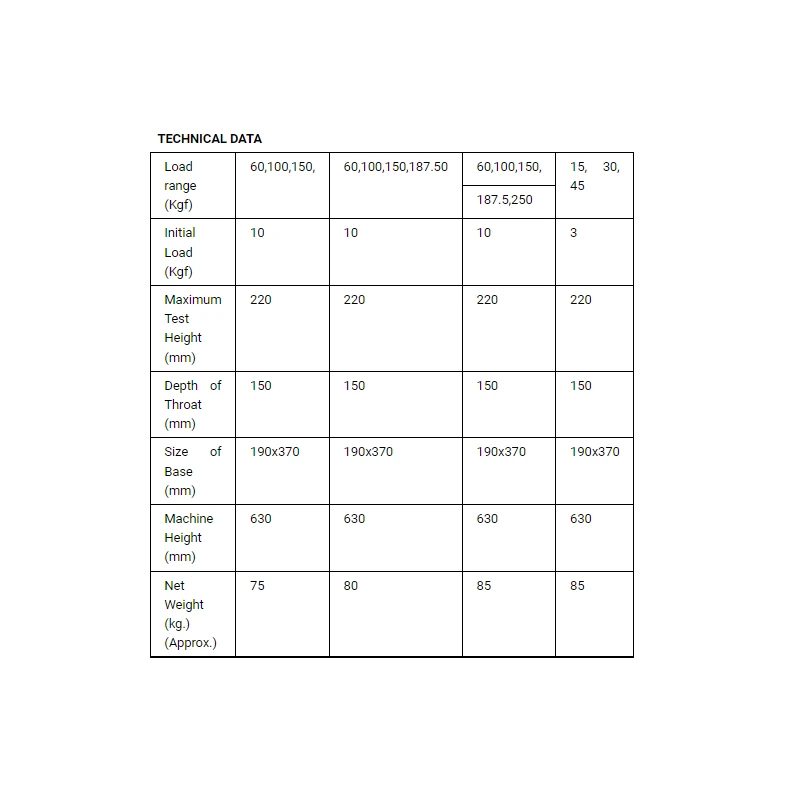

Specifications
| Net Weight | 75 Kg |
|---|---|
| Depth of Throat (mm) | 150 |
| Machine Height (mm) | 630 |
| Load range (Kgf) | 150 |
| Initial Load (Kgf) | 10 |
| Maximum Test Height (mm) | 220 |
| Size of Base (mm) | 190x370 |
Key Features
- High performance
- Automatic weight selection with automatic zero setting dial gauge.
- Arrangement similar to TRS with two additional weights of 187.5 kgf and 250 kgf for Brinell tests. On this machine small pis having Dia 2 mm can be tested as plunger is guided with a set of six bearings
Product Description
Analogue Rockwell Hardness Testers are hardness scale based on indentation hardness of a material. The Rockwell test measuring the depth of penetration of an indenter under a large load (major load) compared to the penetration made by a preload (minor load). There are different scales, denoted by a single letter, that use different loads or indenters. The offered Analogue Rockwell Hardness Testers are built to sit atop a work bench and test sample blocks. They are very efficient
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The load range of this model is 150 Kgf, allowing for a variety of hardness tests on different materials.
The net weight of this unit is 75 Kg, which provides stability during testing.
The size of the base is 190 mm by 370 mm, providing a compact footprint for bench use.
The maximum test height for this model is 220 mm, accommodating various sample sizes.
The initial load applied by this hardness tester is 10 Kgf, which is used for the preliminary phase of the test.
The depth of throat for this hardness tester is 150 mm, allowing for deeper sample access during testing.
The automatic weight selection feature simplifies the testing process by automatically adjusting the weights needed for different hardness tests.
This model is designed to test various materials, particularly metals, using Rockwell hardness testing methods.
The automatic zero setting dial gauge ensures accurate measurements by resetting to zero before each test, enhancing measurement precision.
Yes, small pins with a diameter of 2 mm can be tested, as the plunger is guided by a set of six bearings for stability.
It utilizes the Rockwell hardness testing method, which measures the depth of penetration of an indenter under a major load compared to a minor load.
This machine includes two additional weights of 187.5 kgf and 250 kgf specifically for conducting Brinell tests.
