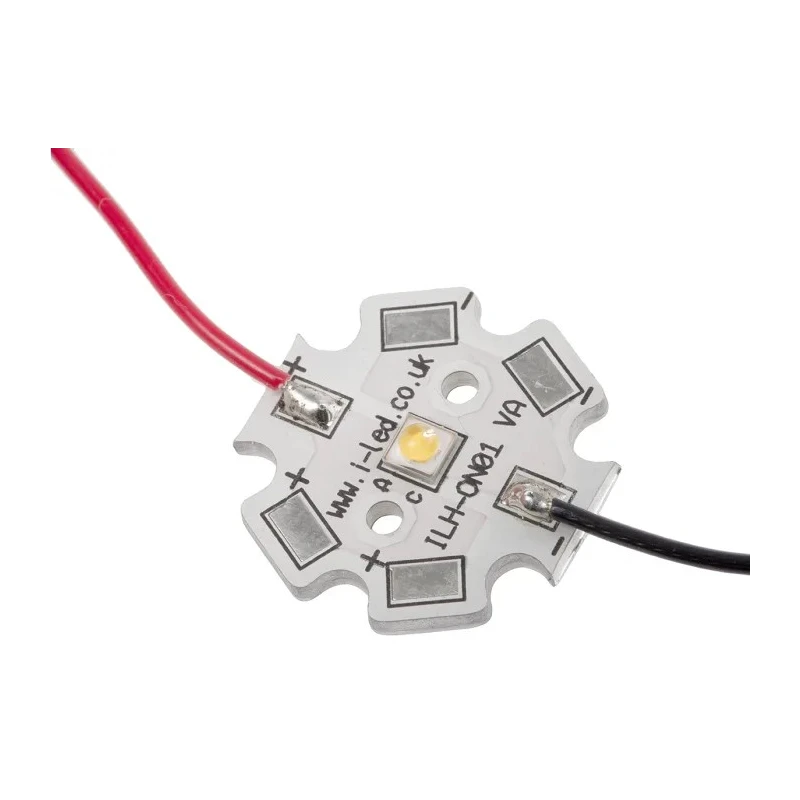

Intelligent LED Solutions OSLON Square 1+ PowerStar LED Array 1-LEDs White LED 3000K ILH-OO01-WMWH-SC211-WIR200.

Intelligent LED Solutions ILH-OO01-WMWH-SC211-WIR200 is a high-performance OSLON Square 1+ PowerStar LED Array featuring a single white LED with a color temperature of 3000K. This LED array delivers a typical luminous flux of 210 lumens and operates at a LED voltage of 3.5V with a power dissipation of 2.17W. It incorporates the latest Osram power chip technology and is designed to remain efficient at currents up to 1000mA.

The compact and lightweight LED array measures 20mm x 20mm x 3.85mm and is built on an aluminum substrate to ensure excellent thermal management with a low thermal resistance of 7 K/W. It includes an onboard driver and secondary optics with a 120° silicon resin lens to focus and spread the light effectively.

Pre-wired with 200mm connecting wires and featuring solder connections along with fixing holes for M3 screws, it ensures quick and secure installation. Being RoHS compliant, it meets environmental and safety standards.

This product is suitable for a wide range of indoor lighting applications including general lighting, decorative lighting, task lighting, spot lighting, downlighters, retail displays, and entertainment lighting. The ability to link multiple PowerStar arrays enables extended lighting chains as required.

Users must ensure the LED array is mounted on a suitable heat sink to prevent overheating, which could cause failure or irreparable damage. It is designed for constant current operation to maintain stable performance.

The LED Array features 1 Oslon SSL Square ThinGan LED for efficient lighting. Typical luminous flux is 210 lumens with 3.5V LED voltage. The device supports a constant current output type with power dissipation of 2.17W.

Compact size of 20mm x 20mm x 3.85mm enables versatile mounting. Pre-wired with 200mm wires and solder connection for ease of installation. Onboard driver included ensuring regulated performance and longevity. RoHS compliant and equipped with secondary optics for 120° silicon resin lens.

Designed for various lighting applications including general, decorative, task, and retail lighting. PowerStar LED arrays can be linked for longer chain configurations. Warning: Use with suitable heat sink to avoid overheating and damage.
