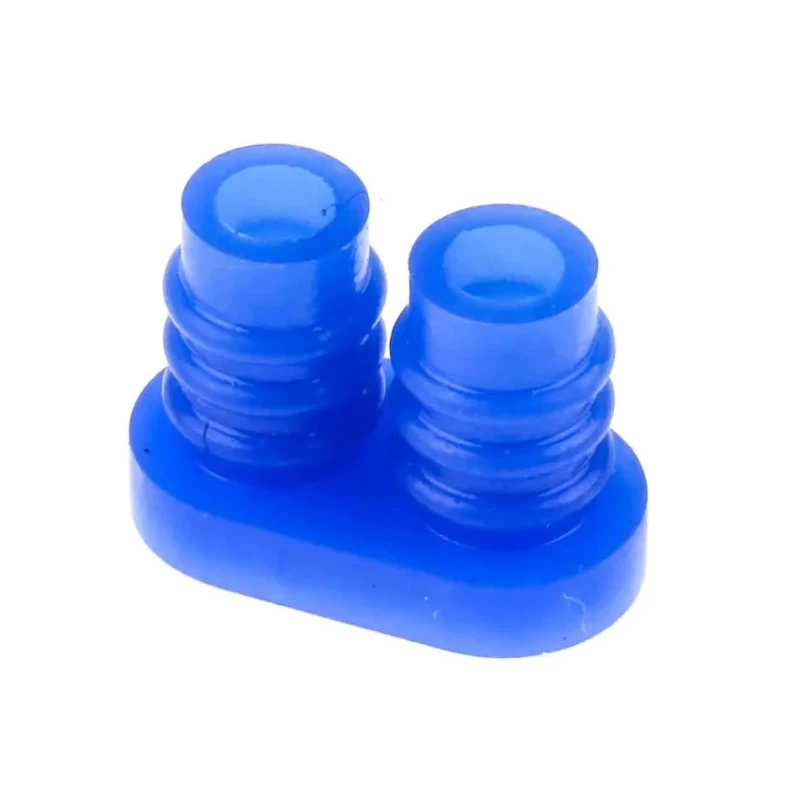

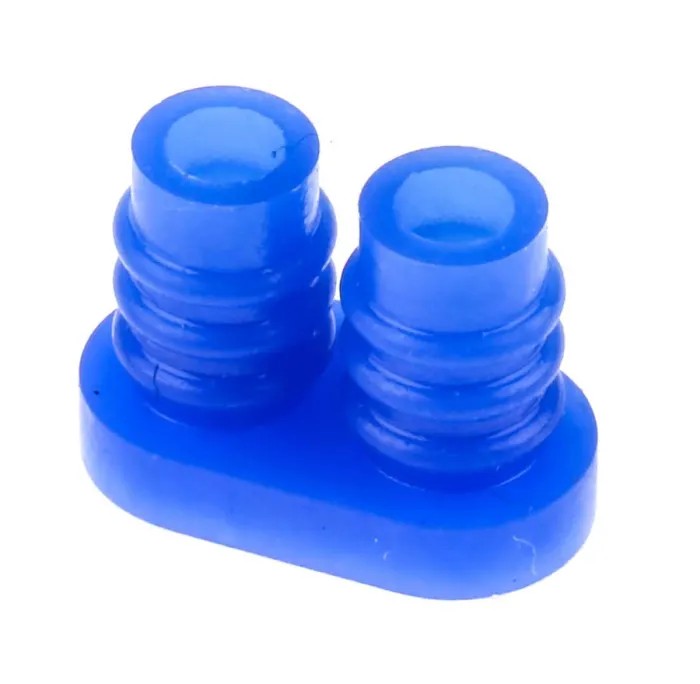

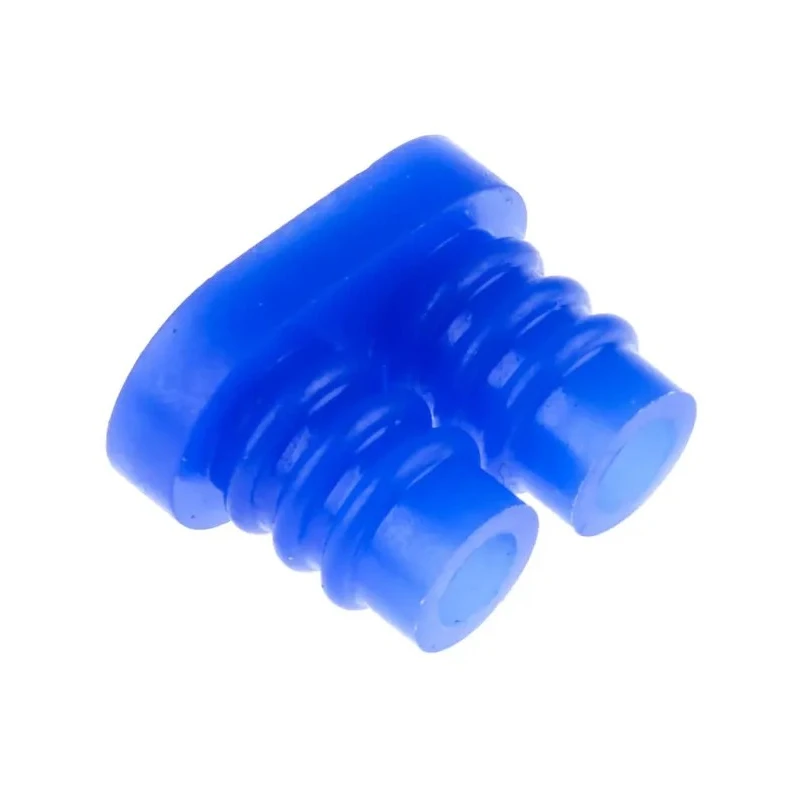

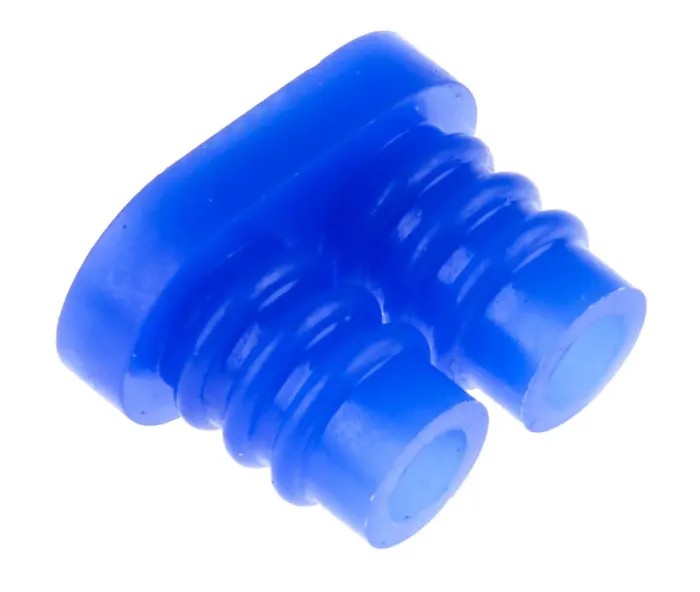

TE Connectivity MATE-N-LOK Series Connector Seal 10A Current 16 AWG Min, 24 AWG Max 794270-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Current | 10A |
| Model | 794270-1 |
| Contact Material | Tin Plated, Copper Alloy |
| Series | MATE-N-LOK |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Housing |
| Contact Plating | Phosphor, Gold, Bronze, Brass, Tin |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 24AWG |
Key Features
- Compatible with MATE-N-LOK series connectors rated for 10A current.
- Supports wire sizes from 16 AWG to 24 AWG.
- Utilizes phosphor, gold, bronze, brass, and tin plating for enhanced conductivity.
- Constructed of tin plated copper alloy for durability and corrosion resistance.
- Operates reliably from -30°C to 105°C for varied environments.
- Color-coded blue for easy identification in assemblies.
- Seal assembly requires one interface seal and two wire seals per connector.
- Suitable for industrial, electronic, and electrical assembly applications.
Product Description
TE Connectivity 794270-1 MATE-N-LOK Series Connector Seal is a high-quality component designed for reliable use with universal MATE-N-LOK connector housings. It supports wire sizes ranging from 16 AWG minimum to 24 AWG maximum and is rated for 10A current to meet standard electrical connector requirements.
This connector seal features multiple contact plating materials including phosphor, gold, bronze, brass, and tin, paired with tin plated copper alloy contact material to enhance conductivity and corrosion resistance. It is color-coded blue and is engineered to be splash proof and immersion proof under proper assembly conditions.
Effective sealing is achieved by using one interface seal together with two wire seals per connector, especially when mating two free-hanging connectors. In wire-to-board connections, a closed bottom header is required. Crimp contacts compatible with this seal include stock numbers 366-4376 or 366-4382. Available in configurations ranging from 2 to 15 way versions, this product is ideal for various electronics, electrical systems, industrial, and manufacturing applications requiring robust connector sealing.
Compatible with MATE-N-LOK series connectors rated for 10A current. Supports wire sizes from 16 AWG to 24 AWG. Utilizes phosphor, gold, bronze, brass, and tin plating for enhanced conductivity. Constructed of tin plated copper alloy for durability and corrosion resistance.
Operates reliably from -30°C to 105°C for varied environments. Color-coded blue for easy identification in assemblies. Seal assembly requires one interface seal and two wire seals per connector. Suitable for industrial, electronic, and electrical assembly applications.
This product is essential for ensuring secure and reliable electrical connections with effective wire sealing in industrial, laboratory, construction, HVAC, manufacturing, and commercial use cases. Explore wider selections of Connector Seals and accessories at EnvMart for optimized system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector seal is rated for a current of 10A.
It supports wire sizes ranging from 16 AWG minimum to 24 AWG maximum.
The contact material is made of tin plated copper alloy, and it utilizes various plating materials including phosphor, gold, bronze, brass, and tin for enhanced conductivity.
This model operates reliably within a temperature range of -30°C to 105°C.
The seal assembly requires one interface seal and two wire seals per connector for effective sealing, particularly when mating two free-hanging connectors.
It is color-coded blue for easy identification in assemblies, which helps in organizing and managing connections.
It is suitable for industrial, electronic, and electrical assembly applications, ensuring secure and reliable electrical connections.
This seal is compatible with MATE-N-LOK series connectors.
The country of origin for this connector seal is India.
Crimp contacts compatible with this seal include stock numbers 366-4376 or 366-4382.
The use of multiple contact plating materials enhances conductivity and corrosion resistance, which is important for reliable electrical performance.
Yes, this product is available in configurations ranging from 2 to 15 way versions.
