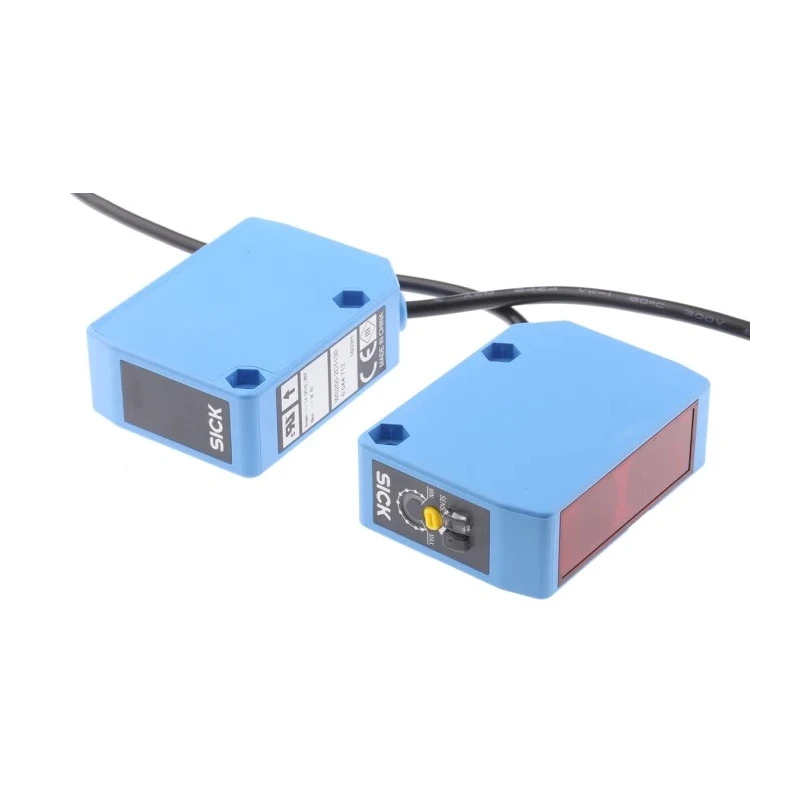

SICK Through Beam Photoelectric Sensor, Block Style, 50 m Detection Range, PNP Output, IP67, WSE250-2P1131
Specifications
| Country of Origin | China |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | LED |
| Detection range | 50 m |
| Model | WSE250-2P1131 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | ABS |
| Output type | PNP |
| Series | W250-2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Through Beam |
| Terminal type | Wire Cable |
| Maximum dc Voltage | 30V dc |
| Sensor Style | Block |
| Switch, sensor, photoelectric, thro beam, WS/WE250-P132Brand | Sick |
| Sick Through Beam Photoelectric Sensor, Block Sensor, 25 m Detection RangeBrand | Sick |
Key Features
- Glass-reinforced ABS housing with IP67 rating provides excellent durability.
- Visible red LED light for easy alignment and reliable detection.
- Panel mount design with mounting bracket included for simple installation.
- Selectable light/dark operating modes via control cable for versatile applications.
- Integrated potentiometer with positioning indicator allows precise sensitivity adjustment.
- Overload, reverse polarity, and short circuit protected for operational safety.
- Operating temperature range from -25°C to 55°C suitable for harsh conditions.
- Response time of 500 microseconds supports fast detection needs.
Product Description
SICK WSE250-2P1131 Through Beam Photoelectric Sensor features a robust block sensor style with a long detection range of 50 meters. This sensor employs PNP output and is housed in a glass-reinforced ABS casing rated at IP67, ensuring resistance to dust and water ingress.
The device is equipped with a visible red LED light source to facilitate accurate alignment and dependable sensing in various industrial settings such as automation, packaging, warehousing, wood industry, and manufacturing applications.
Designed for panel mounting, it includes a mounting bracket for easy installation. The sensor’s potentiometer with a positioning indicator allows for straightforward adjustment of sensitivity and sensing distance, accompanied by LED indicators providing immediate detection status feedback.
Protection features include overload, reverse polarity, and short circuit safety, enhancing reliability and reducing downtime.
The sensor supports selectable light/dark operating modes via a control cable, making it adaptable to multiple sensing scenarios. The operating temperature range from -25°C to 55°C, and a response time of 500 microseconds enable it to perform reliably in challenging environments.
The maximum operating voltage is 30V DC with a maximum current rating of 100mA. Coupled with IP67 protection, this sensor is designed for demanding industrial, laboratory, manufacturing, and automation uses.
Glass-reinforced ABS housing with IP67 protection. Visible red LED light source for reliable alignment and detection. Panel mount installation with included mounting bracket. Selectable Light/Dark operation modes. Potentiometer adjustable sensitivity with positioning indicator.
Overload, reverse polarity, and short circuit protection. Operating temperature range of -25°C to 55°C. Fast response time of 500 microseconds. Maximum DC voltage: 30V, maximum current: 100mA.
A suitable choice for automation, packaging, warehousing, and wood industry applications. Explore more sensors and automation control gear in EnvMart's Electronics & Electricals section.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is 50 meters.
It features a PNP output type.
The maximum operating voltage is 30V DC.
The response time is 500 microseconds.
It operates within a temperature range of -25°C to 55°C.
The housing is made from glass-reinforced ABS material.
This model is designed for panel mounting and includes a mounting bracket for easy installation.
Yes, it includes overload, reverse polarity, and short circuit protection for enhanced safety.
It uses a visible red LED light source for reliable alignment and detection.
Yes, it features an integrated potentiometer with a positioning indicator for precise sensitivity adjustment.
It is suitable for applications in automation, packaging, warehousing, and the wood industry.
The sensor has an IP67 rating, providing resistance to dust and water ingress.
