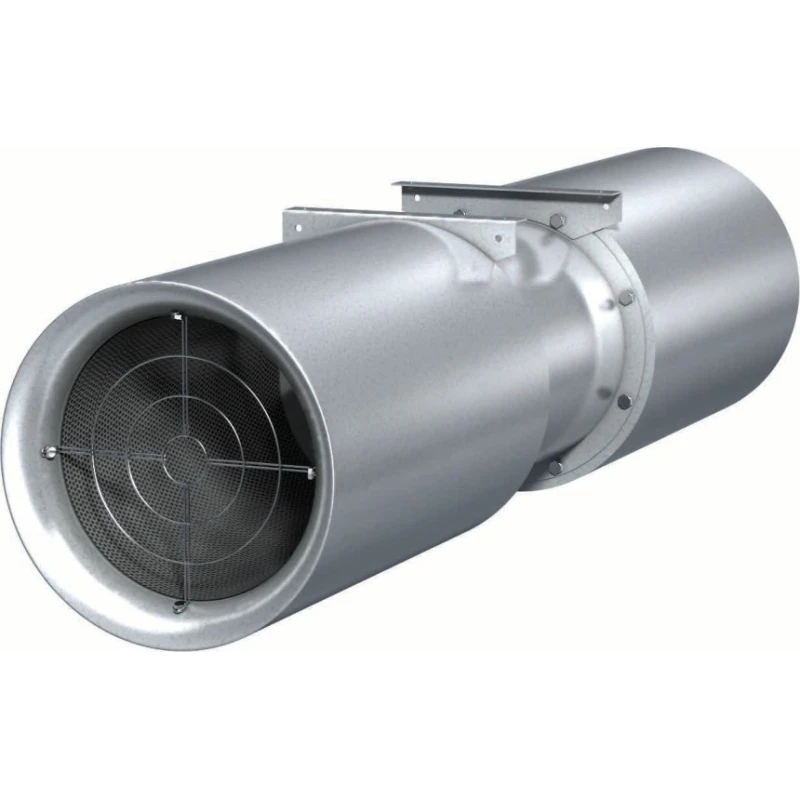

Jet Fans For Car Parks Tunnel Ventilation Unidirectional GJ-AU315P 3500/1770 RPM Frequency 60 Hz
Specifications
| Material | Aluminium SS |
|---|---|
| Applications | Industrial |
| Airflow CMH (CFM) | 4639/2320 (2730/1366 |
| Thrust N | 45468 |
| Operating Power kW (hp) | 0.74/0.09 (0.99/0.12) |
| Motor kW (hp) | 0.75/0.37 (1/0.50) |
| Sound dBA | 63/48 Sq |
Key Features
- Rust Proof
- Fine Finish
Product Description

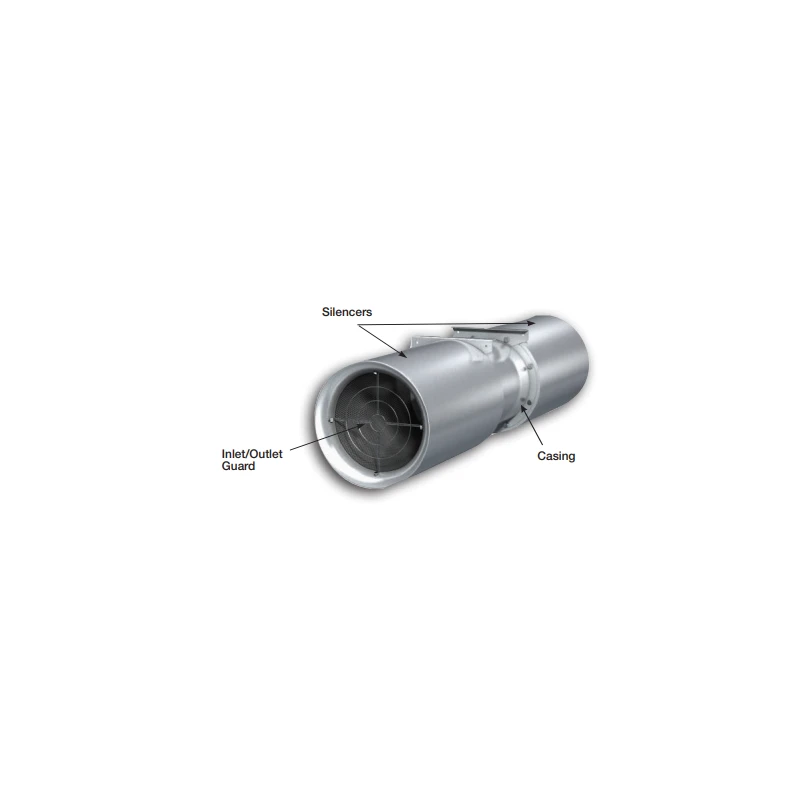

Jet Fans For Carparks Tunnel Ventilation Unidirectional Model GJ-AU315P, 3500/1770 RPM, Frequency (60 Hz) GreenJet series includes a range of fans to accommodate your need for car parkventilation. Available in both the unidirectional series (GJ-AU) and the reversible series(GJ-AR), both come standard with inlet and outlet silencers, inlet guards, mountingfeet and aluminum die cast propellers and blades. The GJ-AU series features a trueairfoil propeller which is designed to move high volumes of air at a highefficiency in a smaller diameter fan. The GJ-AR features a 100 percentreversible, highly efficient, airfoil blade designAluminum airfoil propeller: Move high volumes of air with maximum thrust and maximum efficiency. Galvanized casing: Continuously welded to prevent air leakage. Motor plate: Securely welded to fan inner tube to improve rigidity and prevent vibration. Silencers: Available in two options - short (one diameter length) and long (two diameter length). Direction vanes: Available on select models to direct airflow. Smoke extraction: 300C for 2 hours (F300 Certificate 370-CPR-1745) and 400C for 2 hours (F400Certificate 370-CPR-1848) available on select models. Tested and certified in accordance withEN12101-3:2002. IEC rated motors: 50 Hz or 60 Hz motors available, in single or two speed, VFD rated, and EFF2 orIE2 efficiency
- Easy to fit
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is designed for industrial applications, particularly for tunnel ventilation in car parks.
The thrust rating for this jet fan is 45468 Newtons.
The sound level of the GJ-AU315P is rated at 63 dBA at 3500 RPM and 48 dBA at 1770 RPM.
The fan is constructed from aluminum and stainless steel, ensuring a rust-proof finish.
This model operates with a motor power rating of 0.75 kW (1 hp) at 3500 RPM and 0.37 kW (0.5 hp) at 1770 RPM.
The GJ-AU315P operates at a frequency of 60 Hz.
The specific dimensions are not provided, but it is designed to be compact for efficient installation in tunnel environments.
This model is tested and certified in accordance with EN12101-3:2002, which relates to smoke and heat control systems.
