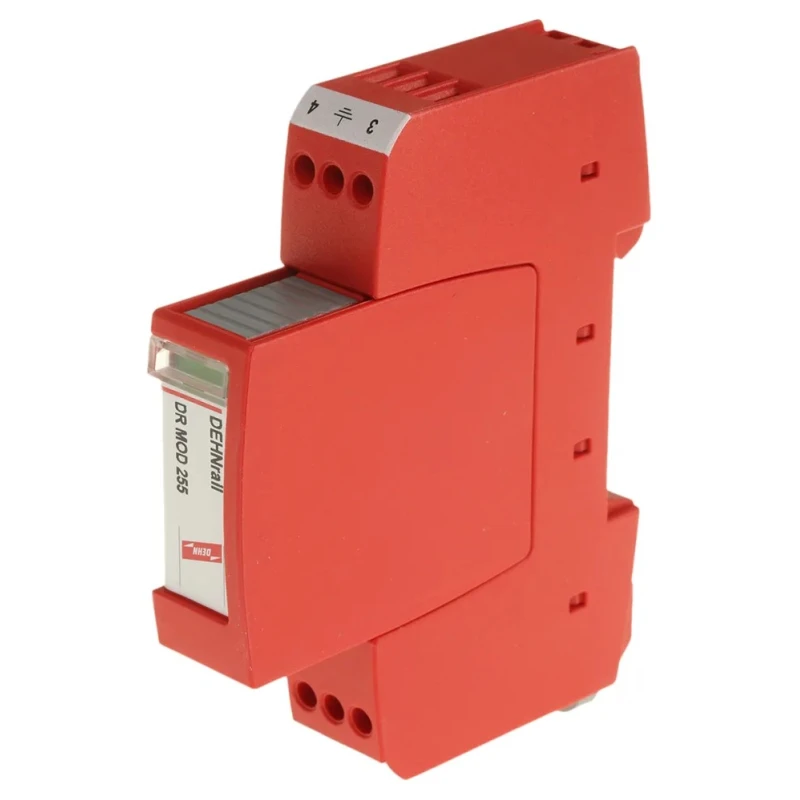

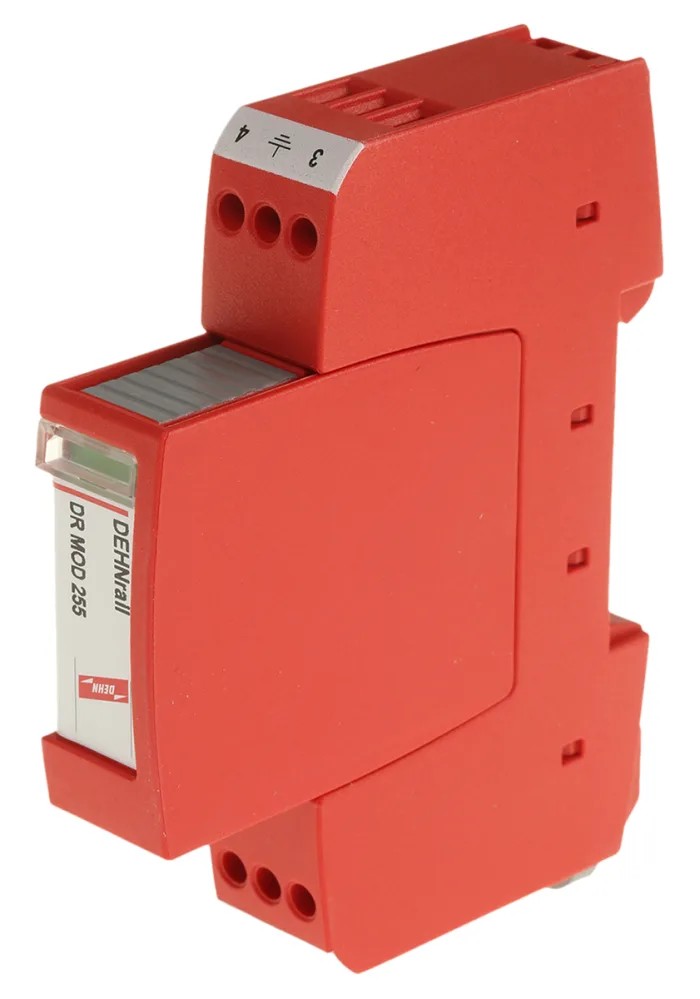

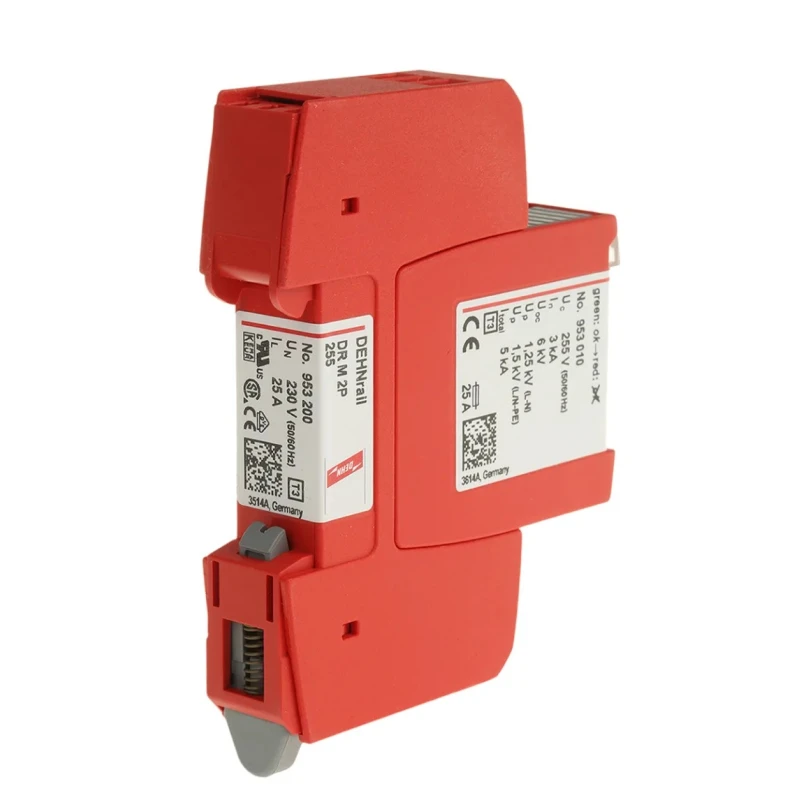

Dehn Modular Surge Protector 255V ac/dc Maximum Voltage Rating 5 kA Maximum Surge Current, DIN Rail Mount DR M 2P 255

Dehn DR M 2P 255 modular surge protector is specifically engineered for protecting electrical equipment against voltage surges and transient spikes up to 255 volts AC/DC. This device, rated for a maximum surge current of 5 kA, is a Type 3 (Class III) surge arrester designed for indoor use, typically mounted on DIN rails within distribution boards.

The surge protector utilizes a varistor and spark gap combination to provide superior high discharge current performance. Its modular design includes a base element with plug-in protection modules, allowing for tool-less replacement during repair or testing, minimizing downtime in industrial or commercial setups.

Energy coordination with other Dehn Redline products is in accordance with the BS7671 Amendment 1, ensuring harmonized protection across electrical systems. The device includes status indication through Thermo Dynamic Control, enabling real-time monitoring of surge protection device functionality.

Constructed to IP20 protection rating and housed in UL 94 V-0 thermoplastic, the unit provides reliable insulation and mechanical strength. Its compact dimensions (90mm length × 18mm depth × 66mm height) allow for efficient space utilization in installations.

The operating temperature range from -40°C to 80°C ensures suitability for a wide array of industrial, manufacturing, and commercial environments that require robust Surge Protection Components.

The product complies with international approvals and standards including KEMA, RoHS, VdS, VDE, UL, and CSA, reflecting conformity to stringent quality and safety benchmarks. Originating from Germany, this Dehn surge protector combines advanced technology with reliable build quality for critical surge protection needs.

Compact DIN rail mounting design suitable for distribution boards. High discharge current performance using varistor and spark gap combination. Tool-less replacement of protection modules for maintenance and testing. Energy coordination in accordance with BS7671 amendment 1.

Status indication using Thermo Dynamic Control for surge monitoring. Protected to IP20 with UL 94 V-0 thermoplastic housing. Wide operating temperature range from -40°C to 80°C. Compliance with KEMA, RoHS, VdS, VDE, UL, and CSA standards.

Manufactured in Germany. Explore more Dehn modular surge protectors and related surge suppressor units on EnvMart for comprehensive electrical protection solutions.
