Patlite LR4 Series Signal Tower Pole Mount LED 24V 1 Light Element Blue White Green Clear Amber Red LR4-102PJNU-R

Free Delivery in India | Lowest Global Shipping Charges

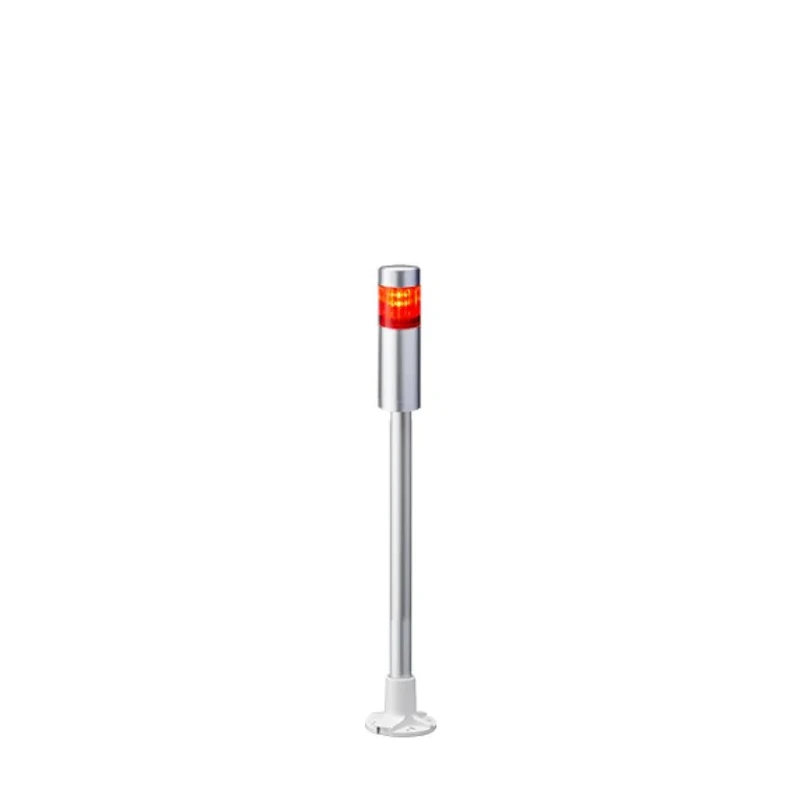

Patlite LR4 Series Signal Tower Pole Mount LED 24V 1 Light Element Blue White Green Clear Amber Red LR4-102PJNU-R

Name: Patlite LR4 Series Signal Tower Pole Mount LED 24V 1 Light Element Blue White Green Clear Amber Red LR4-102PJNU-R
Brand: PATLITE
SKU: 229520
Price: 20.22 USD
Availability: InStock



Category Electrical, Automation & Cables Brand PATLITE Condition New

Specifications

Country of Origin	Japan
Brand	Patlite
Height	429mm
Model	LR4-102PJNU-R
IP Rating	IP65
Mount Type	Pole Mount
Bulb Type	LED
Series	LR4
Maximum Operating Temperature	50°C
Current Type	DC
Current consumption	0.045, 250A
Minimum Operating Temperature	-20°C
Base Diameter	40mm
Terminal type	Cable
Lens Colour	Blue, White, Green, Clear, Amber, Red
Standards/Approvals	CSA-C22.2 No. 14, UL 508, UL Recognized Component (File No.E215660), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4,KN 61000-6-2), EMC (EN 61000-6-4,EN 61000-6-2), RoHS (EN 50581)
Maximum Supply Voltage	24V
Housing Colour	Silver
Light Effect	Steady
Sounder Type	No Sounder Component
Maximum Sound Level	90dB
Number of Light Elements	1
Connection Cable Length	3m
Multifunction	Yes, Yes
Four mounting options	Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only)

Key Features

The LED light ensures bright and clear signaling.
The modular design supports field customization and reconfiguration.
Features a pole mount construction with a 3-meter connection cable.
Operates reliably over a temperature range from -20°C to 50°C.
IP65 rated housing offers protection against dust and water.
Compatible with 24V DC current with low power consumption of 0.045 A.
Constructed with a silver housing color enhancing durability in harsh environments.
Approved under multiple safety and EMC standards including UL, CSA, FCC, KC, and RoHS compliance.

Product Description

Patlite LR4-102PJNU-R is a high-performance signal tower designed for industrial automation signaling with a single LED light element featuring colors blue, white, green, clear, amber, and red. It operates on 24V DC and is mounted on a pole for optimal visibility and secure installation in industrial environments.

This signal tower incorporates a modular "Twist and Lock" system allowing easy field customization and reconfiguration to meet diverse application needs. The lens is redesigned for bright and even light output achieving visibility from long distances with a luminous intensity of approximately 2000 mcd.

The device is engineered for harsh environments with an IP65 rating ensuring reliable protection from dust and water ingress. Its silver housing is robust and provides enhanced durability. Operating temperature range from -20°C to 50°C supports diverse industrial climates.

The signal tower consumes a low current of 0.045 A and is compliant with global safety and electromagnetic compatibility standards including CSA-C22.2 No. 14, UL 508, FCC Part 15 Class A, KC, and RoHS. It has a maximum sound level rating of 90 dB but does not include a sounder component, suitable for silent signaling setups.

The tower's dimensions comprise of a 429 mm height and 40 mm base diameter, making it suitable for space-conscious industrial applications. The connection cable length is 3 meters, providing flexibility in installations.

Bright, steady LED light with multi-color options for clear signaling. Modular construction with "Twist and Lock" system for easy assembly and customization. Robust silver housing with IP65 rating for harsh industrial environments.

Low power consumption ensuring energy-efficient operation. Wide operating temperature range of -20°C to 50°C for versatile use. Complies with international safety and EMC standards. Silent operation due to no sounder component included.

Compact dimensions with 429 mm height and 40 mm base diameter. 3-meter cable length for flexible mounting options. Multiple mounting options available including pole mount with brackets (off-white body option).

This Patlite LR4 Series signal tower model LR4-102PJNU-R is ideal for manufacturing lines, water treatment plants, construction sites, HVAC systems, and other commercial or industrial automation signaling applications that demand reliable visual status indication. Explore EnvMart’s comprehensive automation signaling category for related components and mounting accessories.

Explore more products in our Electrical, Automation & Cables category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating temperature for this model is 50°C.

This unit has a height of 429 mm and a base diameter of 40 mm.

It supports pole mounting and includes options for direct mounting, pole with L-bracket, pole with circular bracket, and pole with folding bracket (off-white only).

The current consumption of this model is 0.045 A.

It has an IP65 rating, which provides protection against dust and water ingress.

This model complies with CSA-C22.2 No. 14, UL 508, FCC Part 15 Class A, KC, and RoHS standards.

The minimum operating temperature is -20°C.
