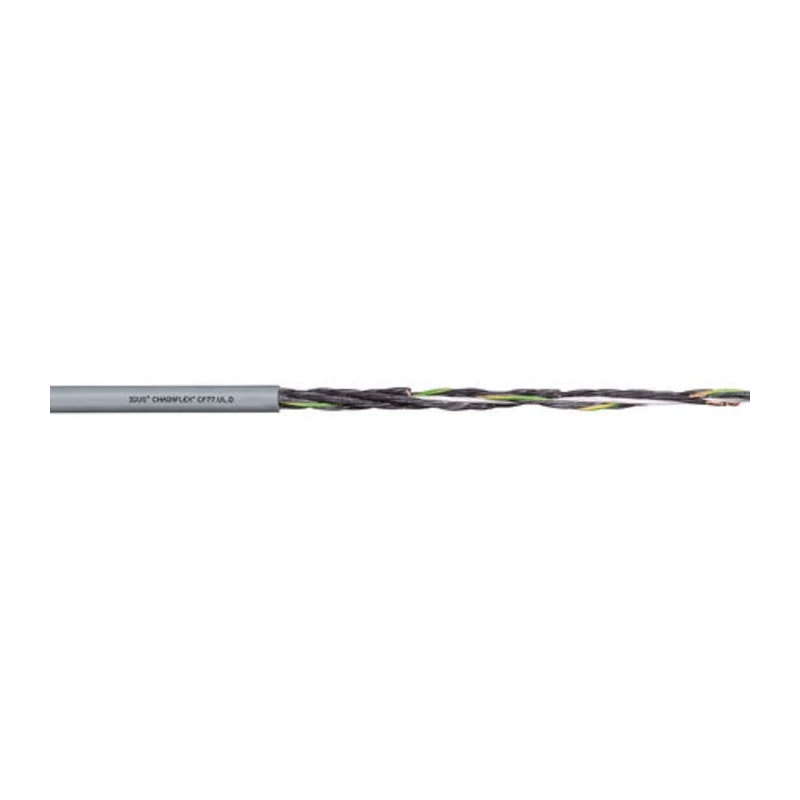

Igus chainflex PUR Control Cable 36 Cores 0.75mm² 18 AWG Unscreened Thermoplastic Elastomer Sheath 25m CF77.UL.07.36.D
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Igus |
| Model | CF77.UL.07.36.D |
| Cable Length | 25m |
| Series | chainflex CF77.UL.D |
| Outside diameter | 19mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 36 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -35°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free, Flame Retardant |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 0.75mm² |
| Core insulation | mechanically high-quality TPE mixture |
Key Features
- Constructed with bare copper stranded conductors for excellent conductivity.
- Sheathed with oil-resistant, halogen-free, flame-retardant thermoplastic elastomer.
- Designed for high mechanical loads and suitable for freely suspended application up to 100 meters travel.
- Operating temperature range from -35°C to 80°C ensuring wide environmental compatibility.
- Certified and compliant with EN and CE standards for industrial applications.
- Armoured design offers robust protection during installation and use.
- Compatible for automation and control systems requiring reliable signal transmission.
- Halogen free and flame retardant for safety in industrial environments.
Product Description
Igus CF77.UL.07.36.D chainflex PUR Control Cable is a heavy-duty control cable designed for industrial and automation applications requiring high mechanical endurance and reliability. It features 36 cores with 0.75mm² (18 AWG) stranded bare copper conductors, enclosed in a grey thermoplastic elastomer sheath that provides oil resistance, coolant resistance, and flame retardance in accordance with IEC 332-1, CEI 20-35, FT1 standards.
Rated for 300V operation and capable of withstanding temperatures from -35°C to 80°C, this unscreened, armoured cable is particularly engineered for use in freely suspended and gliding travel distances up to 100 meters, making it suitable for robotics, machinery, and automation control systems. The core insulation is composed of a high-quality TPE mixture ensuring mechanical durability and flexibility.
The cable's construction ensures it is free from PVC and halogen materials, enhancing safety by minimizing toxic emissions and flame propagation risks in case of fire. The cable meets EN and CE standards and is manufactured in Germany, reflecting high build quality and adherence to European certifications.
35 cores with a conductor cross-section of 0.75mm² and 18 AWG stranded bare copper. Grey thermoplastic elastomer sheath offering oil and coolant resistance. Armoured design ensuring robust mechanical protection. Unscreened configuration optimized for control and signaling in industrial environments.
Rated voltage of 300V with temperature range from -35°C to 80°C. Halogen free and flame retardant for enhanced safety. Complies with EN and CE industrial standards. Manufactured in Germany to high-quality standards.
This cable is ideal for industrial automation, machinery, process control, and other applications requiring reliable, flexible, and safe control cabling solutions. For professional setups and reliable performance, Igus's chainflex PUR control cables deliver consistent operational reliability under challenging conditions.
Explore more in the Control Cable category at EnvMart for compatible accessories and additional industrial cabling solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this control cable is 80°C.
This model features 36 cores.
The cable is rated for operation at 300V.
It is constructed with bare copper stranded conductors and sheathed in a thermoplastic elastomer that is oil-resistant and flame-retardant.
The length of the cable is 25 meters.
The outside diameter of this model is 19mm.
The cable is designed for high mechanical loads and can be used in environments with temperatures ranging from -35°C to 80°C, making it suitable for various applications, including outdoors.
It complies with EN and CE standards, ensuring it meets industrial application requirements.
The core insulation is made from a mechanically high-quality TPE mixture, providing durability and flexibility.
The cable is halogen-free and flame-retardant, enhancing safety in industrial environments.
This cable is suitable for industrial automation, machinery, and process control applications that require reliable signal transmission.
The minimum operating temperature of this control cable is -35°C.
