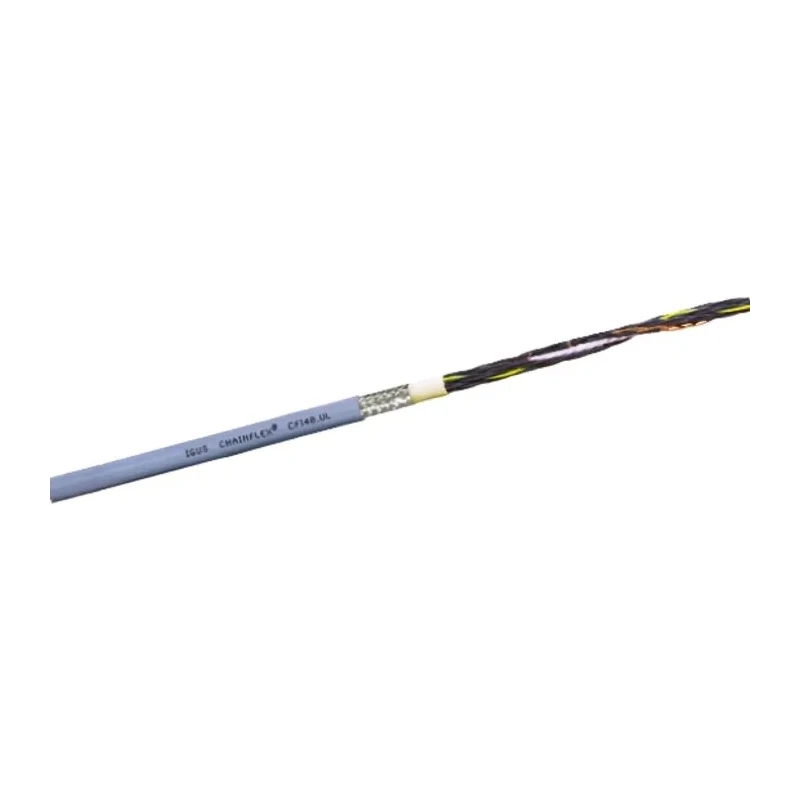

Igus Chainflex CF140.UL Screened Control Cable 4 Cores 0.75mm² 18 AWG Thermoplastic Elastomer Sheath Grey 25m CF140.07.04.UL
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF140.07.04.UL |
| Cable Length | 25m |
| Series | Chainflex CF140.UL |
| Outside diameter | 9mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 0.75mm² |
Key Features
- The cable has a thermoplastic elastomer grey sheath ensuring durability.
- Conductors are fine-wire stranded bare copper wires compliant with EN 60228.
- Suitable for indoor usage, especially for freely suspended travel distances up to 50 meters.
- Operating temperature range from -5°C to 70°C, allowing use in varied environments.
- Flame retardant as per IEC 60332-1-2, CEI 20-35, FT1, VW1-1 standards.
- The cable is screened and armoured for enhanced protection.
- Complies with EN and CE standards ensuring quality and safety.
- Packaged as a 25 meter reel for efficient installation and handling.
Product Description
Igus Chainflex CF140.UL Control Cable model CF140.07.04.UL is a high-quality screened control cable designed for medium load industrial applications. Featuring 4 cores with a conductor cross-section of 0.75mm² (18 AWG), this cable offers excellent flexibility and durability thanks to its fine-wire stranded bare copper conductors manufactured per EN 60228 standards.
The outer jacket is made of grey thermoplastic elastomer, providing robust mechanical protection and resistance against oils and environmental stress. This cable is especially designed for indoor operations and freely suspended travel distances of up to 50 meters, making it ideal for moving machine parts and gliding applications.
Rated for 300 to 500 volts, with an operating temperature range from -5°C to 70°C, the CF140.UL cable also features a flame-retardant design conforming to IEC 60332-1-2, CEI 20-35, FT1, VW1-1 standards. It is screened and armoured for enhanced resistance to electromagnetic interference and mechanical stress.
This Control Cable excels in industrial automation, electrical power distribution, and control systems requiring reliable signal integrity and resistance to harsh operational conditions.
The thermoplastic elastomer sheath enhances flexibility and protection. Fine-wire stranded bare copper conductors ensure high conductivity and flexibility. Screened construction minimizes electromagnetic interference. Armoured design provides mechanical protection for industrial environments.
Flame retardant cable suitable for safety-critical applications. Voltage rating suitable for a wide range of electrical equipment. Suitable for freely suspended and gliding applications up to 50 meters in length. Compliant with industry standards including EN and CE certifications.
Cable length is 25 meters, facilitating manageable installation.
This product is made in Germany and is supplied in new condition. Explore more high-quality industrial cables and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductors are made of fine-wire stranded bare copper, compliant with EN 60228 standards.
The maximum operating temperature is 70°C.
This control cable is rated for voltages of 300 to 500 volts.
The cable is packaged as a 25 meter reel for efficient installation and handling.
This model features 4 cores.
The outer jacket is made of thermoplastic elastomer, providing robust mechanical protection.
This cable is designed for indoor usage, especially for freely suspended travel distances up to 50 meters.
It conforms to IEC 60332-1-2, CEI 20-35, FT1, and VW1-1 standards for flame retardancy.
The outside diameter of the cable is 9mm.
This control cable is suitable for industrial automation, electrical power distribution, and control systems requiring reliable signal integrity.
The cable complies with EN and CE standards, ensuring quality and safety.
This product is made in Germany.
