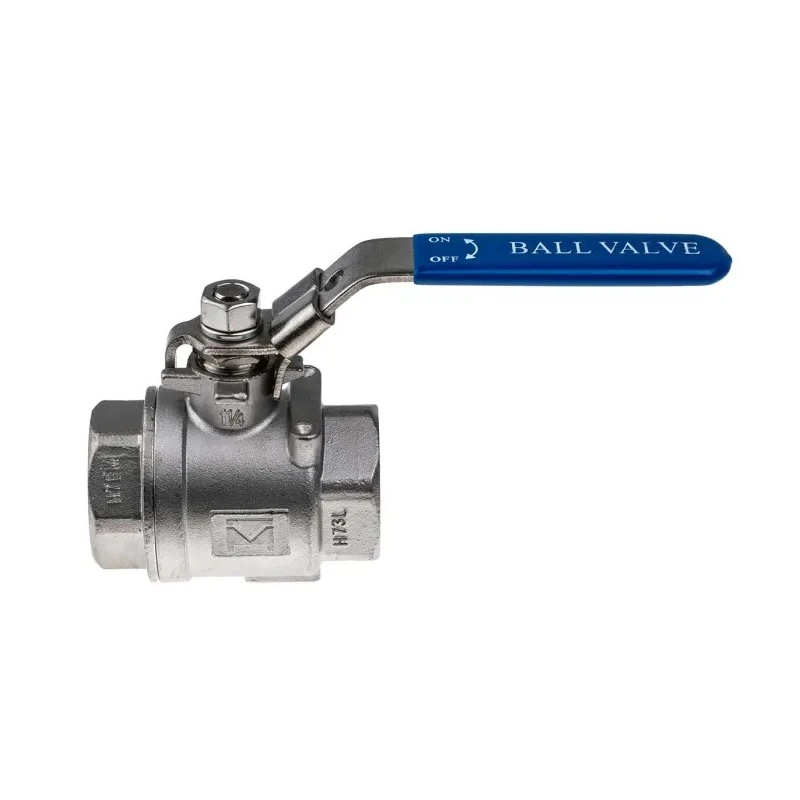

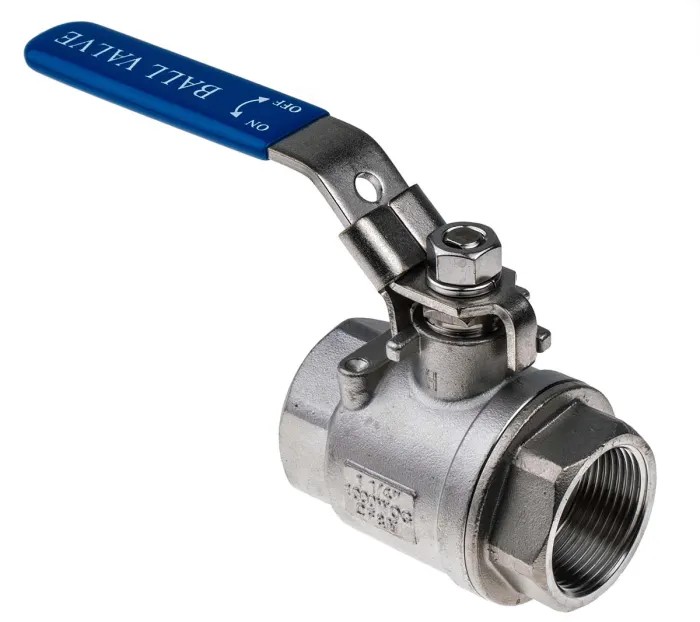

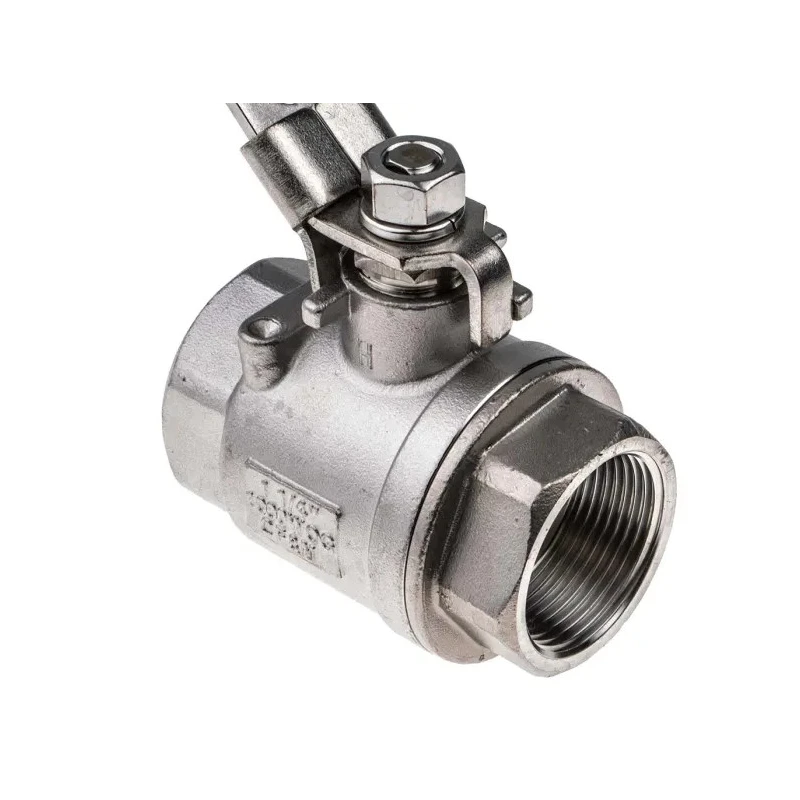

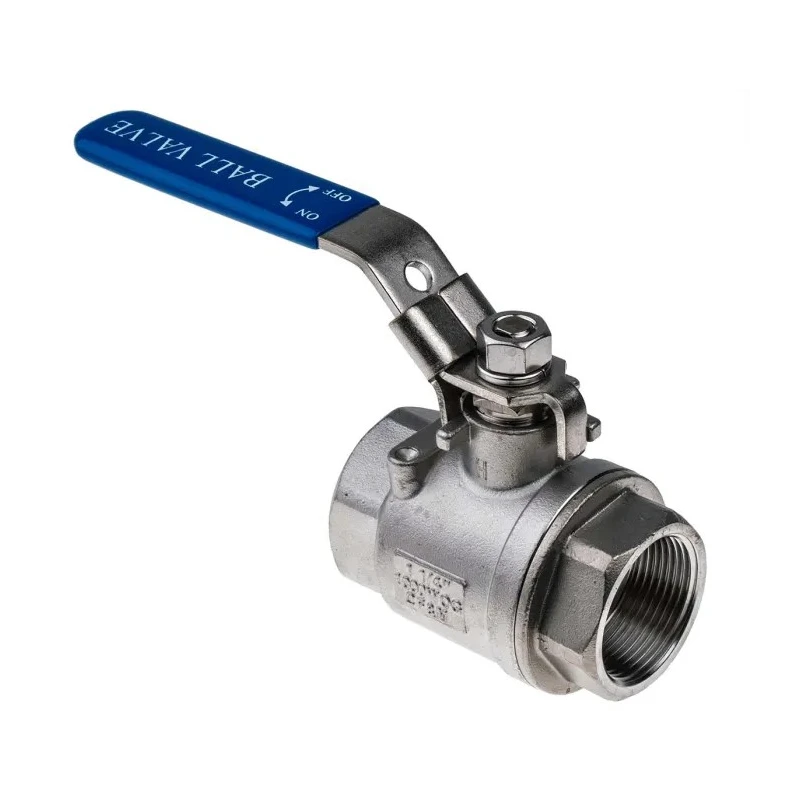

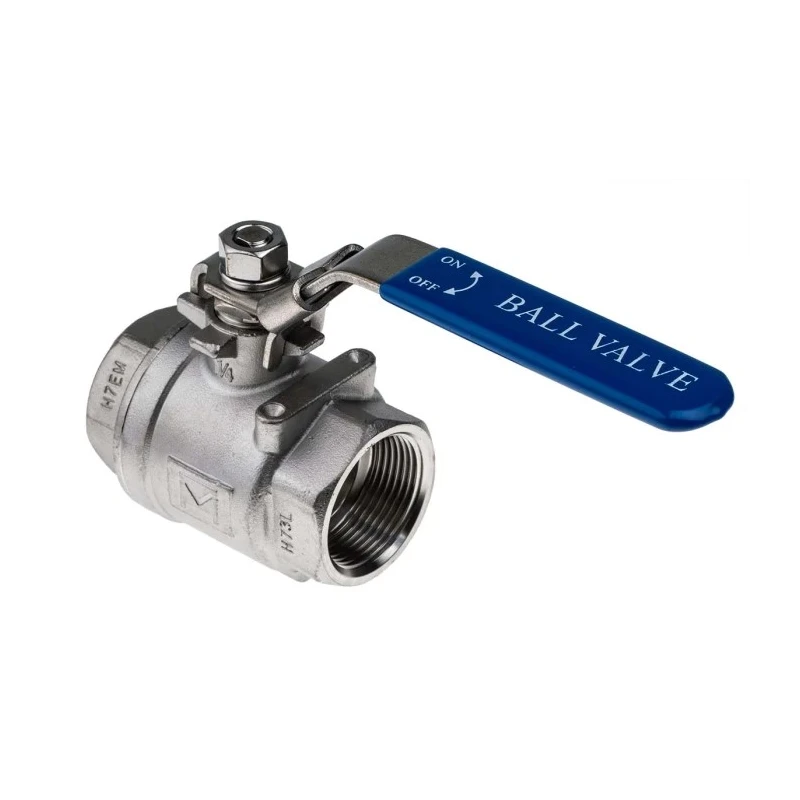

RS PRO Stainless Steel Threaded Full Port Ball Valve 1-1/4 Inch BSPP 69 Bar A351-CF8M

RS PRO A351-CF8M model threaded full port ball valve is constructed from high-grade ASTM A351-CF8M stainless steel, ensuring outstanding corrosion resistance and strength for demanding industrial environments. This 1-1/4 inch BSPP female threaded valve supports a maximum operating pressure of 69 bar and can handle operating temperatures from -20 degrees Celsius up to 200 degrees Celsius, making it suitable for a wide range of fluid control tasks.

The manual ball valve design features a robust stainless steel handle enabling quick quarter-turn operation for reliable shutoff and flow control. The full port configuration allows unrestricted flow, reducing pressure loss in pipelines and improving system efficiency.

This valve's two-piece assembly facilitates easy maintenance, cleaning, and inspection without requiring pipeline removal. Safety features include a blow-out proof stem to protect operators and an optional locking mechanism for secure valve positioning. The materials used for key components such as ball, stem, and gland ensure long-lasting durability in corrosive and high-temperature environments.

Designed according to ISO 5211 standards, the valve meets stringent quality and performance criteria and can be effectively used in applications involving water, air, gases, steam, chemical solutions, and petrochemical products. The valve complies with WOG 1000 rating, confirming suitability for water, oil, and gas service with a pressure rating equivalent to PN63.

Manufactured with ASTM A351-CF8M stainless steel body and cap for corrosion resistance. Stainless steel handle provides durability and ease of operation. Full port ball valve design offering minimal flow resistance. Maximum pressure rating of 69 bar and temperature operation from -20°C to 200°C.

Threaded BSPP female connections of 1-1/4 inch size for ease of integration. Two-piece valve design allows for simple disassembly and maintenance. Blow-out proof stem enhances operator safety during usage. Optional locking device available to secure valve position.

Certified to ISO 5211 standards ensuring industrial reliability. Ideal for usage in industrial pipelines, HVAC systems, water treatment plants, and chemical processing lines.

RS PRO ball valves are widely recognized for their performance in industrial applications demanding corrosion resistance, mechanical strength, and reliable flow control. This model’s size and specifications meet the requirements of medium pressure fluid management in commercial and manufacturing environments. Explore EnvMart’s extensive range of Industrial Valves for compatible and complementary products to complete your system design.
