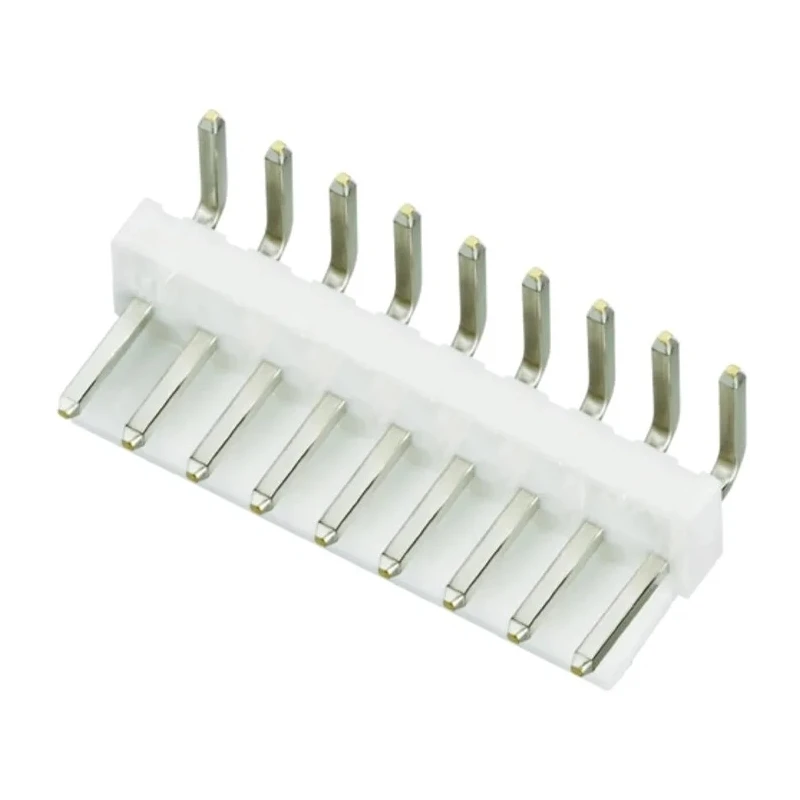

JST VH Series Right Angle Through Hole PCB Header, 9 Contacts, 3.96 mm Pitch, 1 Row, Shrouded B9PS-VH(LF)(SN)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Right Angle |
| Current | 10A |
| Temperature range | -25 → 85 °C |
| Model | B9PS-VH(LF)(SN) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | VH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Header Material | PA66 UL94V-0, natural |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 7.7mm |
Key Features
- Designed for secure wire-to-board connections with right-angle orientation.
- Suitable for use in signal, power supply, and output circuit applications.
- Constructed with polyamide housing and brass contacts plated with tin.
- Supports up to 10A current carrying capacity at 250V.
- Features a solder termination type for through-hole mounting on 1.6 mm thick PCBs.
- Operates reliably in temperature ranges from -25°C to 85°C.
- Includes a mating pin length of 7.7 mm for secure engagement.
- The shrouded design enhances protection and contact reliability.
Product Description
JST B9PS-VH(LF)(SN) VH Series Right Angle Through Hole PCB Header is a high-quality connector designed for reliable wire-to-board connections. This 1-row header features 9 male contacts arranged with a 3.96 mm pitch and a shrouded housing made of durable polyamide that meets UL94V-0 flammability standards. The compact right-angle design is optimized for signal and power supply circuits requiring secure mounting.
Featuring brass contacts plated with tin, this connector supports a continuous current of up to 10A at 250 volts, ensuring robust electrical performance. The header is intended for through-hole mounting on printed circuit boards that are 1.6 mm thick, providing strong mechanical stability. Operating temperatures range from -25°C to 85°C, enabling use in diverse industrial and commercial electronic applications.
The mating pin length of 7.7 mm provides reliable engagement with compatible VH Series crimp housings. The shrouded design offers enhanced protection against shorts and environmental influences, maintaining connection integrity over time. Typical applications include industrial electronics, manufacturing equipment, laboratory devices, and power supply modules.
Designed for secure wire-to-board connections with right-angle orientation. Suitable for use in signal, power supply, and output circuit applications. Constructed with polyamide housing and brass contacts plated with tin.
Supports up to 10A current carrying capacity at 250V. Features a solder termination type for through-hole mounting on 1.6 mm thick PCBs. Operates reliably in temperature ranges from -25°C to 85°C. Includes a mating pin length of 7.7 mm for secure engagement.
The shrouded design enhances protection and contact reliability.
This JST PCB header supports industrial, laboratory, manufacturing, and commercial electronics applications where compact and reliable connectors are critical. Explore our range of JST connectors and consider this model for integration into your designs and production.
Explore more products in our PCB Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current carrying capacity of 10A at 250V.
It operates reliably within a temperature range of -25°C to 85°C.
The header features 9 male contacts arranged in a single row.
The contact pitch is 3.96 mm.
It is designed for through-hole mounting on PCBs that are 1.6 mm thick.
The housing is constructed from polyamide, while the contacts are made of brass plated with tin.
The mating pin length is 7.7 mm, providing secure engagement with compatible crimp housings.
It features a solder termination type for secure connections.
This model is shrouded, which enhances protection and contact reliability.
It is suitable for signal, power supply, and output circuit applications in industrial, laboratory, and commercial electronics.
The housing material meets UL94V-0 flammability standards.
This header is part of the wire-to-board connector system.
