RS PRO Motorised Valve Stainless Steel Ball Valve 1000 psi 24Vdc Electric Actuator 760-5716

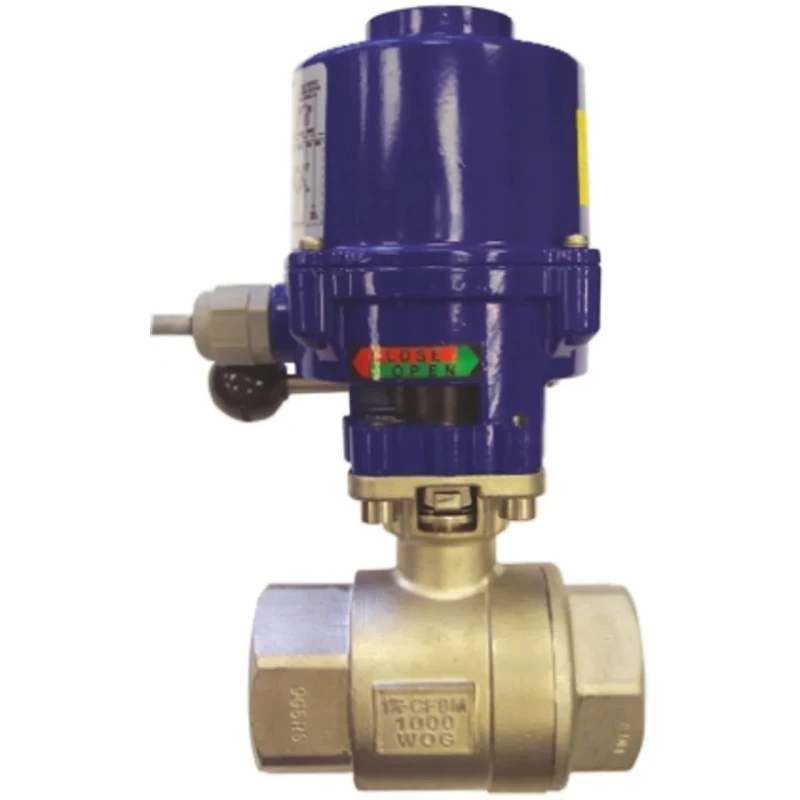

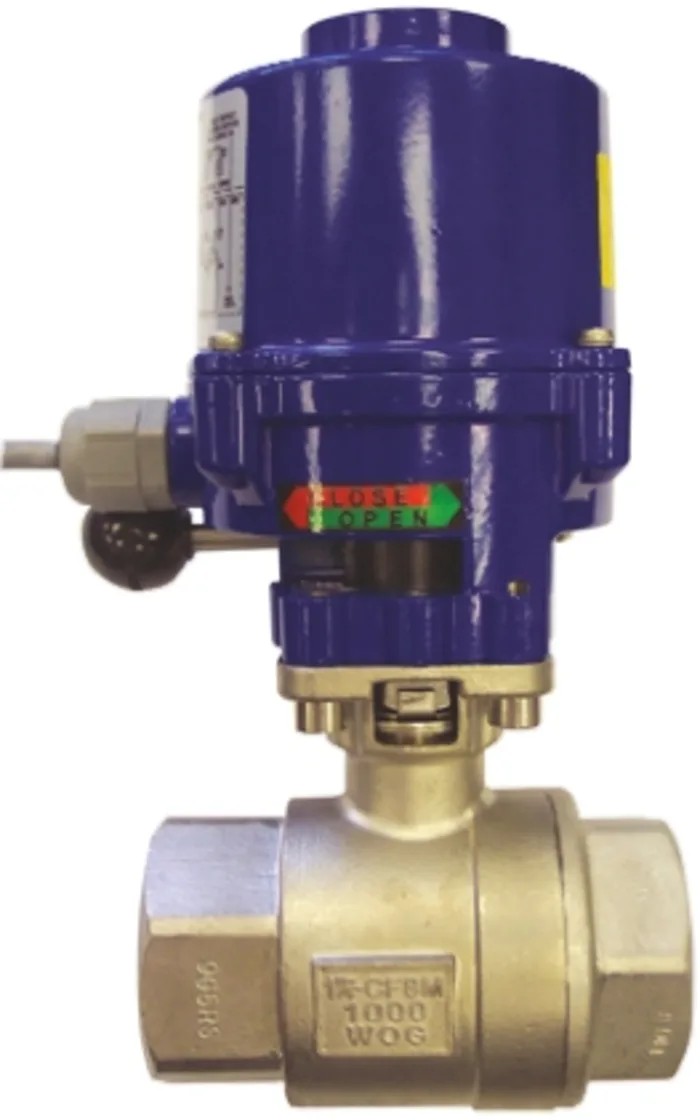

RS PRO 760-5716 Motorised Valve is a high-quality stainless steel ball valve integrated with an electric actuator designed for industrial fluid control applications requiring robust performance at pressures up to 1000 psi. Manufactured in the United Kingdom, the valve body uses CF8M grade 316 stainless steel, ensuring excellent corrosion resistance and mechanical strength. The ball and stem seals employ PTFE, providing tight shutoff and chemical resistance.

The electric actuator operates at 24 Vdc with multi-voltage compatibility including 95-240 Vac, enclosed within an IP67 rated weatherproof housing suitable for harsh industrial environments. The motorized control allows precise valve positioning with limit switches included for reliable open and close signal outputs, both standard and auxiliary with SPDT contacts rated at 250 Vac and 6 A.

Additional features such as LED indicators provide clear visual status of valve operation while a manual override push button and lever enable manual operation when necessary, enhancing operational safety and flexibility.

The valve and actuator assembly complies with ISO 5211 mounting standards, facilitating easy mounting and interchangeability. The conduit entry of PG11 with 3m flying lead and 11 wires supports convenient wiring installation.

This motorised valve is ideal for use in industrial, manufacturing, chemical processing, HVAC, water treatment, and fluid power systems requiring reliable automated flow control. The robust stainless steel construction and advanced actuator design support longevity and minimal maintenance in demanding conditions.

The valve body is constructed from CF8M - 316 stainless steel for enhanced durability. The ball is made of 316 stainless steel with PTFE seals for reliable performance. The actuator is weatherproof with an IP67 enclosure rating.

Multi-voltage compatible with 24Vdc and 95-240Vac options. Equipped with two SPDT limit switches for open/close control with 250Vac 6A rating. Includes auxiliary limit switches with identical specifications for added safety.

Features an LED lamp indicator to show valve open or close status. A manual override push button and lever are provided for manual control in power failure situations. Conduit entry includes one PG11 socket with a 3m flying lead and 11 wires for connection flexibility.

The valve body and bore conforms to ISO 5211 standards (F03/04/05) with an 11mm double square actuator interface. Explore the full range of motorised valves and industrial fluid control solutions at EnvMart for optimized system integration and performance.
