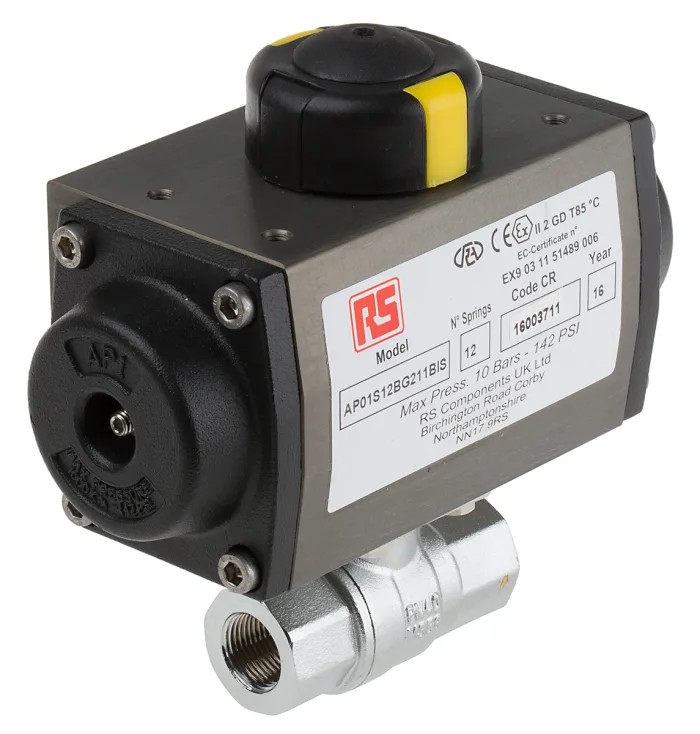

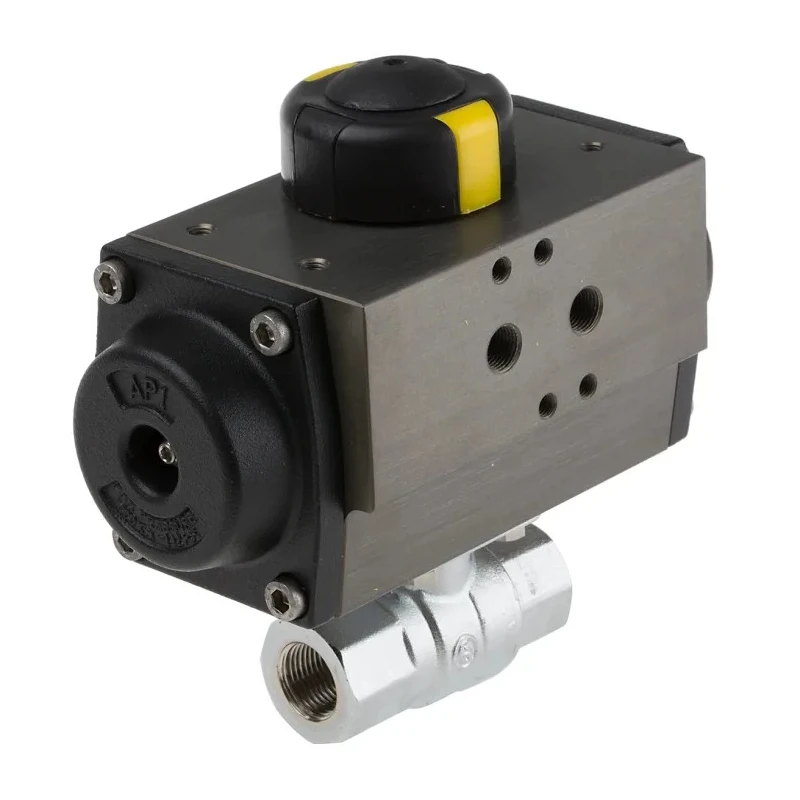

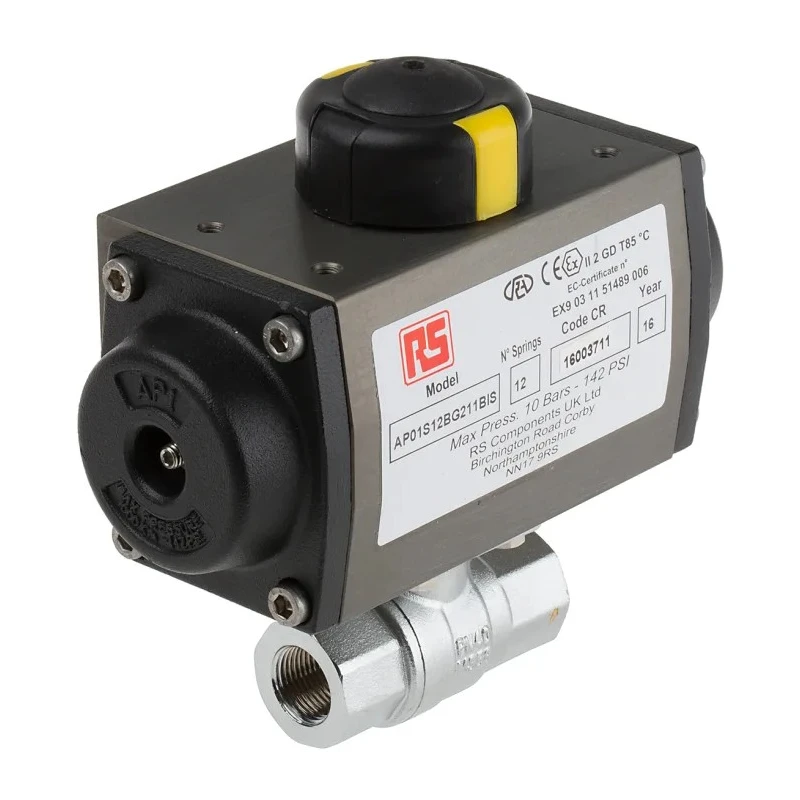

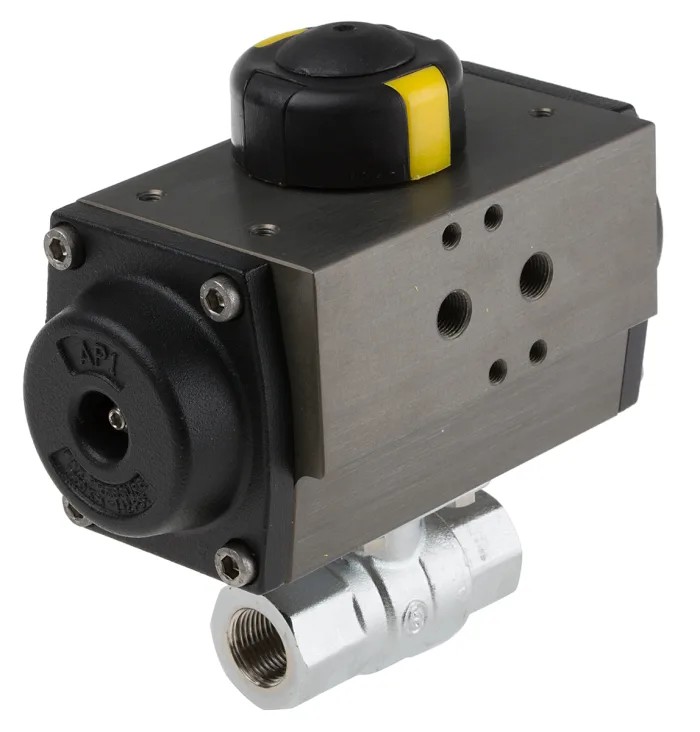

RS PRO Ball Type Pneumatic Actuated Valve 40 bar Female 3/8 in 760-5592
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Maximum Operating Pressure | 40 bar |
| Inlet Connection Type | Threaded |
| Model | 760-5592 |
| Valve Type | Ball |
| Valve Material | Hot Pressed Brass |
| Inlet Port Size | 3/8 in |
| Default Valve Position | NC |
| Inlet Port Gender | Female |
| Outlet Thread Standard | BSP |
| Return Type | Spring |
Key Features
- Valve features a brass ball and hot pressed brass body for durability.
- Double acting pneumatic actuator ensures precise valve control.
- Spring return type with normally closed valve position for safety.
- BSP threaded outlet standard compatible with existing industrial piping.
- Seat ring and body seal constructed from P.T.F.E. for chemical resistance.
- Stem ring uses Viton material and O-ring is made of NBR 70 sealing elements.
- Ideal for fluid power and pneumatic control applications in industrial environments.
- Manufactured in the United Kingdom ensuring high quality standards.
Product Description
RS PRO 760-5592 ball type pneumatic actuated valve is engineered for industrial fluid power systems requiring reliable flow control with valve rated up to 40 bar.
This valve features hot pressed brass construction for the body and end cap, with a chrome plated brass ball ensuring corrosion resistance and long service life. The pneumatic actuator is double acting to allow precise open/close operations while the valve default position is normally closed with spring return for fail-safe operation.
The female threaded 3/8 inch BSP inlet and outlet connections provide compatibility with standard piping systems in mechanical, construction, manufacturing, and water treatment sectors. Critical sealing components such as the seat ring and body seal are made from P.T.F.E., stem ring from Viton, and O-ring from NBR 70 to ensure excellent leak tightness and chemical resistance.
This valve is ideal for demanding pneumatic applications requiring high pressure tolerance, precision control, and durability. Manufactured in the United Kingdom, it meets rigorous quality and performance criteria.
Valve features a brass ball and hot pressed brass body for durability. Double acting pneumatic actuator ensures precise valve control. Spring return type with normally closed valve position for safety. BSP threaded outlet standard compatible with existing industrial piping.
Seat ring and body seal constructed from P.T.F.E. for chemical resistance. Stem ring uses Viton material and O-ring is made of NBR 70 sealing elements. Ideal for fluid power and pneumatic control applications in industrial environments.
Manufactured in the United Kingdom ensuring high quality standards. Explore more RS PRO pneumatic actuated valves and industrial valve solutions on EnvMart.
Explore more products in our Industrial Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 40 bar.
It features female threaded 3/8 inch BSP inlet and outlet connections, making it compatible with standard piping systems.
The valve is constructed from hot pressed brass for the body, with a chrome plated brass ball, and critical sealing components made from P.T.F.E., Viton, and NBR 70.
The default position of this valve is normally closed (NC), with a spring return for safety.
It uses a double acting pneumatic actuator that allows for precise open and close operations.
This valve is ideal for fluid power and pneumatic control applications in industrial environments, including mechanical, construction, manufacturing, and water treatment sectors.
This valve is manufactured in the United Kingdom, ensuring adherence to high quality standards.
The valve type is a ball valve, and the model number is 760-5592.
The seat ring and body seal are made from P.T.F.E., the stem ring uses Viton material, and the O-ring is made of NBR 70.
The return type of this valve is spring, which aids in its fail-safe operation.
While specific certifications are not mentioned, it meets rigorous quality and performance criteria due to its manufacturing standards.
The inlet port gender of this valve is female.
