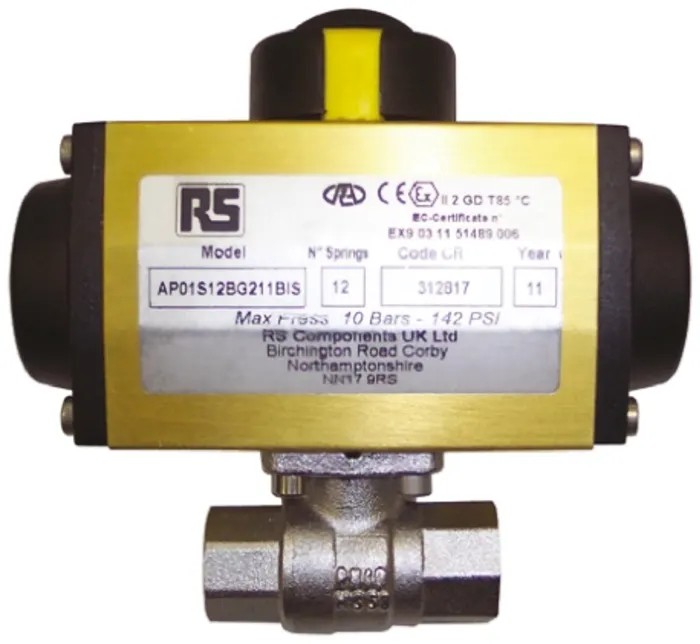

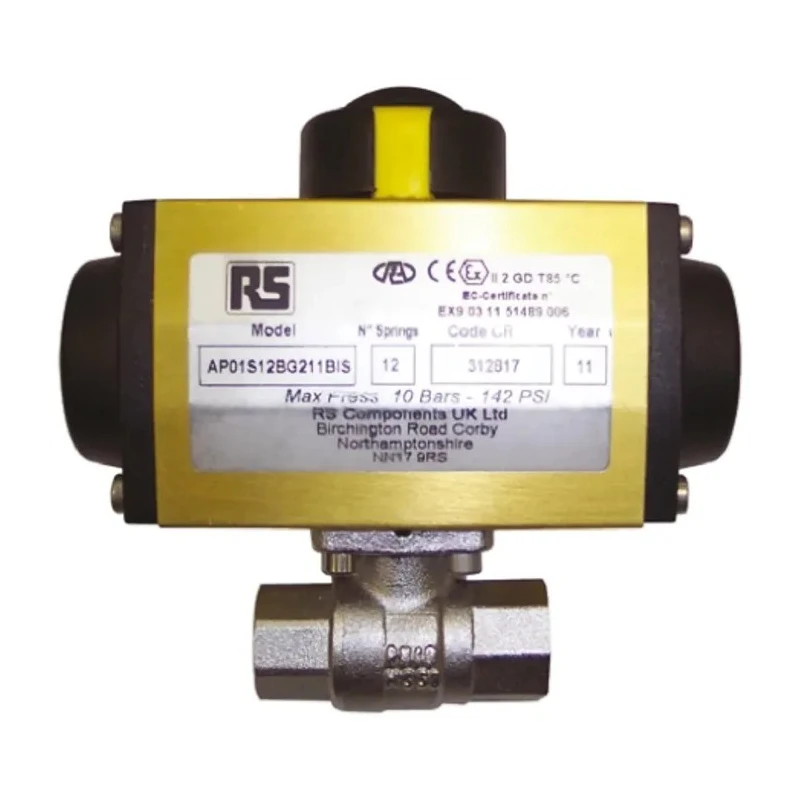

RS PRO Ball type Pneumatic Actuated Valve 40 bar BSP Female 2 in 760-5615
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Maximum Operating Pressure | 40 bar |
| Inlet Connection Type | Threaded |
| Model | 760-5615 |
| Valve Type | Ball |
| Valve Material | Hot Pressed Brass |
| Inlet Port Size | 2 in |
| Default Valve Position | NC |
| Inlet Thread Standard | BSP |
| Inlet Port Gender | Female |
| Return Type | Spring |
Key Features
- Constructed with hot pressed brass body and end cap for durability.
- Double acting pneumatic actuator with spring return operation.
- Brass chrome plated ball combined with P.T.F.E. seat ring for optimal sealing.
- Stem components include brass stem and Viton stem ring with NBR 70 O-ring for robust performance.
- Threaded BSP inlet and outlet connection types sized at 2 inches.
- Default valve position is normally closed, operated with spring return type.
- Body seals made of P.T.F.E. material ensuring chemical resistance.
- Manufactured in the United Kingdom with no additional standards or approvals specified.
Product Description
RS PRO 760-5615 Ball type Pneumatic Actuated Valve is engineered for precise control of fluid flow in industrial and mechanical systems. This valve is capable of handling pressures up to 40 bar, making it suitable for demanding applications such as manufacturing, water treatment, HVAC, and fluid power systems.
The valve features a robust hot pressed brass body and end caps, ensuring corrosion resistance and long service life. The internal ball is brass with chrome plating, paired with PTFE seat rings to provide tight sealing and reduce wear. The stem assembly incorporates brass and Viton materials with an NBR O-ring, offering excellent chemical and temperature resistance.
This device uses double acting pneumatic actuation with a spring return type, enabling reliable normally closed valve operation for safe system shutdowns and automated control. The inlet and outlet connections are both BSP threaded female, each sized 2 inches, facilitating universal installation compatibility within piping networks.
Manufactured in the United Kingdom, this valve does not specify any additional industry certifications or approvals but meets professional industrial valve standards. It is ideal for use in pneumatic systems requiring high pressure handling and reliable ball valve performance.
Constructed with hot pressed brass body and end cap for durability. Double acting pneumatic actuator with spring return operation. Brass chrome plated ball combined with P.T.F.E. seat ring for optimal sealing. Stem components include brass stem and Viton stem ring with NBR 70 O-ring for robust performance.
Threaded BSP inlet and outlet connection types sized at 2 inches. Default valve position is normally closed, operated with spring return type. Body seals made of P.T.F.E. material ensuring chemical resistance. Manufactured in the United Kingdom with no additional standards or approvals specified.
This pneumatic actuated valve is suitable for industrial, manufacturing, water treatment, and HVAC applications where precise fluid control and robust materials are required. Browse more RS PRO pneumatic actuated valves at EnvMart for comprehensive industrial solutions.
Explore more products in our Industrial Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum operating pressure of 40 bar, making it suitable for demanding applications.
It is a ball type pneumatic actuated valve designed for precise control of fluid flow.
The valve features a hot pressed brass body and end cap, with a brass chrome plated ball and P.T.F.E. seat ring for optimal sealing.
Both the inlet and outlet connections are BSP threaded female, sized at 2 inches.
The default valve position is normally closed (NC), operated with a spring return type.
It is suitable for industrial, manufacturing, water treatment, and HVAC applications requiring precise fluid control.
This valve uses double acting pneumatic actuation with a spring return operation.
It is manufactured in the United Kingdom.
The body seals are made of P.T.F.E. material, ensuring chemical resistance.
The stem assembly includes a brass stem and a Viton stem ring with an NBR 70 O-ring for robust performance.
This valve does not specify any additional industry certifications or approvals but meets professional industrial valve standards.
The inlet thread standard for this model is BSP.
