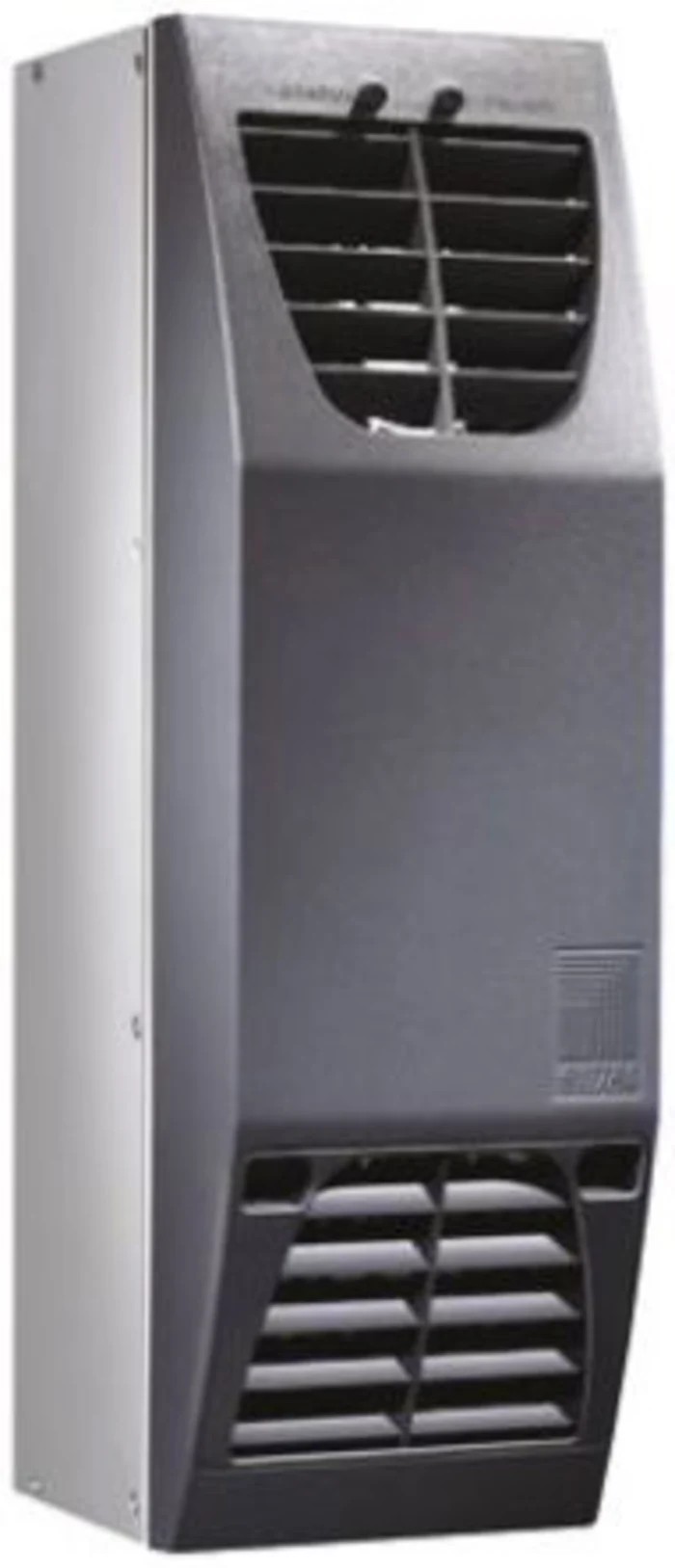

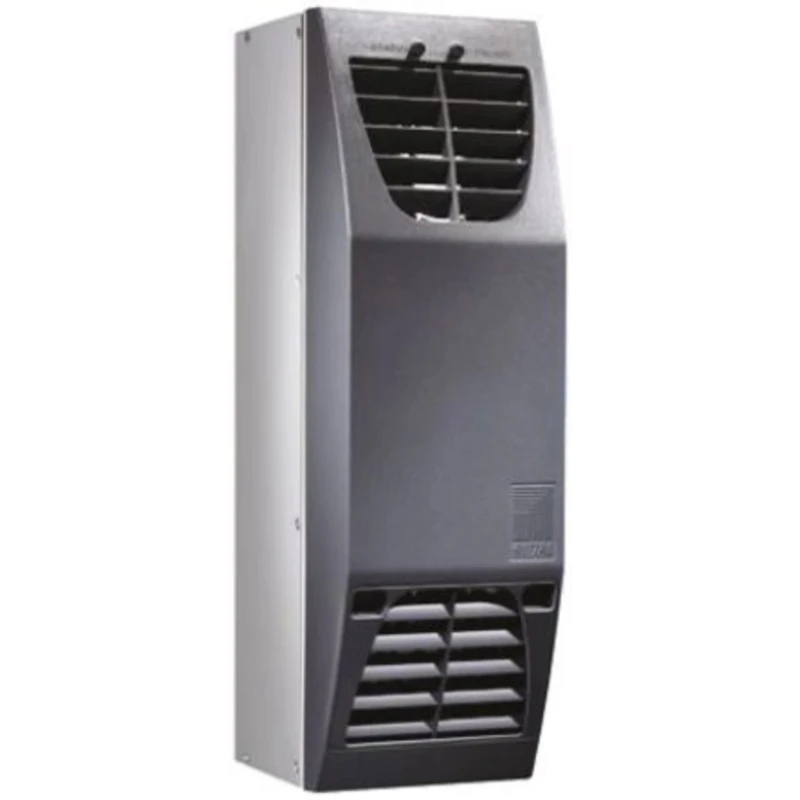

Rittal SK Series Wall-Mounted Thermoelectric Cooler 45 m³/h Airflow 100W Power 240V AC 400x125x155 mm 3201200

Rittal 3201200 Thermoelectric Cooler is a robust wall-mounted cooling solution designed for industrial, IT, and data center enclosure cooling applications. Featuring a maximum cooling power of 100W and air throughput rate of 45 m³/h, this cooler efficiently regulates temperature within enclosed systems to prevent overheating and maintain optimal operating conditions.

The unit operates on 240V AC with a power consumption of 80W and a nominal current of 1.9A. Its IP54 and IP34 rated anodised aluminium housing offers protection against dust and splashes, suitable for use in demanding environments. This durable construction ensures corrosion resistance and impact protection for extended service life.

The thermoelectric cooler provides a wide operating temperature range from -30°C to +55°C with temperature settings adjustable between 5°C and 20°C. Its plug-in spring connection terminal allows for quick and easy installation, while the wall-mount design makes it ideal for space-conscious setups.

This versatile device supports both cooling and heating functions, making it suitable for precise climate management in control devices, data centers, and IT industry applications. The unit comes fully wired and ready to connect, facilitating immediate and hassle-free deployment.

The cooler operates on 240V AC power with an input power rating of 100W and power consumption of 80W. It features a plug-in spring connection terminal for easy installation and an IP54, IP34 rated anodised aluminium housing.

The temperature setting range includes a minimum of 5°C and a maximum of 20°C, supporting a wide operating environment from -30°C to +55°C. The unit delivers cooling capacity of 80W with a nominal current of 1.9A and a frequency of 60Hz.

Its compact dimensions of 400 mm height, 125 mm width, and 155 mm depth make it suitable for compact enclosure cooling. The thermoelectric cooler complies with EAC certification and RoHS standards, ensuring environmental and safety compliance.

It is supplied fully wired and ready to install, optimized for industrial control devices, IT industry applications, and data centers.

Rittal is a trusted name in industrial cooling technology, and this SK Series cooler exemplifies their commitment to quality, efficiency, and durability. It is ideal for applications requiring reliable air conditioning in harsh or controlled environments.
