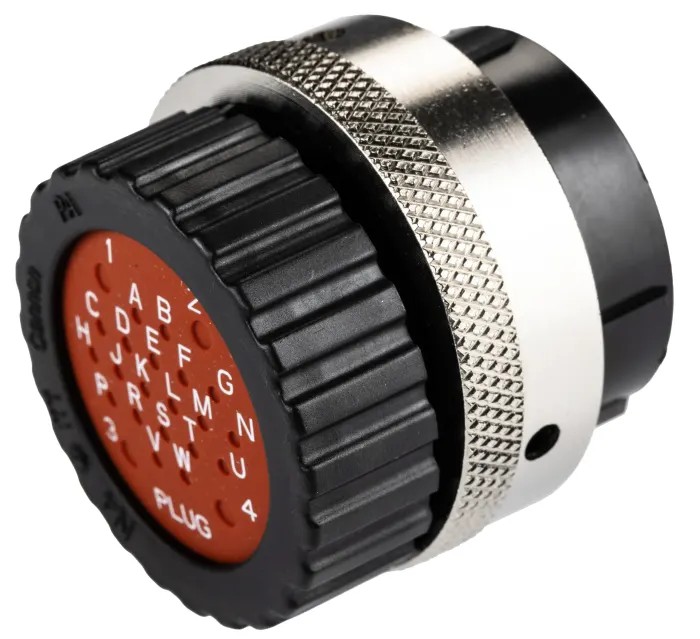

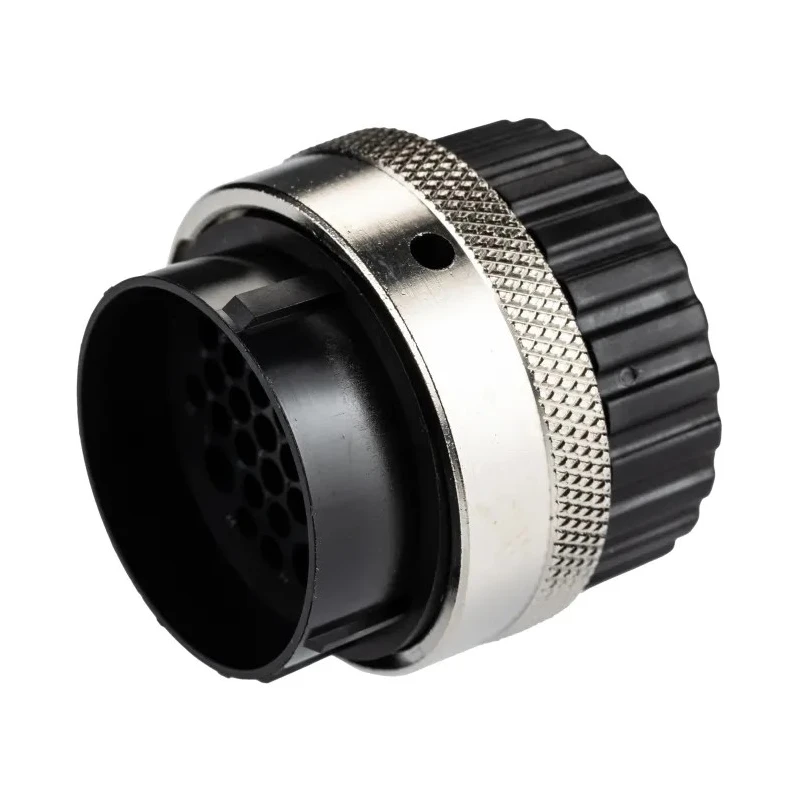

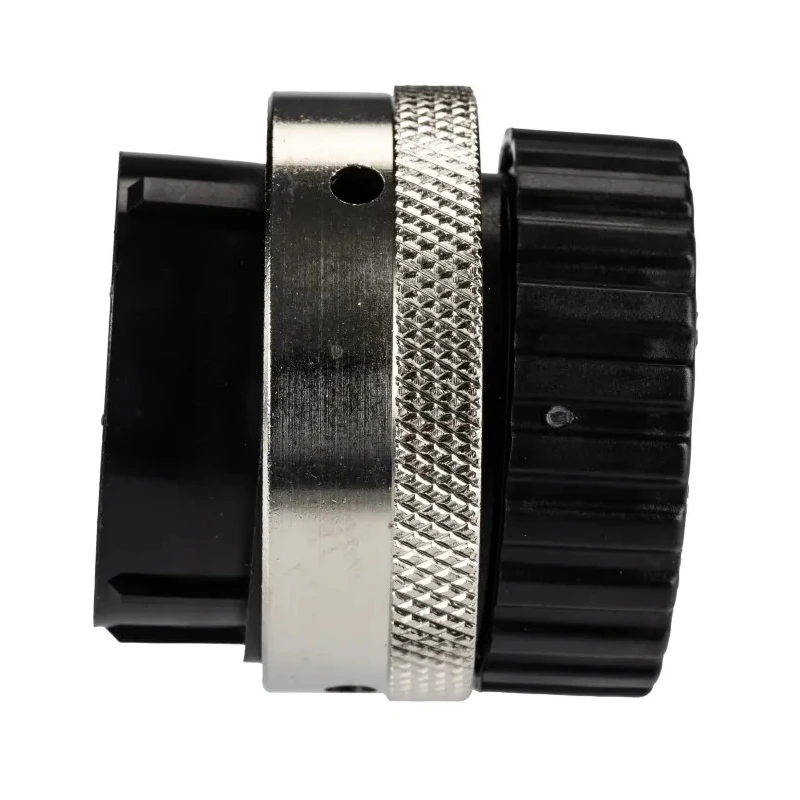

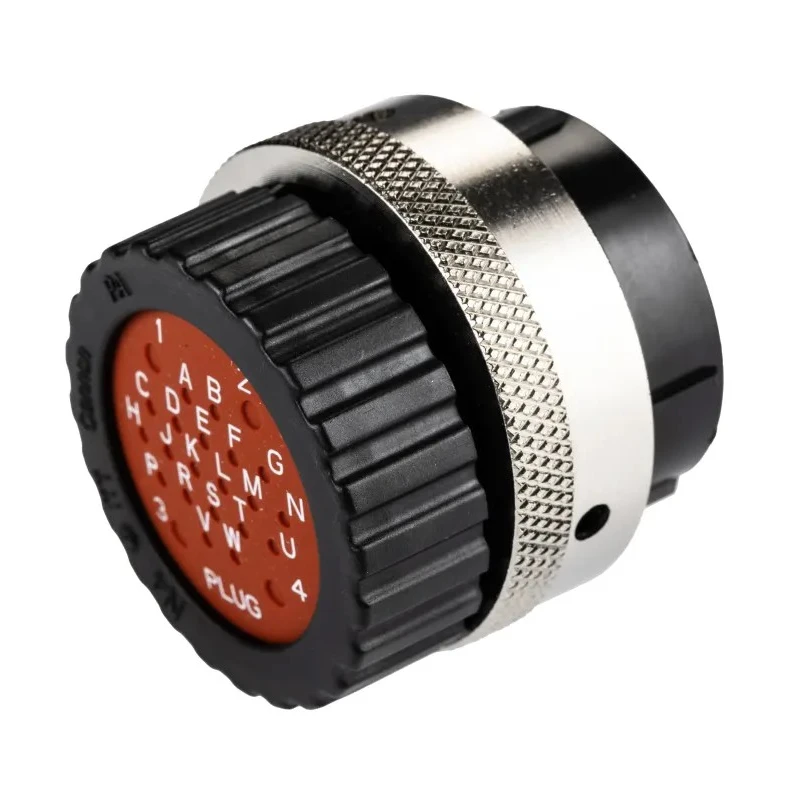

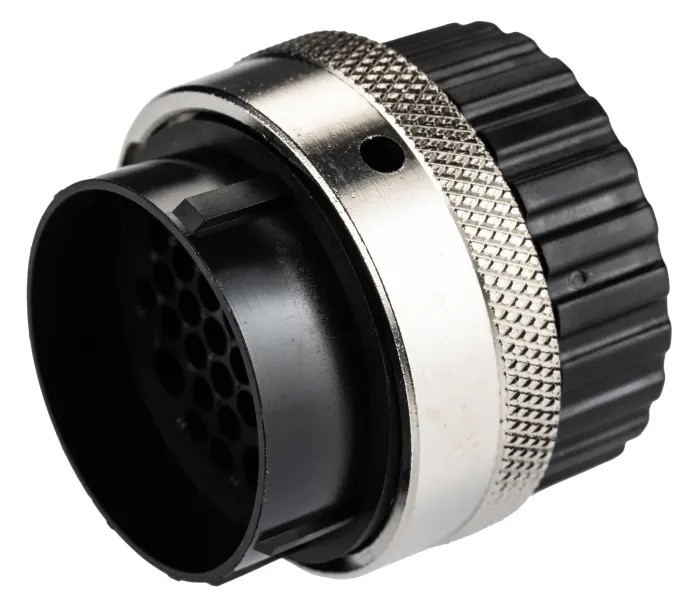

ITT Cannon Industrial Circular Connector, 24 Contacts, Cable Mount, Plug, Male, IP67, 250V TN6S24-0420P1L / 192900-0014
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 250V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 30A |
| Model | TN6S24-0420P1L / 192900-0014 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | Trident Neptune |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 24 |
| Contact Plating | Nickel |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shell Size | 24 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Rated IP67 for protection against dust and water ingress.
- Supports 30A current at 250V voltage rating.
- Features a bayonet mating type with straight orientation for secure connections.
- Housing is made of durable polymer ensuring long-lasting performance.
- Suitable for cable mount applications with crimp termination.
- Operates reliably between -55°C to 105°C temperature range.
- Contact material is copper with nickel plating to prevent corrosion.
- Ideal for industrial, automotive, marine, and outdoor electronic applications.
Product Description
ITT Cannon TN6S24-0420P1L / 192900-0014 is an industrial-grade circular connector with 24 contacts designed specifically for cable mount applications. Part of the Trident Neptune series, this connector is engineered for durability and reliable performance in harsh and demanding environments.
It is rated IP67, providing complete protection against dust ingress and water immersion, making it suitable for outdoor and industrial electronics, automotive, marine, and process control industries. The connector features a bayonet mating mechanism and a straight orientation that ensures a secure and stable connection.
The polymer housing offers strength and resistance against environmental factors, while the copper contacts with nickel plating provide excellent conductivity and corrosion resistance. Crimp type termination facilitates secure cable connections, compatible with wire insulation diameters between 1.7 to 4.0 mm depending on signal or power wires.
With an operating voltage of 250V and current rating of 30A, it supports a wide temperature range from -55°C to 105°C to suit various industrial applications.
The Trident Neptune series connectors include features like a metal coupling ring and membrane wire seals to maintain sealing integrity even under mechanical stress. This model is manufactured in Hungary, ensuring compliance and quality for demanding electrical connector needs.
Rated IP67 for dust and water protection. 24 contacts suitable for power and signal connections. Bayonet type mating ensures secure locking. Durable polymer housing designed for harsh environments. Supports 30A current at 250V voltage.
Wide operating temperature from -55°C to 105°C. Copper contacts with nickel plating for enhanced durability. Crimp termination for reliable cable connection. Ideal for automotive, marine, industrial, and outdoor electronics.
Trident Neptune series with metal coupling ring for high reliability.
This connector is an essential component in industrial electronics requiring robust, weatherproof connections with high current and voltage capacities. Browse the Industrial Circular Connector category on EnvMart for more connectors and accessories from ITT Cannon and other trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 30A and an operating voltage of 250V.
This model is rated IP67, providing complete protection against dust ingress and water immersion.
It operates reliably between -55°C and 105°C.
It features crimp termination for secure cable connections.
The housing is made of durable polymer, while the contacts are copper with nickel plating to prevent corrosion.
This model has 24 contacts suitable for power and signal connections.
It features a bayonet mating type, ensuring a secure locking mechanism.
The shell size is 24 mm.
It is manufactured in Hungary.
It is ideal for industrial, automotive, marine, and outdoor electronic applications.
The connector has a straight orientation.
This model is part of the Trident Neptune series.
