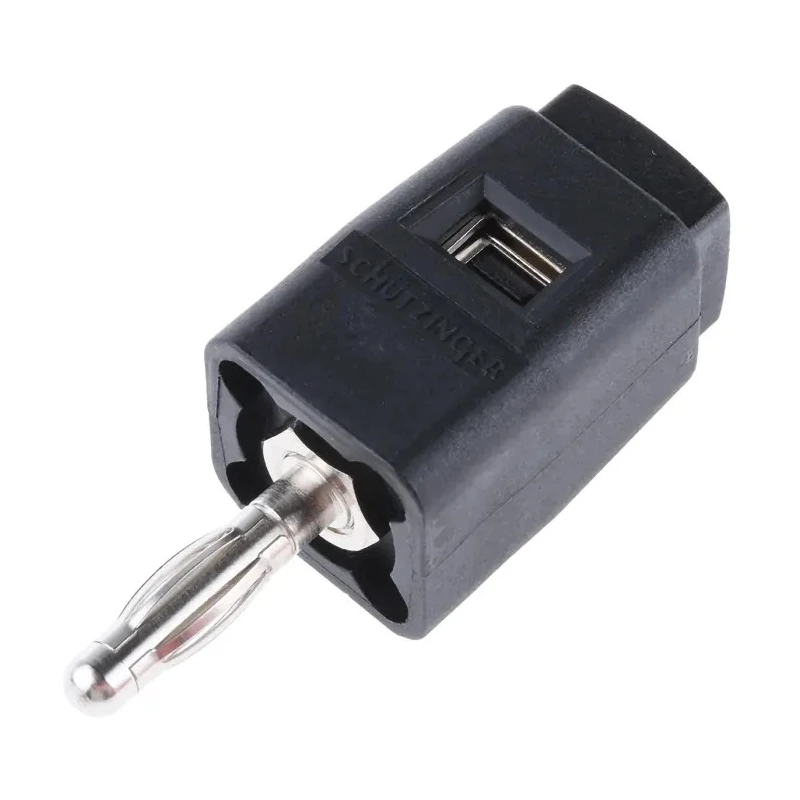

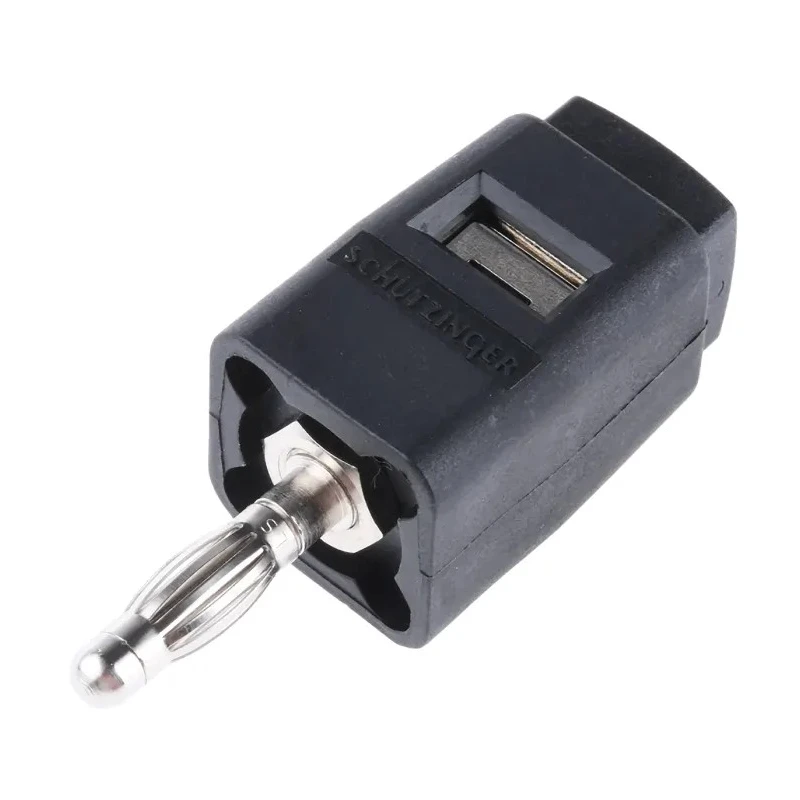

Schutzinger Black Banana Plug, 30 V ac, 60 V dc SDK 502 / SW

Schutzinger SDK 502 / SW Black Banana Plug, rated for 30 V ac and 60 V dc, is a precision electrical test connector engineered for quick release and secure contact with 4 mm sockets. It is designed primarily for use in electrical testing environments, laboratories, manufacturing, electrical maintenance, and electronic development where accurate and fast test connection is essential.

The plug features an 8 mm by 4 mm insertion window size and a 4 mm diameter for compatibility across the Schutzinger 4 mm Programme range. Its robust body is made from PA6.6 insulation material, providing flame retardancy and mechanical resilience for safe operation in diverse environments.

The connector's 20 N spring force ensures firm retention while enabling simple push-to-retain or release actions, facilitating effortless use during repetitive testing or connection tasks. It supports single-pole transmission, enabling clear signal and power transfer in various test and measurement devices.

Manufactured in Germany, the unit upholds strict quality standards synonymous with the Schutzinger brand.

This Banana Plug can be paired with a range of associated connectors typically identified by catalog numbers 753-1740, 753-1744, 753-1772, 753-1790, 753-1769, 753-1807, 753-1813, and 753-1637, allowing flexible integration into broader test setups.

The plug is suitable for industrial, laboratory, electrical test, and measurement applications. Provides reliable quick release connectivity with 4 mm sockets. Easy to use with push-to-retain or release mechanism. Made from durable PA6.6 insulation material ensuring safety and longevity.

Offers 20 N spring force for stable electrical contact. Supports single pole voltage and current transmission. Compatible with a wide range of Schutzinger 4 mm program connectors. Explore more in our Electronics & Electricals Connectors category for compatible test connectors and accessories to complete your electrical test setups.
