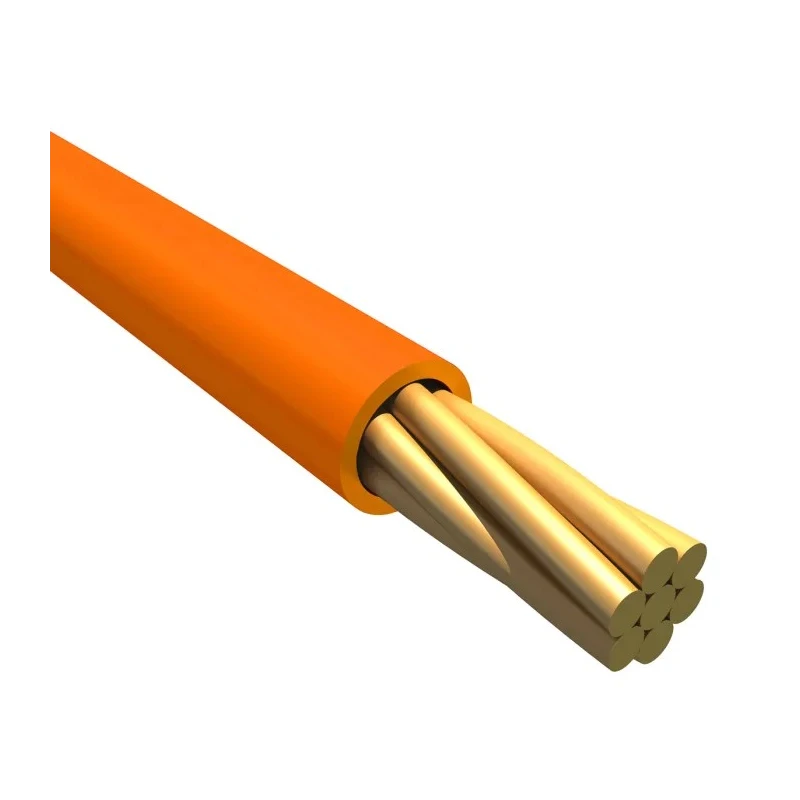

Alpha Wire EcoWire Plus 0.52 mm² Orange MPPE Hook Up Wire, 20 AWG, 7x0.32 mm Strands, 30 m, 300 V, Flame Retardant 6824 OR005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.52mm² |
| Model | 6824 OR005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.37mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.054 Inch (1.37 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 20 AWG (0.56 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Orange |
| Fire Behaviour | Flame Retardant, Low Smoke Halogen Free |
| American Wire Gauge | 20AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.32mm |
| Size of Strands | 0.32mm |
| Stranding | 7/28 (7 x 0.32) |
Key Features
- The wire has a 20 AWG (0.56 mm²) conductor size with 7 strands of 0.32 mm each.
- It features MPPE insulation, offering excellent fluid resistance and higher temperature tolerance.
- The cable length is 30 meters with an orange jacket color for easy identification.
- The wire operates safely at voltages up to 300 V and temperatures from -40°C to +110°C.
- The stranded copper conductors ensure flexibility and durability in industrial environments.
- The insulation is thin yet tough, enabling reduced wall thickness and lighter weight compared to PVC.
- Meets standards CE, ISO 6722, RoHS, and Reach compliant for environmental and safety regulations.
- Ideal for solar, transportation, wind power, industrial, and medical applications.
Product Description
Alpha Wire 6824 OR005 EcoWire Plus 0.52 mm² Hook Up Wire is a premium quality single core cable designed for industrial and commercial electrical applications requiring high performance and environmental compliance.
This hook up wire features a conductor size of 20 AWG (0.56 mm²) with 7 strands of 0.32 mm diameter copper, providing a reliable and flexible electrical connection. The insulation is made from modified polyphenylene ether (MPPE), which offers improved fluid resistance, a wider temperature range from -40°C to +110°C, and superior dielectric strength compared to standard PVC insulation.
With a cable length of 30 meters and an outside diameter of 1.37 mm, the wire comes with an orange jacket color for quick visual identification. The flame retardant and low smoke halogen free construction ensure safety and compliance with strict fire behavior standards.
This wire meets international standards including CE, ISO 6722 thin and ultra-thin wall, RoHS, and Reach compliance, making it suitable for use in automotive, solar, transportation, wind power generation, industrial machinery, and medical devices.
The multi-strand copper conductor improves flexibility and mechanical strength. MPPE insulation enables reduced wall thickness and lower cable weight while maintaining durability. Resistant to oils, solvents, fuels, and other hazardous fluids common in factory environments.
Environmentally friendly and 100% recyclable, helping meet WEEE and other eco regulations. Voltage rating of 300 V supports a wide range of electrical systems. Operating temperature from -40°C to +110°C suitable for harsh environmental conditions.
Orange jacket color facilitates easy wire tracing and identification during installation.
This Hook Up Wire is an excellent choice for demanding industrial and manufacturing applications where performance, safety, and environmental standards are critical. Explore our full range of cables and wires to find the best solutions for your electrical projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductor size of this model is 20 AWG, which is equivalent to 0.56 mm².
It can operate at a maximum temperature of +110°C.
This hook up wire has a voltage rating of 300 V.
The wire features MPPE insulation, which provides excellent fluid resistance and higher temperature tolerance.
The cable length is 30 meters.
The conductor consists of 7 strands, each measuring 0.32 mm in diameter.
It meets CE, ISO 6722, RoHS, and Reach compliance standards.
The outside diameter of the wire is 1.37 mm.
The minimum operating temperature is -40°C.
This model is suitable for applications in solar, transportation, wind power, industrial machinery, and medical devices.
The wire has an orange jacket color, which facilitates easy identification and tracing during installation.
The wire is flame retardant and low smoke halogen free, ensuring safety in fire conditions.
