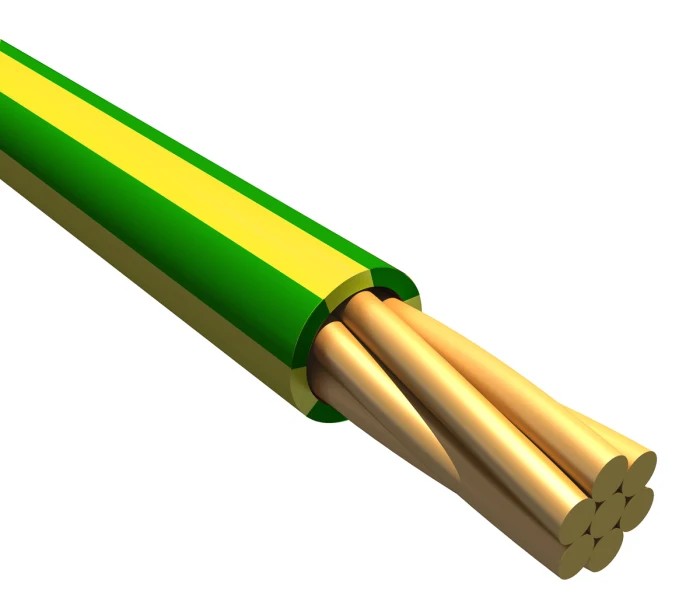

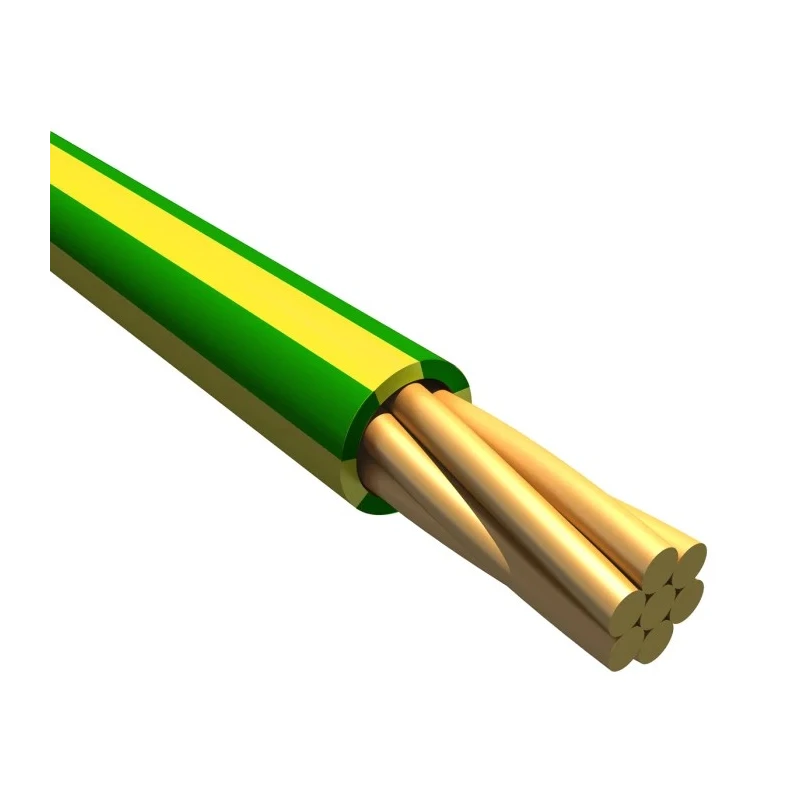

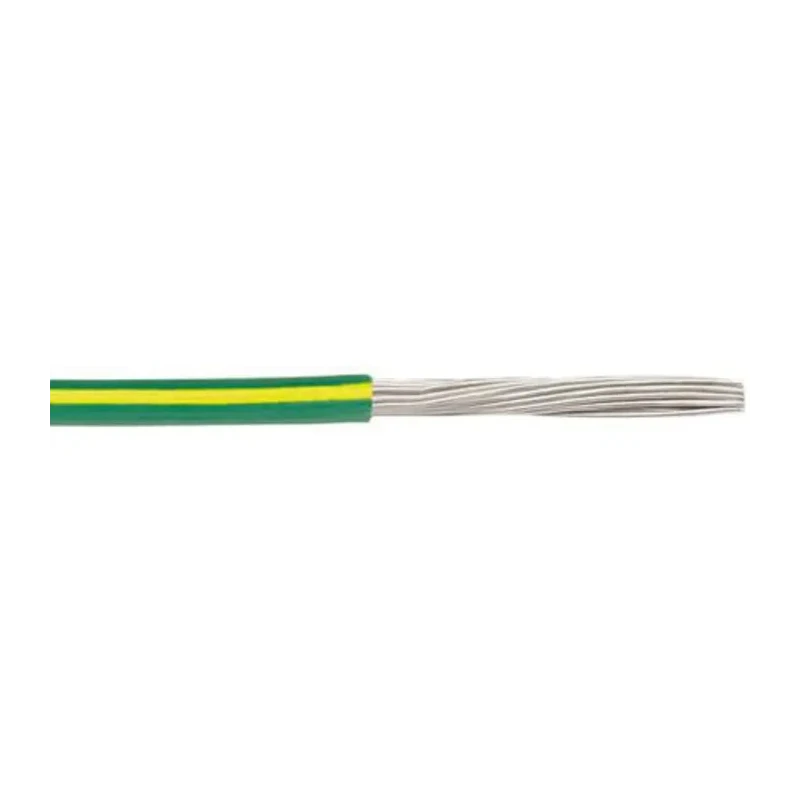

Alpha Wire Ecogen Ecowire Plus Series Green Yellow 3.3 mm² Hook Up Wire 12 AWG 19x0.46 mm Core Strands 30m 6830 GY005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Colour | Green/Yellow |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 3.3mm² |
| Model | 6830 GY005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 3.05mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.015 Inch (0.38 mm) |
| Wire Diameter | 0.120 Inch (3.05 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 12 AWG (3.08 mm²) |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Green, Yellow |
| Fire Behaviour | Excellent resistance to hazardous fluids, Low Smoke, UL VW1, VW-1 UL 1581, Zero Halogen |
| American Wire Gauge | 12AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.46mm |
| Size of Strands | 0.46mm |
| Stranding | 19/25 (19 x 0.46) |
Key Features
- Constructed with 19 strands of 0.46 mm copper wire for flexibility and conductivity.
- Covered with modified polyphenylene ether insulation that is halogen-free and chemically resistant.
- Designed to withstand temperature ranges from -40°C to +110°C for reliable operation.
- Features a green and yellow jacket color identification suitable for grounding purposes.
- Rated for 300 V electrical voltage with superior dielectric strength and low smoke emission.
- RoHS, CE, ISO 6722, and Reach compliant ensuring environmental safety and quality standards.
- Suitable for industrial, solar, medical, wind power, and transportation electrical wiring applications.
- Comes in a 30-meter reel length for convenient installation and usage.
Product Description
Alpha Wire 6830 GY005 Ecogen Ecowire Plus Series Green Yellow Hook Up Wire provides a premium-grade wiring solution with 3.3 mm² (12 AWG) cross-sectional area and 19 strands of 0.46 mm copper conductors.
The insulation is made from modified polyphenylene ether (mPPE) thermoplastic which is halogen-free and offers excellent resistance to oils, solvents, hazardous fluids, and fuels. This wire also features a low smoke, zero halogen fire behavior and meets UL VW1 and VW-1 UL 1581 standards.
Engineered to operate reliably between -40°C and +110°C at 300 V, this wire is ideal for demanding factory automation, solar power, transportation, industrial, and medical electrical wiring applications.
The green/yellow dual-color jacket uniquely identifies grounding wires, aiding in safety and regulatory compliance. EcoWire Plus is fully recyclable and complies with RoHS and REACH environmental standards, promoting sustainable manufacturing practices.
Stranded bare copper conductors provide high electrical conductivity and flexibility. Modified Polyphenylene Ether insulation delivers superior dielectric strength and thinner wall thickness for ease of installation. Exceptional resistance to hazardous fluids and low smoke emission enhance workplace safety.
Compliant with international standards including CE, ISO 6722 thin wall and ultra-thin wall classifications. Suitable for use in solar, wind power, industrial automation, transportation, and medical devices. The product is packed as a 30 meter reel for convenient deployment on site.
This Alpha Wire EcoWire Plus model 6830 GY005 is trusted for high performance and reliability in professional electrical wiring applications. Browse more wires and cables from the respected Alpha Wire brand on EnvMart for your industrial and commercial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cross-sectional area of this hook up wire is 3.3 mm², which corresponds to a 12 AWG rating.
This model can operate reliably at a maximum temperature of 110°C.
It is rated for 300 V electrical voltage, ensuring suitability for various applications.
The insulation is made from modified polyphenylene ether (mPPE), which is halogen-free and chemically resistant.
This hook up wire comes in a reel length of 30 meters, allowing for convenient installation.
The wire features a green and yellow jacket color identification, which is suitable for grounding purposes.
This model is constructed with 19 strands of 0.46 mm copper wire, providing flexibility and conductivity.
It is compliant with RoHS, CE, ISO 6722, and Reach standards, ensuring environmental safety and quality.
The outside diameter of this wire is 3.05 mm, making it suitable for various installations.
It is suitable for industrial, solar, medical, wind power, and transportation electrical wiring applications.
This wire exhibits excellent resistance to hazardous fluids, low smoke emission, and is classified as zero halogen.
The minimum operating temperature for this model is -40°C, allowing it to function in extreme conditions.
