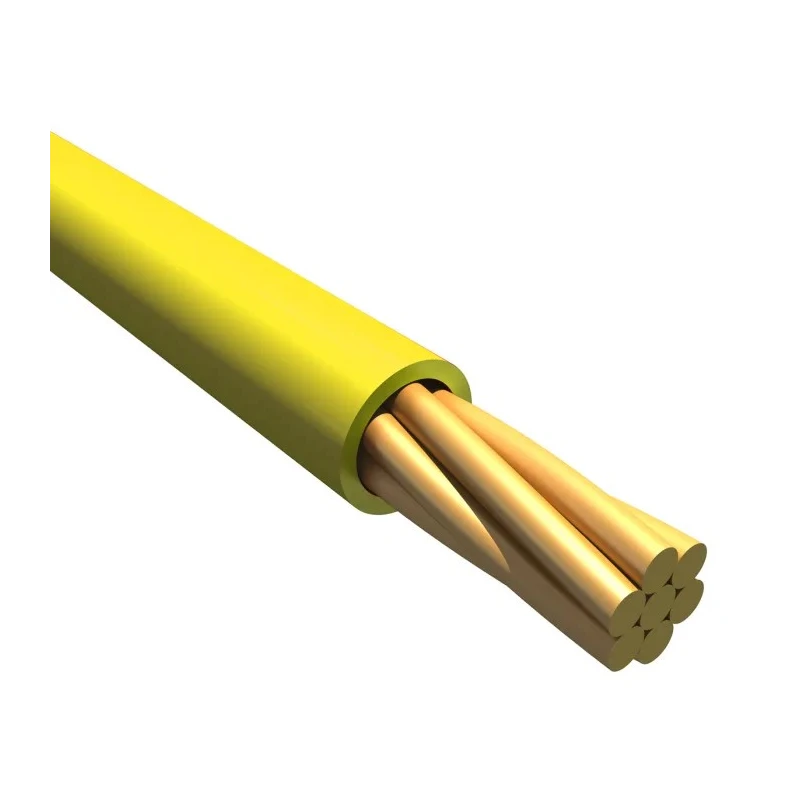

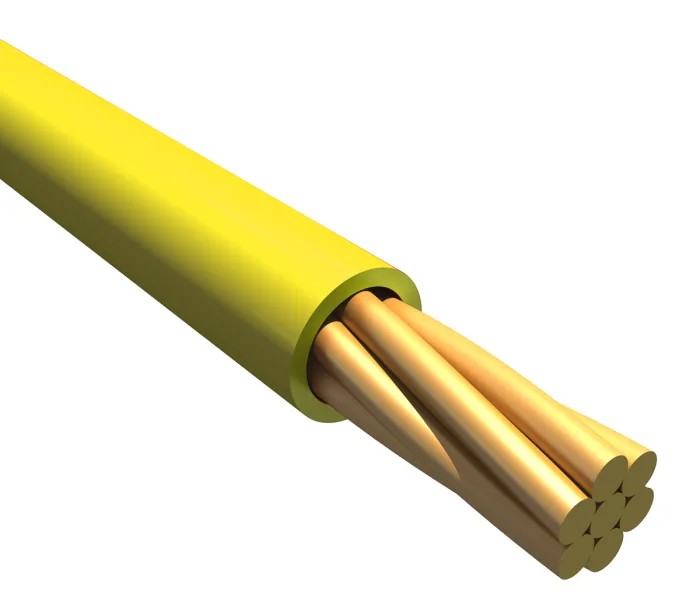

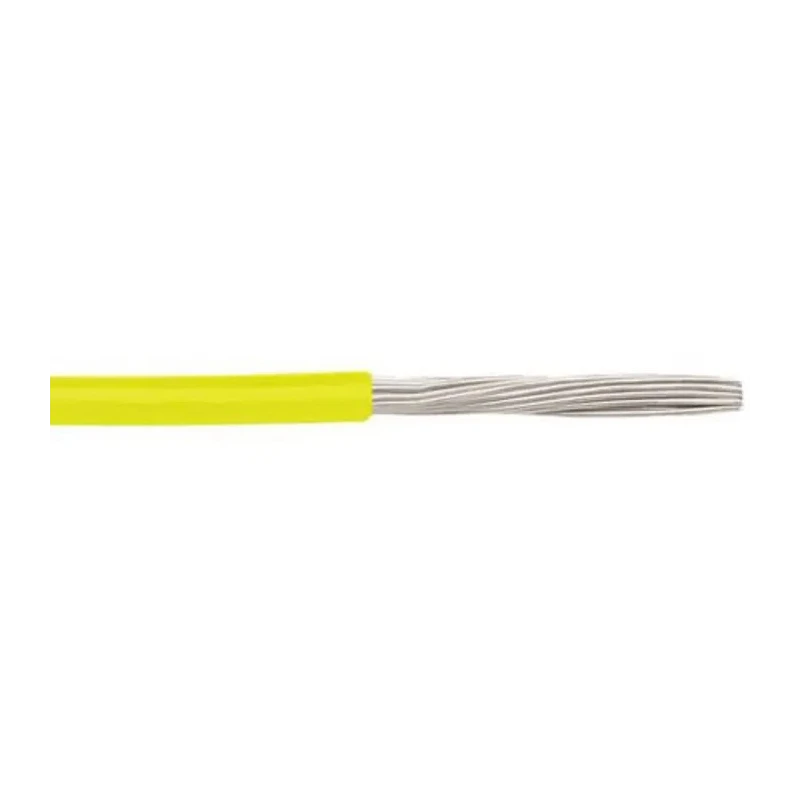

Alpha Wire Ecogen Ecowire Plus Series Yellow 1.3 mm² 16 AWG Hook Up Wire, 19x0.29 mm Strands, 30 m Length, MPPE 6827 YL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 1.3mm² |
| Model | 6827 YL005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.96mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.010 Inch (0.24 mm) |
| Wire Diameter | 0.077 Inch (1.96 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 16 AWG (1.23 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Yellow |
| Fire Behaviour | Flame Retardant, Low Smoke Halogen Free |
| American Wire Gauge | 16AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.29mm |
| Size of Strands | 0.29mm |
| Stranding | 19/29 (19 x 0.29) |
Key Features
- The insulation is made from lightweight, tough modified polyphenylene ether (mPPE) that offers excellent dielectric strength.
- The conductor consists of 19 strands of 0.29 mm diameter copper wire, providing flexibility and reliability.
- The 30 meter length cable has a yellow MPPE jacket with an outside diameter of 1.96 mm.
- The wire is flame retardant and low smoke halogen free for enhanced safety.
- Operating temperature range is from -40°C to +110°C, with a voltage rating of 300 V.
- It complies with CE, ISO 6722, Reach, and RoHS standards.
- The product is ideal for solar, transportation, wind power, industrial, and medical manufacturing uses.
- The mPPE insulation is environmentally friendly and 100% recyclable.
Product Description
Alpha Wire 6827 YL005 Ecogen Ecowire Plus Series Yellow 1.3 mm² 16 AWG Hook Up Wire is a high-performance industrial cable designed for factory and demanding environments. It features 19 strands of 0.29 mm diameter copper conductors insulated with modified polyphenylene ether (mPPE), which is lighter, tougher, and provides superior dielectric properties compared to traditional PVC insulation.
The wire jacket is yellow, made from flame retardant and low smoke halogen free mPPE, making it safer for industrial, commercial, and manufacturing applications. It can withstand operating temperatures from -40°C to +110°C and is rated for 300 V, ensuring reliability and safety under varied conditions.
Alpha Wire's EcoWire Plus is resistant to oils, solvents, fuels, and many hazardous fluids, making it suitable for solar power installations, transportation systems, wind farms, industrial automation, and medical device manufacturing. The insulation is environmentally conscious, containing no halogens or heavy metals, facilitating compliance with RoHS and WEEE regulations.

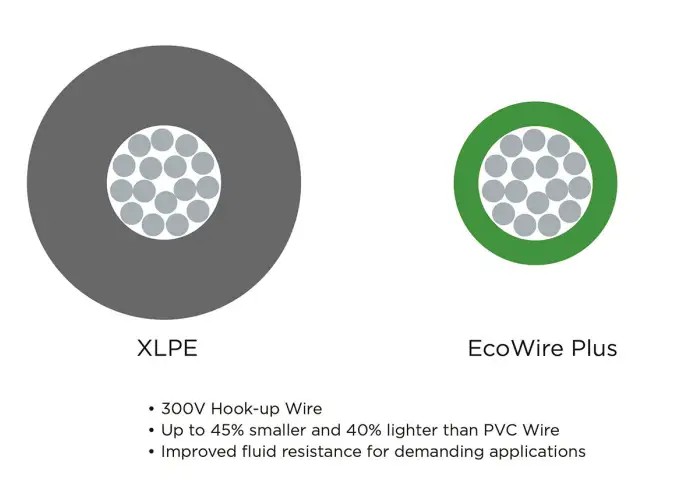

This cable has an outside diameter of 1.96 mm and an overall length of 30 meters per reel. Its fine stranding of 19 strands by 0.29 mm supports flexibility and mechanical durability. The EcoWire Plus series delivers high performance with a reduced wall thickness and low specific gravity, contributing to ease of use and weight savings.
The insulation is lightweight and tough modified polyphenylene ether (mPPE). It contains 19 strands of 0.29 mm copper conductor for flexibility. The cable length is 30 meters with a diameter of 1.96 mm. Rated voltage is 300 V with a temperature range from -40°C to +110°C.
The jacket is flame retardant and low smoke halogen free. Compliant with CE, ISO 6722, Reach, and RoHS standards. Ideal for solar, transportation, wind power, industrial, and medical applications.
Choose the Alpha Wire Ecogen Ecowire Plus 6827 YL005 series for reliable, high-quality Hook Up Wire solutions tailored for industrial and commercial use. Browse the EnvMart catalog for more options in wires and cables from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The wire has a voltage rating of 300 V.
It can operate within a temperature range of -40°C to +110°C.
The conductor consists of 19 strands of 0.29 mm diameter copper wire.
The outside diameter of the wire is 1.96 mm.
The insulation is made from modified polyphenylene ether (mPPE), and the jacket is also made from mPPE, which is flame retardant and low smoke halogen free.
It complies with CE, ISO 6722, Reach, and RoHS standards.
The wire has a length of 30 meters.
It is suitable for applications in solar power, transportation, wind power, industrial automation, and medical device manufacturing.
The cross-sectional area of the wire is 1.3 mm², equivalent to 16 AWG.
The wire is flame retardant and low smoke halogen free, enhancing safety in various applications.
The conductor features a stranding configuration of 19 x 0.29 mm.
The country of origin for this wire is India.
