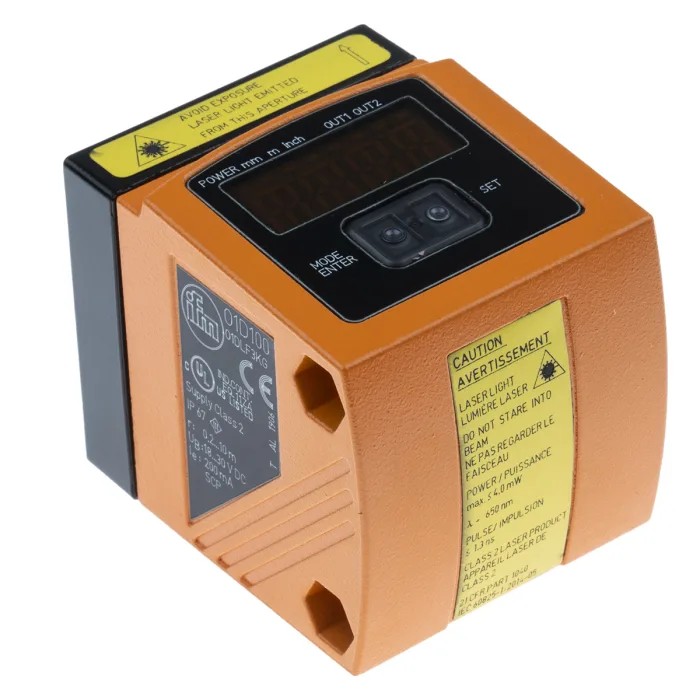

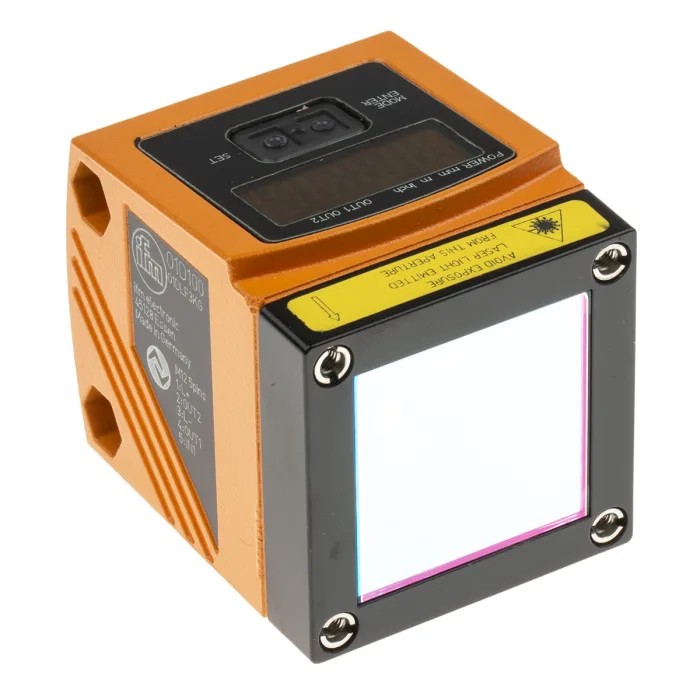

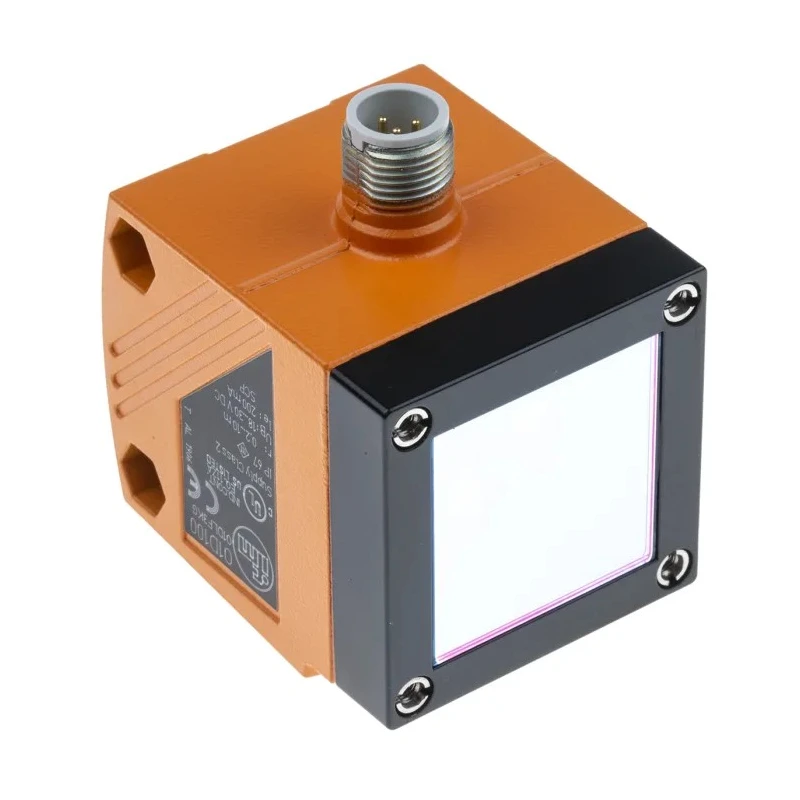

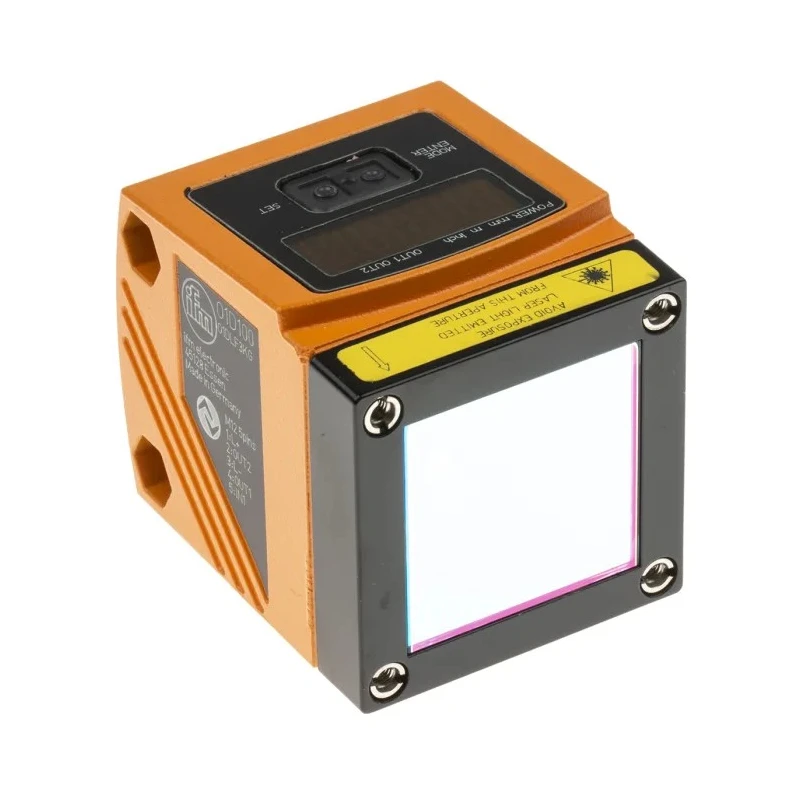

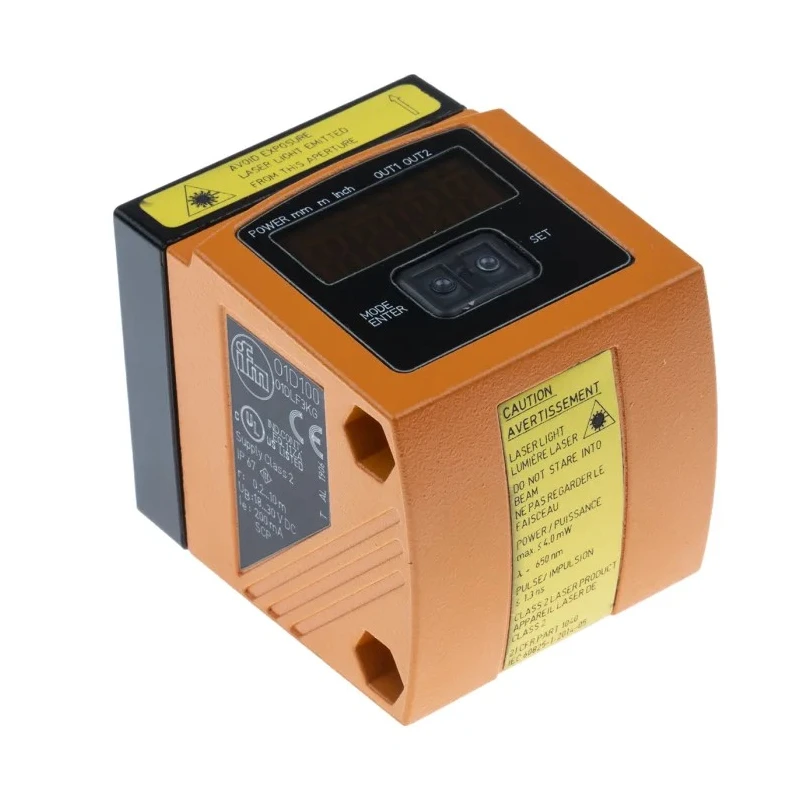

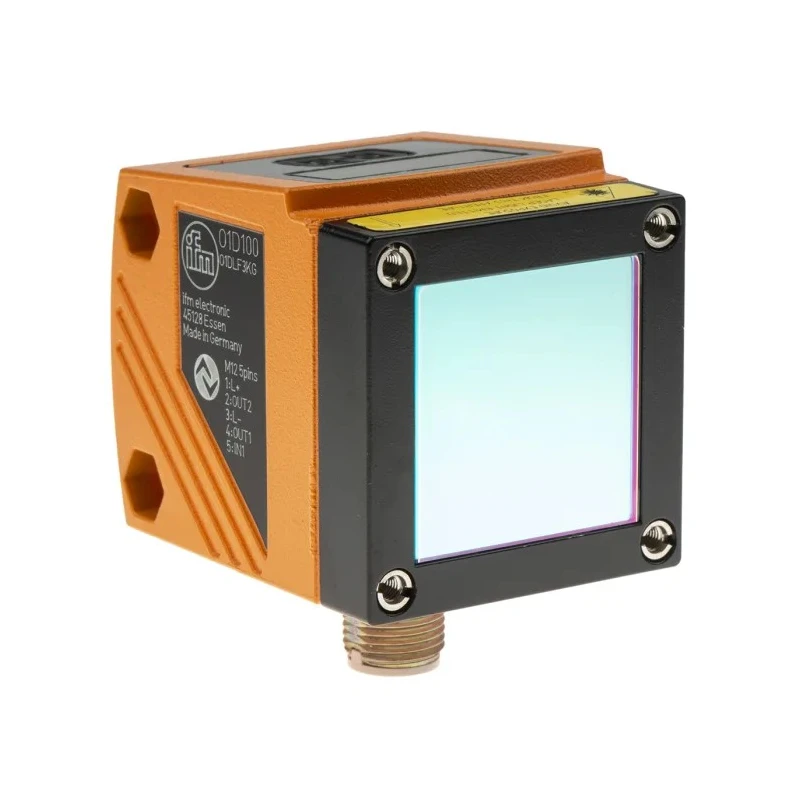

ifm electronic Diffuse Distance Sensor Block Sensor 200 mm to 10 m Range PNP Output IO-Link Interface IP67 O1D100

ifm electronic O1D100 Diffuse Distance Sensor Block Sensor delivers precise optical detection for industrial and automation applications, covering a detection range from 200 mm up to 10 m. It utilizes visible laser light as its detection source, conforming to protection class 2 laser safety standards.

This sensor features robust die cast zinc housing rated to IP67, offering excellent protection against dust and water ingress, making it suitable for harsh working environments in manufacturing, process control, and laboratory settings.

Equipped with PNP output and IO-Link interface, it supports versatile integration into modern automation systems. The device operates safely at a maximum DC voltage of 30V and current load up to 2 x 200 mA, with non-latching short circuit, overload, and reverse polarity protections enhancing long-term reliability.

The sensor detects glass materials effectively and operates within an ambient temperature range of -10°C to 60°C. It features a dual LED system indicating switching status (yellow) and power (green) for easy operational monitoring.

The O1D100 model comes with screw-type terminals and cable mount for secure and convenient installation. It complies with UL and cULus safety standards, ensuring dependable performance in electrical and automation applications including industrial machinery, quality control, and process monitoring.

The sensor’s compact block form factor facilitates installation in confined spaces while delivering robust and accurate distance sensing capabilities up to 10 meters. The sensor operates with a maximum DC voltage of 30V and current rating of 2 x 200 mA.

It employs laser light as the light source with visible laser light classified as protection class 2 laser. Durable die cast zinc housing ensures IP67 ingress protection for harsh industrial environments. Designed for detecting glass materials with a temperature operating range from -10°C to 60°C.

Features include short circuit protection, overload and reverse polarity protection, and dual LED indicators for switching status and power. The sensor is mounted via cable and terminated with screw terminals for secure connections.

It complies with UL and cULus standards ensuring industrial safety and reliability. Its compact block sensor style offers easy installation in automation and control applications.

Ideal for use in manufacturing automation, laboratory instrumentation, quality assurance processes, environmental sensing, and other industrial measurement roles. This sensor enables precise distance measurement and object detection in diverse applications requiring rugged and reliable sensor solutions.
