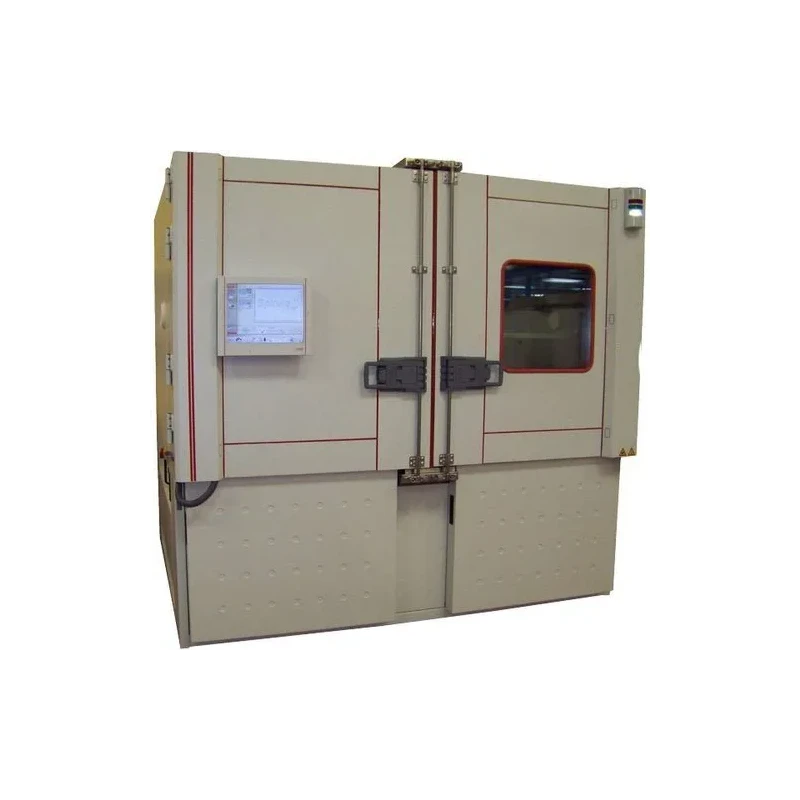

Environmental Test Chamber 1000 Liter
Specifications
| Temperature Accuracy | 1 deg C |
|---|---|
| Humidity accuracy | 0.03 |
| Capacity | 1000 L |
| Brand | Wist |
| Temperature range | 40 to 150 deg C |
| Model | WT34CLM-S/ WT34CLM-G |
| Temperature Sensor | PT-100 RTDClass A |
| Heating | U Shaped Nichrome Wire Heater in SS Sheathing |
| Temperature Control | Microprocessor-Based PID Control with Auto-Tune |
| Construction | Double Walled with PUF Insulation Provided |
| Humidity range | 40% To 98% RH |
| Cooling | Condenser with Motor and Relay |
| Air Circulation | Flange Motor With Impeller/Blower |
| Trays | Heavy Duty SS Wire Mesh |
| Number of trays | 5 |
| Tray Size | 760 x 760 mm |
| Chamber Illumination | Fluorescent Light With Door Switch |
| Internal Chamber Size | 1500 x 800 x 800 mm |
| External Chamber Size | 2135 x 960 x 1290 mm |
Key Features
- Condition compressor unit Complete with blowers, circulation motors, dry heater, humidity system, evaporation (cooling) coil, and standby cooling coil (if applicable).
- 1 No. Access Port Hole, 75mm dia. with Silicone Closure, on side wall 300X 300mm 5 Pane Viewing window, with illumination; Trays SS304 Removable Loading Tray Strip heaters in the door and window assembly Door Interlock, Drain for Condensing Water Low Noise Design ( Noise absorbing material installed in the Compressor Compartment )
Product Description
Forced air circulation is done to maintain uniformity throughout the equipment. It is through circulation motors & blowers. The motors are mounted on the body from the outside and the only shaft is in the inner chamber. For safety dissimilar metals are used for rotating parts. The shaft and surrounding body are of SS; Blower is of Aluminum. Additionally, rotating parts are safeguarded with a guard grill.Humidity is by steam injection. The humidity system consists of a reservoir tank & humidifier tank, which is fitted with two nos The reservoir tank consists of a float valve to maintain the water level. It has to be connected to a continuous supply of soft water (preferably DM water). The reservoir tank consists of a safety float switch to detect the water level & give an alarm upon low water level. A safety float switch is also provided in the boiler tank to detect the water level & given an alarm upon low water level as well as cut off the supply to the heaters
- High Durability
- High performance
- Precise design
