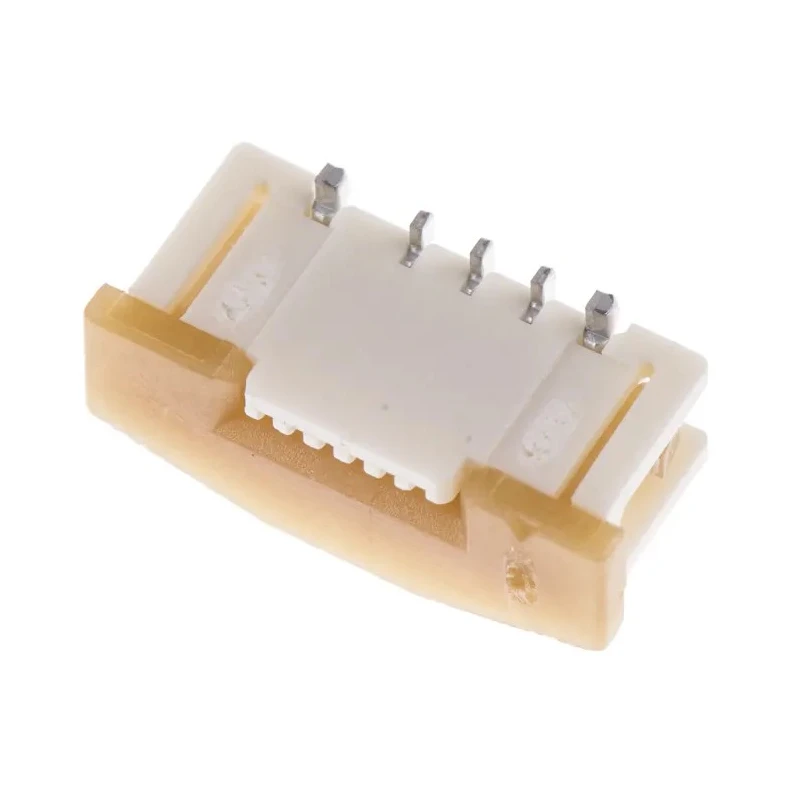

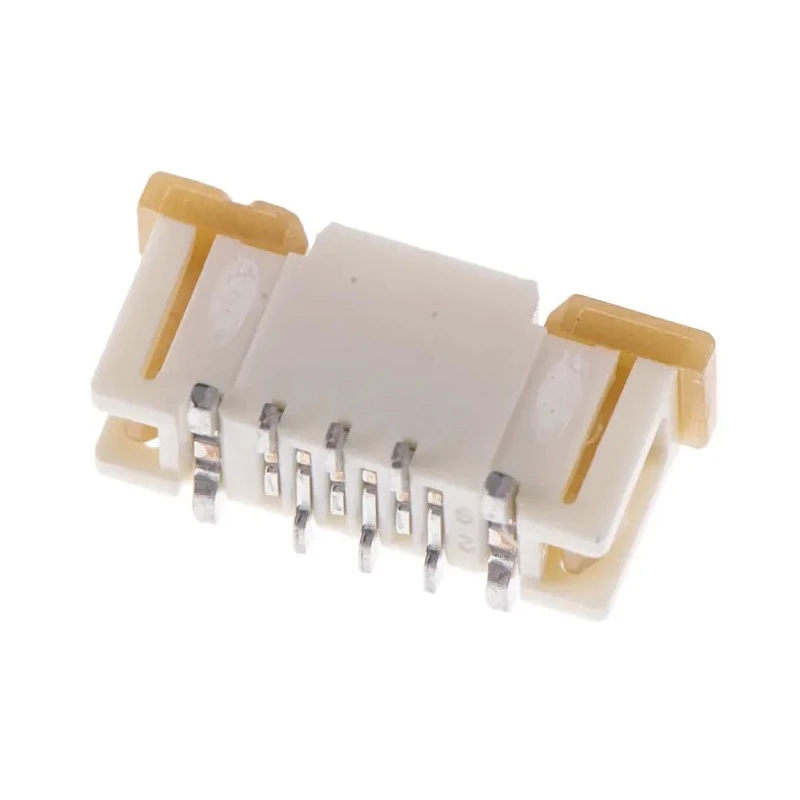

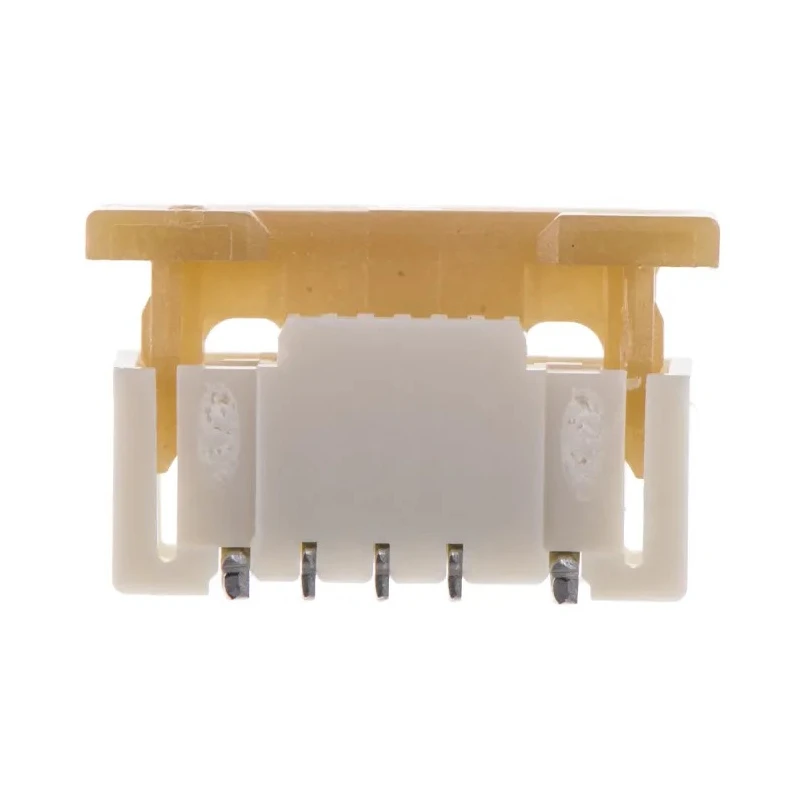

Molex 0.5 mm Pitch 6 Way Straight Female FPC Connector Surface Mount Solder 52559-0652

Molex 52559-0652 0.5 mm Pitch 6 Way Straight Female FPC Connector is a surface mount device designed for compact and high-density interconnections in electronic circuits. This connector belongs to the 52559 series, recognized for providing Zero Insertion Force (ZIF) fittings with a vertical orientation to maintain signal integrity and reduce wear on flat flexible cables (FFC) and printed flexible circuits (FPC).

The connector features phosphor bronze contacts plated with gold to ensure excellent electrical conductivity and resistance to corrosion, paired with a durable nylon housing. Its slide type actuator mechanism enables easy and secure mating with FPC, minimizing mechanical strain during insertion and removal cycles, which prolongs connector lifespan.

This component supports a 0.5 mm pitch spacing and has six contact positions arranged in a single row. It is rated for 50 V AC voltage and 500 mA current, making it suitable for a wide range of low-power electronic devices. Operating temperatures range from -20°C to 85°C, accommodating diverse environmental conditions.

Molex's Easy-On 52559 connectors are widely used in automotive navigation systems, consumer electronics such as smartphones and tablets, medical equipment, datacommunications, and other applications requiring reliable and space-saving connector solutions.

Zero Insertion Force (ZIF) design reduces wear during insertion and removal cycles. Gold plated phosphor bronze contacts provide durability and high conductivity. Slide type actuator secures cable connection firmly and safely.

Movable contacts maintain reliable electrical contact despite cable movement. Solder tabs provide robust PCB retention and strain relief. Compact 0.5 mm pitch design saves PCB space in tight packaging applications. Supports operational environment from -20°C to 85°C.

Widely applicable in automotive, consumer electronics, medical, and telecommunications industries.

This connector is a vital component in modern electronic assemblies requiring high-density signal and data transmission with minimal space usage. It ensures long-term reliability and ease of assembly in industrial and commercial products.
