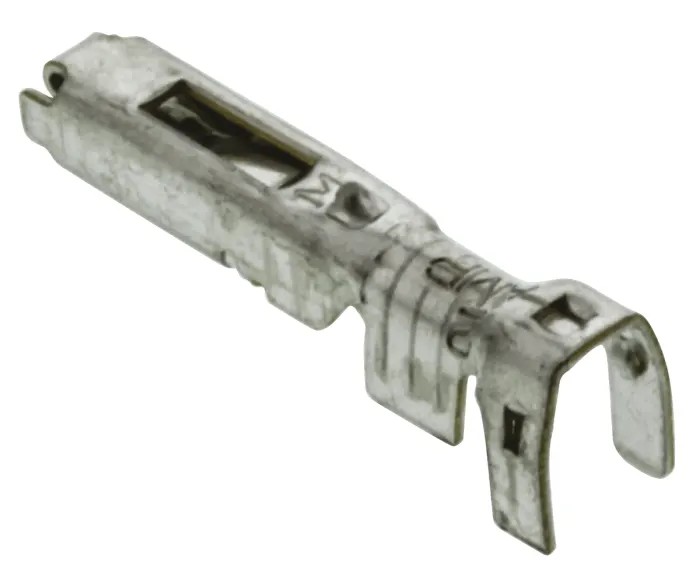

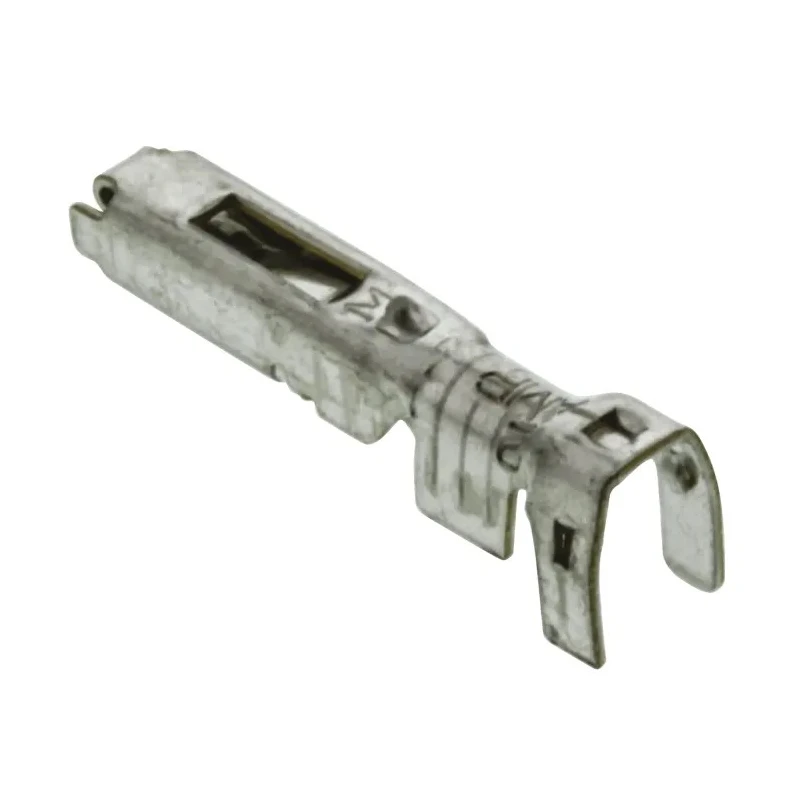

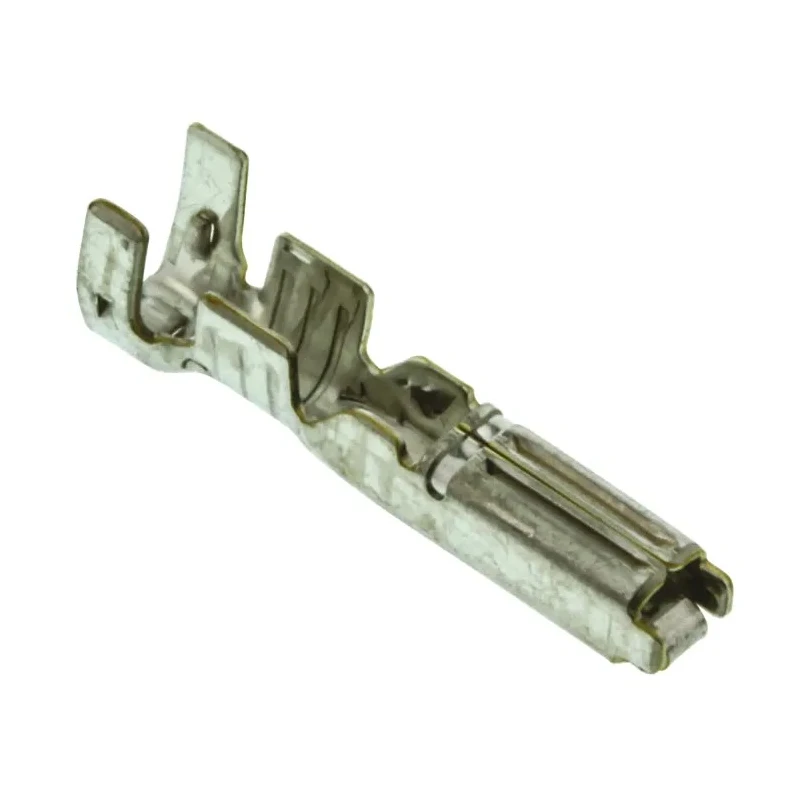

TE Connectivity MULTILOCK 070 Series Female Crimp Terminal 16mm Length, Tin Plated Brass Contact, 20-16 AWG 175027-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Length | 16mm |
| Model | 175027-1 |
| Gender | Female |
| Contact Material | Brass |
| Current Rating | 15A |
| Series | MULTILOCK 070 |
| Termination Type | Crimp |
| For Use With | MULTILOCK 070 Connector Housing |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Constructed from brass with tin plating for corrosion resistance.
- Designed for use with MULTILOCK 070 Connector Housing.
- Accommodates wire sizes from 20 AWG (0.5 mm²) to 16 AWG (1.25 mm²).
- Crimp termination type ensuring secure mechanical and electrical connections.
- Operates reliably in temperatures ranging from -30 to 105 °C.
- Rated for a current capacity of 15 A with low contact resistance.
- Meets RoHS standards for environmental compliance.
Product Description
TE Connectivity 175027-1 MULTILOCK 070 Series Female Crimp Terminal is designed for durable and precise connectivity in electronic and automotive applications. The brass contact is tin plated to enhance corrosion resistance and ensure long-lasting electrical performance.
This female Crimp Terminal fits the MULTILOCK 070 Connector Housing, making it ideal for wire-to-wire and wire-to-board connections with 20 AWG minimum and 16 AWG maximum wire sizes. Crimp termination provides secure mechanical and electrical contact essential for automation and manufacturing industries.
With a length of 16 mm, the terminal is compact yet robust, suitable for dense connector assemblies. It supports a maximum current rating of 15 A and operates efficiently in temperatures ranging from -30 to 105 °C, making it suitable for harsh industrial environments.
The terminal exhibits low contact resistance with an initial maximum of 10 milliohms, ensuring reliable signal integrity and power transmission. Its compliance with RoHS standards reinforces its environmental safety.
This component is often used in automotive systems, industrial automation, and electronic assemblies where high-density, reliable signal and power connections are critical. The MULTILOCK series connectors provide snap-in, crimp contacts facilitating quick and secure assembly.
Constructed from brass with a tin plated finish to prevent corrosion. Designed specifically for MULTILOCK 070 connector housing for compatibility. Supports wire sizes from 20 AWG (0.5 mm²) to 16 AWG (1.25 mm²), covering a wide range of cable applications.
Crimp termination ensures a strong and secure connection suitable for automation industries. Operating temperature range is -30 to 105 °C suitable for industrial environments. Current rating of 15 A allows for moderate power cable applications.
Low contact resistance and reliable conductivity ensure signal integrity. RoHS compliant, meeting environmental and safety regulations. Explore EnvMart for a wide range of industrial connectors and terminals by TE Connectivity, designed for robust and reliable electronic component assembly.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal operates efficiently in temperatures ranging from -30 to 105 °C, making it suitable for harsh industrial environments.
It accommodates wire sizes from 20 AWG (0.5 mm²) to 16 AWG (1.25 mm²), covering a wide range of cable applications.
The current rating for this terminal is 15 A, allowing it to handle moderate power cable applications.
The contact is made from brass and is tin plated to enhance corrosion resistance and ensure long-lasting electrical performance.
This terminal is specifically designed for use with the MULTILOCK 070 Connector Housing, ensuring compatibility for various applications.
The length of this crimp terminal is 16 mm, making it compact yet robust for dense connector assemblies.
It uses crimp termination, which ensures secure mechanical and electrical connections essential for various industries.
The terminal exhibits a low contact resistance with an initial maximum of 10 milliohms, ensuring reliable signal integrity and power transmission.
Yes, this terminal meets RoHS standards for environmental compliance, reinforcing its safety for use in various applications.
The maximum overall resistance of this terminal is 20 milliohms, ensuring efficient conductivity for electrical connections.
This terminal is commonly used in automotive systems, industrial automation, and electronic assemblies where reliable signal and power connections are critical.
The gender of this crimp terminal is female, designed for secure connections with compatible connectors.
