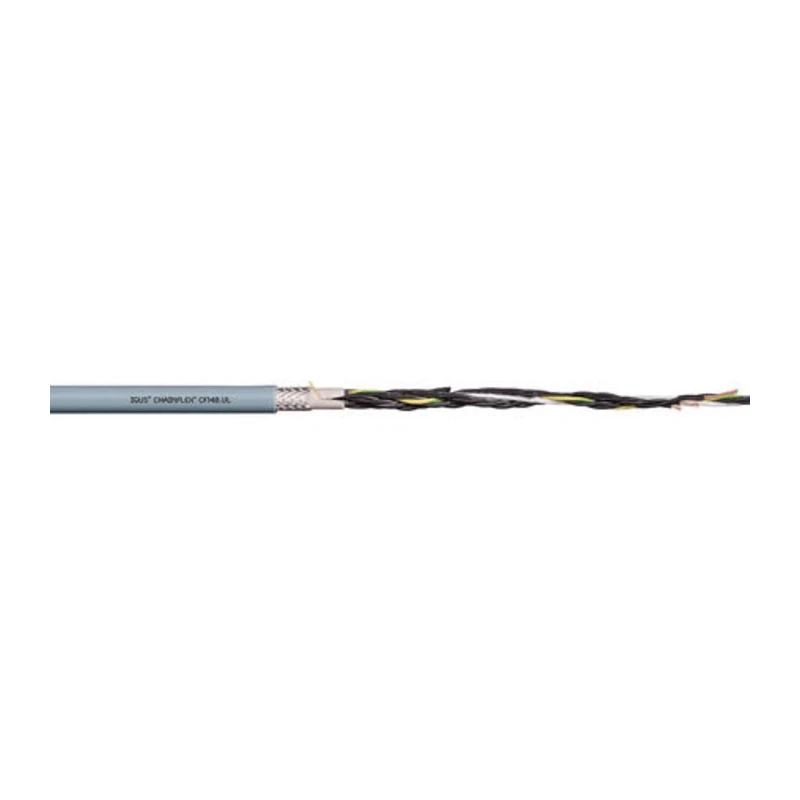

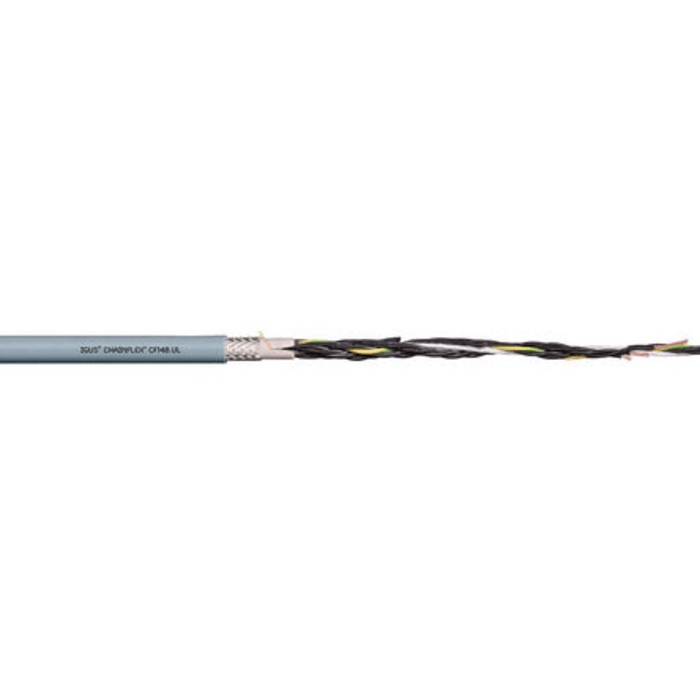

Igus Chainflex CF140.UL Screened Control Cable, 7 Cores, 0.75mm² 18 AWG, Thermoplastic Elastomer Sheath, 25 m CF140.07.07.UL
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF140.07.07.UL |
| Cable Length | 25m |
| Series | Chainflex CF140.UL |
| Outside diameter | 10.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 7 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 0.75mm² |
| Cavotec Actuator/Sensor Cable, 7 Cores, 0.75 mm², Screened PVC SheathBrand | Brevetti |
Key Features
- The cable consists of 7 cores with 0.75mm² (18 AWG) bare copper conductors.
- The outer sheath is made of grey thermoplastic elastomer, providing flexibility and durability.
- It is screened and armoured for enhanced protection against interference and mechanical stresses.
- The cable supports operating voltages of 300 V and 500 V and temperatures from -5°C to 70°C.
- It is flame retardant and compliant with IEC 60332-1-2 and related standards.
- This product is engineered for freely suspended travel distances and gliding applications.
- Manufactured in Germany with CE and EN approvals ensuring industrial quality.
Product Description
Igus CF140.07.07.UL Control Cable is a professional-grade, screened control cable designed by Igus for medium load industrial applications requiring flexibility and durability. Featuring 7 cores of 0.75 mm² (18 AWG) stranded bare copper conductors, this cable is sheathed in a grey thermoplastic elastomer that combines resistance to mechanical wear and environmental factors.
The cable's armoured and screened construction provides excellent protection against electromagnetic interference and mechanical damage, making it ideal for indoor use, particularly in environments with freely suspended travel distances or gliding applications with lengths up to 50 meters.
Designed to operate at voltages of 300 V and 500 V, the cable withstands temperature ranges from -5°C to a maximum of 70°C, making it suitable for a variety of industrial and automation settings. Its flame-retardant properties comply with IEC 60332-1-2 and other international standards, ensuring safety under demanding conditions.
Manufactured in Germany, the Chainflex CF140.UL series adheres to CE and EN certifications, guaranteeing high-quality performance for control and industrial automation systems. The 25-meter length provides versatile application options across industrial, manufacturing, and process control environments requiring reliable signal transmission and cable longevity.
The cable consists of 7 cores with 0.75mm² bare copper conductors designed for optimal current carrying capacity. The grey thermoplastic elastomer sheath offers high durability and flexibility. Armouring and screening provide enhanced mechanical and electromagnetic protection.
Rated for 300 V and 500 V operating voltages. Operating temperature range from -5°C to 70°C ensures usage in a variety of conditions. Flame retardant according to IEC 60332-1-2 standards. Ideal for indoor and gliding applications, including suspended travel up to 50 meters.
This Control Cable is widely used in industrial automation, electrical systems, manufacturing units, and process control where durable and screened cable solutions are required. The high standards of manufacture and certification make it a reliable choice for OEMs and system integrators.
Discover more industrial-grade cables and automation products in the Electronics & Electricals category at EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this control cable is 70°C.
This cable is rated for operating voltages of 300 V and 500 V.
The Igus Chainflex CF140.UL cable consists of 7 cores.
The outer sheath of this cable is made from grey thermoplastic elastomer.
The outside diameter of this control cable is 10.5 mm.
Yes, this control cable is flame retardant and complies with IEC 60332-1-2 standards.
The cable features stranded bare copper conductors.
The minimum operating temperature is -5°C, while the maximum is 70°C.
This cable is manufactured in Germany.
The cable is compliant with CE and EN standards.
This control cable is designed for medium load industrial applications, particularly for freely suspended travel distances and gliding applications.
The length of this control cable is 25 meters.
