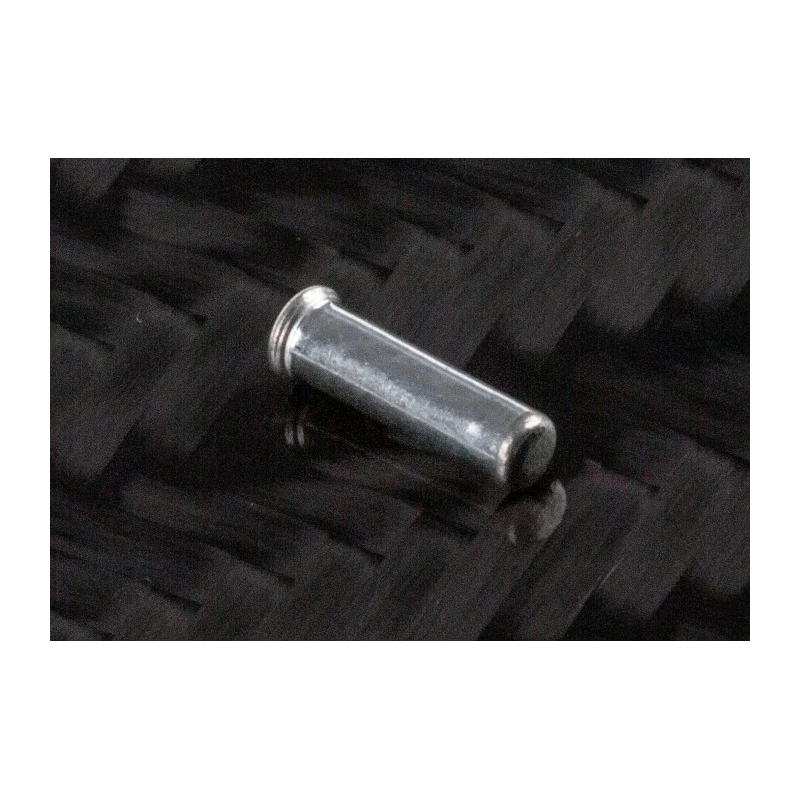

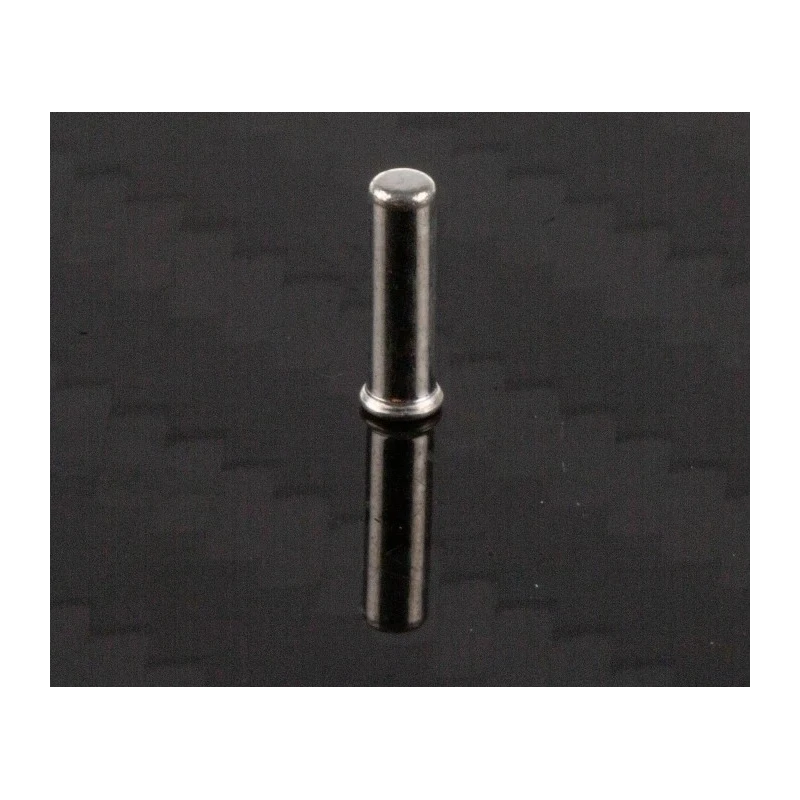

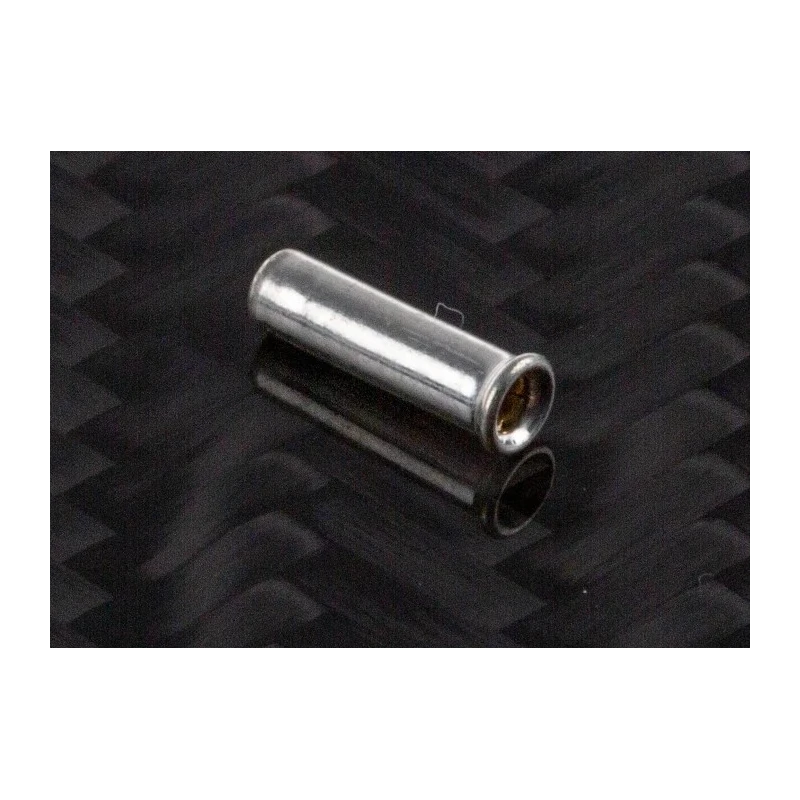

TE Connectivity Mini-Spring PCB Socket 6.5A 20 AWG 5050865-5

TE Connectivity model 5050865-5 Mini-Spring PCB Socket is designed as a female connector for PCB wire terminations supporting up to 6.5 amperes of current with wire size ranging from 18 AWG minimum to 20 AWG maximum. Featuring a straight orientation and a compact length of 6.6 mm, this socket provides a reliable and durable electrical connection in industrial and commercial electronic applications.

The contact material is a beryllium copper alloy, well-known for excellent electrical conductivity and mechanical strength. Furthermore, the contacts are gold plated, which offers superior corrosion resistance and ensures stable signal transmission over extended periods. The termination type is solder, commonly used in PCB mounting for enhanced mechanical stability.

TE Connectivity's Mini-Spring series Discrete Sockets are ideal for through-hole press-fit applications, designed for miniature wire to PCB interfacing. These sockets improve production efficiency by offering consistent and repeatable connections, useful in diverse markets such as electronics manufacturing, industrial equipment, power connectors, and communications hardware.

The product is manufactured in China and does not carry specific standards or approvals but aligns with TE Connectivity's high-quality manufacturing norms. It supports a wide range of applications requiring high density and miniature connector solutions, providing dependable electrical performance in a compact footprint.

Key features include a mini-spring contact system, gold plating, solder termination, and compatibility with 18-20 AWG wires all within a 6.6 mm length housing. Such characteristics make it a preferred choice for engineers and assembly professionals working on advanced PCB designs and electronic assemblies.

This PCB socket features a mini-spring series design for reliable electrical connections. The contacts are made from beryllium copper alloy and plated with gold for enhanced conductivity and corrosion resistance. The socket is intended for solder termination to ensure secure mounting on PCB.

The length of the socket is 6.6 mm allowing compact installation in electronic assemblies. It is suitable for use in electronics, power connectors, and wire terminal applications requiring miniature PCB sockets. This product is manufactured in China and complies with general manufacturing standards although no specific certifications are listed.

The socket does not have open or closed bottom sleeve style specified but offers stable mechanical and electrical performance. Explore a wide selection of electronic connectors and components on EnvMart to find compatible parts and related accessories for your industrial and manufacturing needs.
