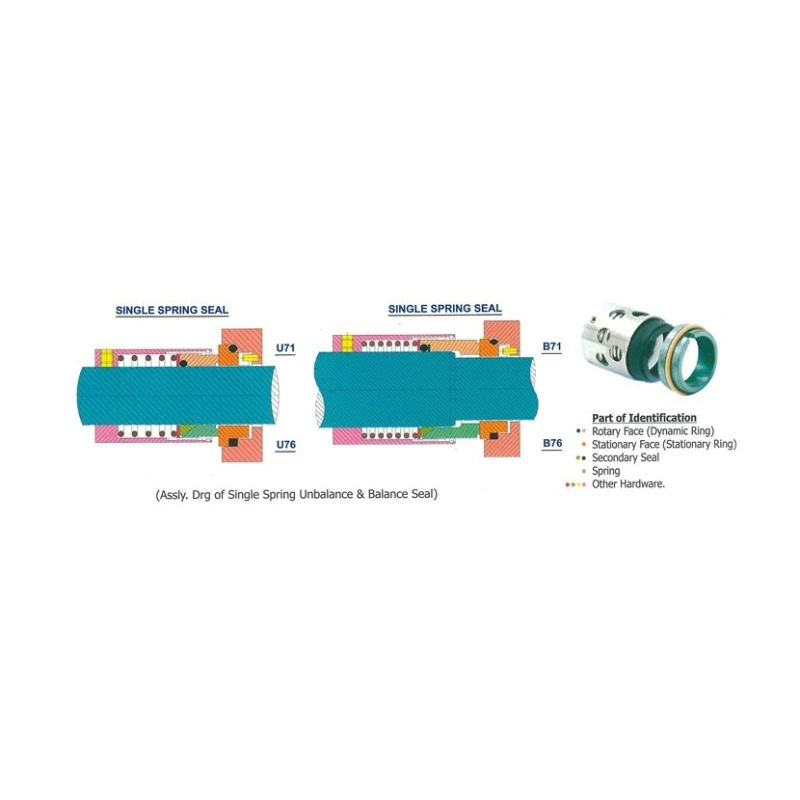

Single Spring Balance Unbalance Seal B71 Series
Specifications
| Pressure | Unbalance 10 Bar (kg/cm 2) & Balance upto 35 bar (kg/cm 2) |
|---|---|
| Temperature | -60 C to 260 C |
| Shaft Diameter | 12 mm To 100 mm |
| Shaft Speed | Upto 6000 RPM According To Shaft Size & Pressure. |
| Hardware | SS 316 SS 304 Hast - C Monel Alloy -20. |
| Face Material | (Dynamic Ring & Stationary Ring ) Carbon Ceramic (99.5%). Silicon Carbide Tungsten Carbide Chrome Cast Steel & Which Are Suitable For Fluid. |
| (Secondary Seal) | Viton EPDM Silicon Aflas EPR Kalrez TCV |
Key Features
- High Durability
- High performance
Product Description
B71 Series of Seals are Single Helical Coil Spring Seals Developed for Dirty Media & Clogging type applications. Torque Transmission from Retainer Shell to Dynamic Ring is done through Drive Lugs. All components are held together by a Snap Ring which helps in Easier Installation & Removal. As all Parts are Interchangeable one can convert series B71 by changing only the Dynamic Ring and the Secondary Seal. This Principle is ideal for Stock Rationalisation.Seal CharacteristicsInside MountedSingle ActingUnbalanced & BalancedIndependent Of the Direction Of RotationApplication Light Hydrocarbon, Dirty, Media. Petrochemicals Petroleum Refinery General Chemicals
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pressure rating for the unbalanced configuration is 10 Bar (kg/cm²) and for the balanced configuration, it is up to 35 Bar (kg/cm²).
This model can operate within a temperature range of -60°C to 260°C.
The maximum shaft speed is up to 6000 RPM, depending on the shaft size and pressure.
The face materials include carbon ceramic (99.5%), silicon carbide, tungsten carbide, and chrome cast steel, which are suitable for fluid applications.
Compatible secondary seals include Viton, EPDM, silicon, Aflas, EPR, Kalrez, and TCV.
Torque transmission from the retainer shell to the dynamic ring is achieved through drive lugs.
All components are held together by a snap ring, which facilitates easier installation and removal.
Yes, it is specifically developed for dirty media and clogging type applications.
Yes, it is suitable for applications involving light hydrocarbons, petrochemicals, and general chemicals.
The hardware is made from materials such as SS 316, SS 304, Hast-C, and Monel Alloy -20.
