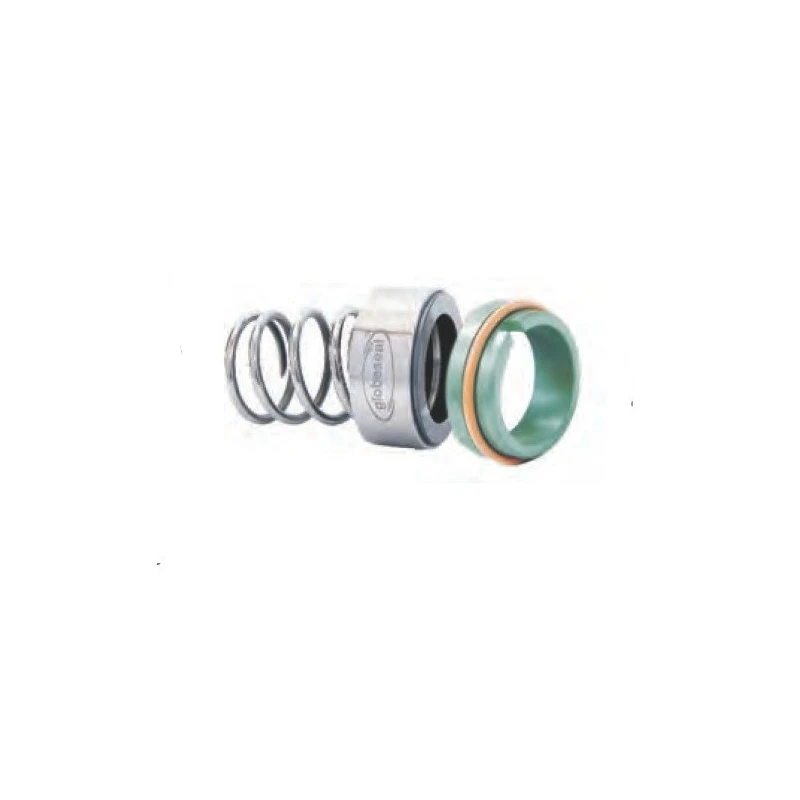

Single Spring Unbalance Seal Series GSS-160
Specifications
| Pressure | 10 Bar (kg/cm 2) |
|---|---|
| Temperature | -45 C to 200 C |
| Shaft Diameter | 10 mm To 100 mm |
| Shaft Speed | Upto 6000 RPM According To Shaft Size & Pressure. |
| Hardware | SS-316 SS-304 Hast-C Monel Alloy-20 |
| Face Material | Carbon Ceramic (99.5%) SIC. T.C. |
| Secondary Seal | GFT PTFE TCV FEP. |
Key Features
- High Durability
- High performance
Product Description

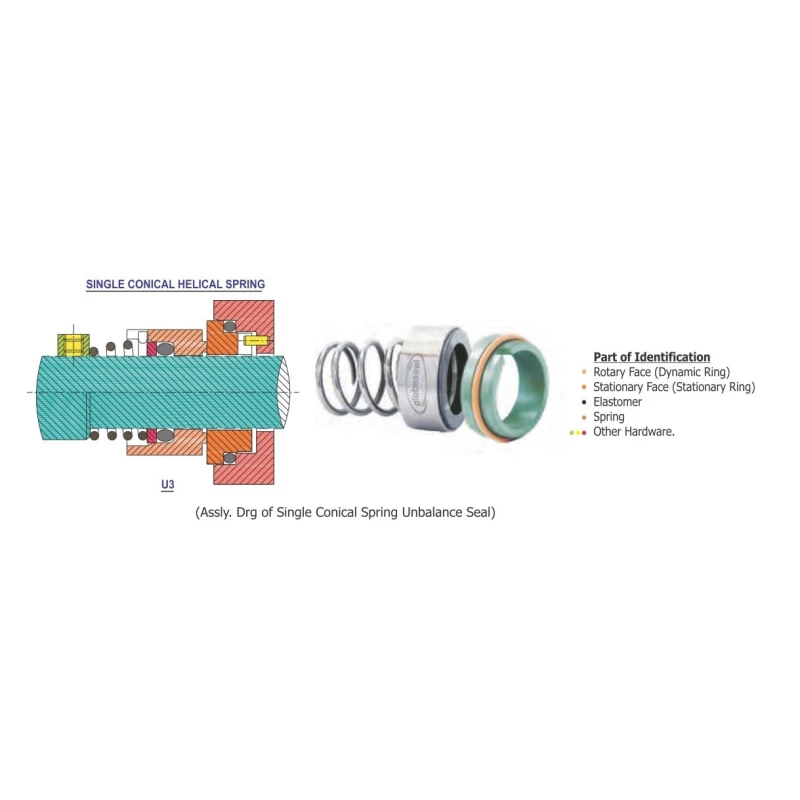

Single Spring Unbalance Seal Series (GSS-160): custom design single coil spring seals. We are a prime manufacturer & supplier of single coil spring seals in India.We provide specially designed GSS 160 series of seals for various industrial applications. It is an internally mounted unbalanced single coil spring seal, driven by the clutch. The seal contains a drive ring and a drive collar. If the spring is clogged, the rotary will be driven reliably. The motion transmits by the shaft to springs, driven by the rotary. The seals are mounted internally.The seal has wide applications in various industries. It is used in petrochemicals, general chemicals, dirty water and slurry, and petroleum refineries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GSS-160 seal has a pressure rating of 10 Bar (kg/cm²).
This model operates within a temperature range of -45°C to 200°C.
The maximum shaft speed for this seal is up to 6000 RPM, depending on the shaft size and pressure.
The hardware of the GSS-160 seal is made from materials such as SS-316, SS-304, Hast-C, and Monel Alloy-20, while the face material consists of carbon ceramic (99.5%) SIC and T.C.
The GSS-160 seal utilizes a secondary seal made of GFT PTFE TCV FEP.
This seal is mounted internally and is driven by the clutch mechanism.
The GSS-160 seal is suitable for various industrial applications, including petrochemicals, general chemicals, dirty water and slurry, and petroleum refineries.
The GSS-160 seal features a custom design as a single coil spring seal, specifically an internally mounted unbalanced single coil spring seal.
If the spring is clogged, the rotary will still be driven reliably, ensuring continued operation.
The GSS-160 seal includes a drive ring and a drive collar as part of its assembly.
Yes, the GSS-160 seal is a customized product designed for specific industrial applications.
