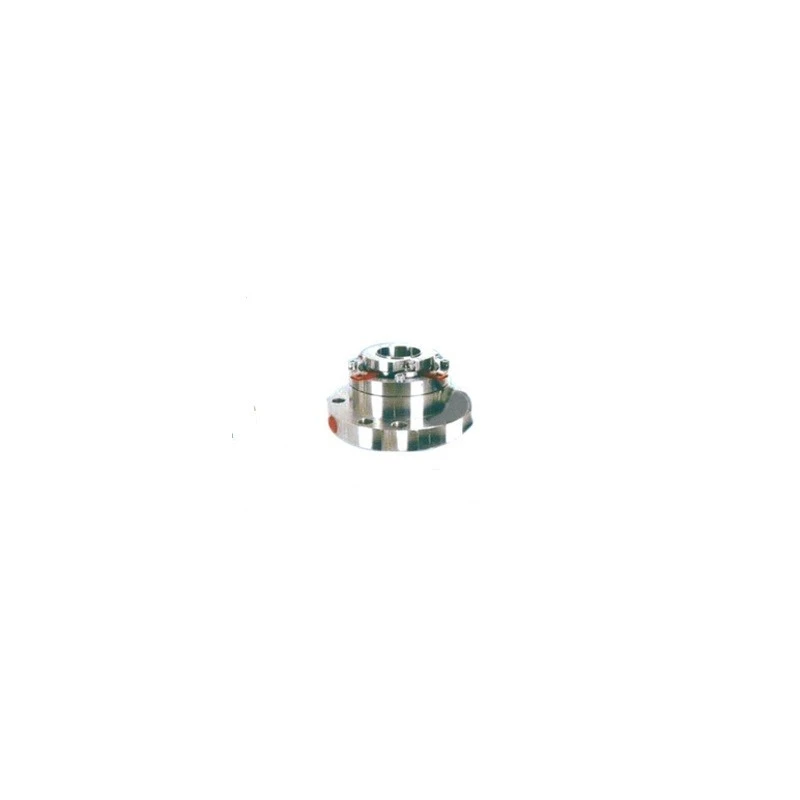

Dry Running Reverse Balance Seal B89RA/CG Series
Specifications
| Pressure | 20 Bar (kg/cm 2) |
|---|---|
| Temperature | 125 C (Maxi) |
| Shaft Diameter | 20 mm To 150 mm |
| Shaft Speed | Upto 6000 RPM According To Shaft Size & Pressure. |
| Hardware | SS 316 SS 304 Hast-C Monel Alloy 20 |
| Face Material | (Dynamic Ring & Stationary Ring) Carbon Ceramic (99.5%) Silicon Carbide Tungsten Carbide Chrome Cast Steel & Which Are Suitable For Fluid. |
| Secondary Seal | Viton EPDM Silicon Aflas PTFE GFT TCV & FEP TTV Kalrez. |
Key Features
- Highly reliable
- Rust- proof
- Resistance against abrasion
- Sturdy construction
- Reliable and durable
Product Description

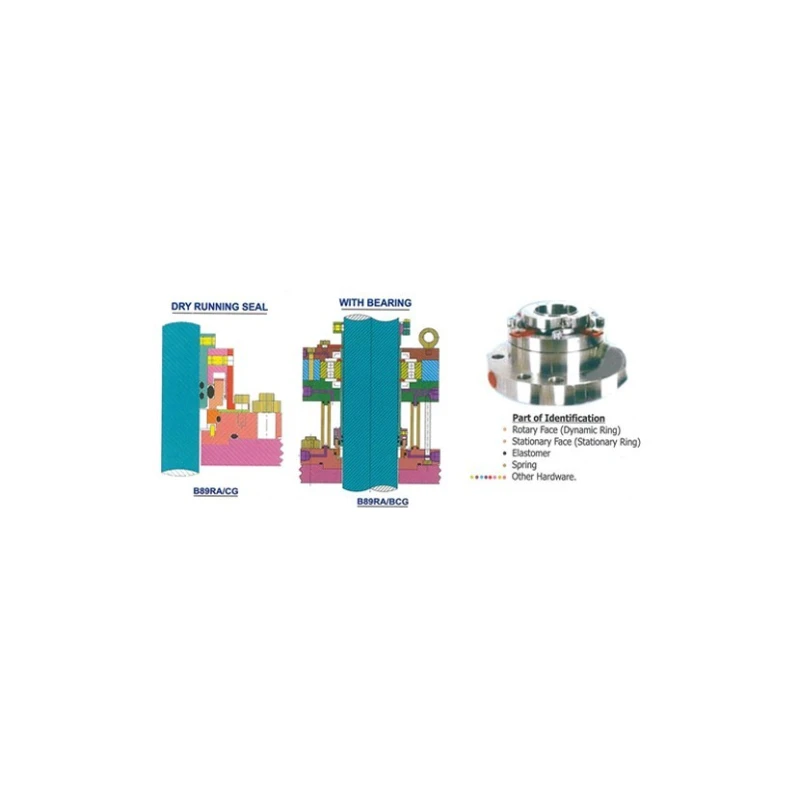

We are considered as the trustworthy manufacturer, supplier, and exporter of dryer running reverse balance seal. We have designed and developed the B89 RA/CG series of dry-running reverse balance seals.The seals are fabricated from high-grade material and dynamically tested on steel, glass-lined, and SS mixers, agitators, and vessels.The dry running reverses balance seal is used on top entry agitators. The seals are used to prevent contamination in food products and pharmaceutical products, agitated by agitator mixers. The seals do not require any external media for lubrication. Different types of face materials and elastomers are used for the relevant functioning. Thats why the seal has a wide range of applications in the industry.Application General Light Chemicals Food Products Pharmaceutical Products Corrosive ChemicalsSeal Characteristics Outside Mounted Independent of Direction of Rotation Reverse Balanced Dry Running Type Single Acting
- Easy to install and operate
- Dimensionally accurate
- Perfectly finished
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure rating for this model is 20 Bar (kg/cm²).
The maximum operating temperature for this unit is 125°C.
The hardware is made from SS 316, SS 304, Hast-C, and Monel Alloy 20.
The face materials include Carbon Ceramic (99.5%), Silicon Carbide, Tungsten Carbide, and Chrome Cast Steel, suitable for fluid applications.
The secondary seals available include Viton, EPDM, Silicon, Aflas, PTFE, GFT, TCV, FEP, TTV, and Kalrez.
This model is designed to be easy to install and operate, with outside mounting that is independent of the direction of rotation.
The seal is designed to be outside mounted and is independent of the direction of rotation.
No, this model does not require any external media for lubrication during operation.
