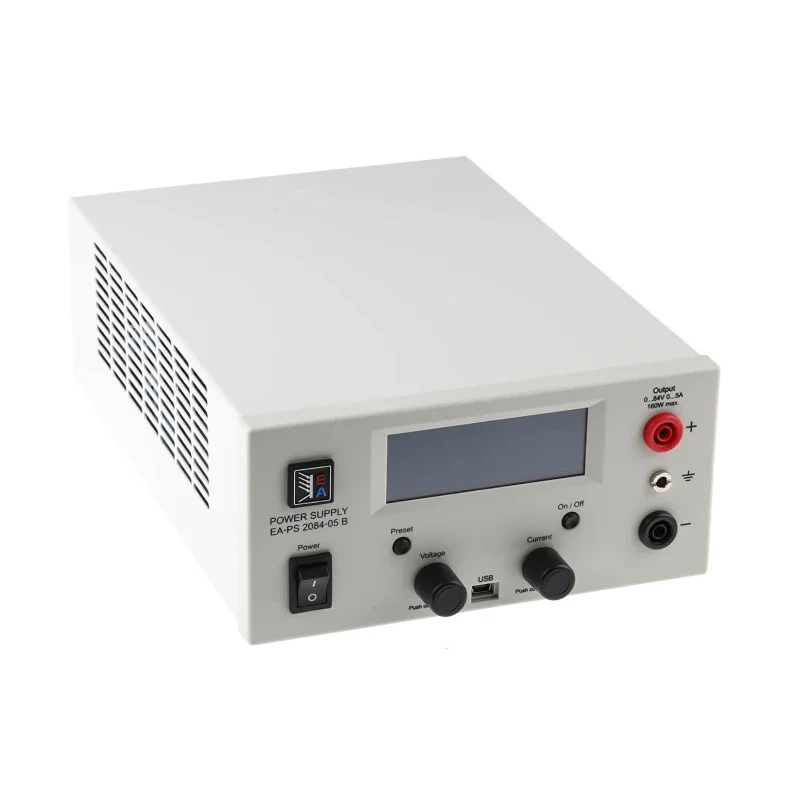

EA Elektro-Automatik Digital Bench Power Supply, 1-Output 0 V to 84 V, 160 W, 5 A Max EA-PS 2084-05B

Free Delivery in India | Lowest Global Shipping Charges

EA Elektro-Automatik Digital Bench Power Supply, 1-Output 0 V to 84 V, 160 W, 5 A Max EA-PS 2084-05B

Name: EA Elektro-Automatik Digital Bench Power Supply, 1-Output 0 V to 84 V, 160 W, 5 A Max EA-PS 2084-05B
Brand: EA Elektro-Automatik
SKU: 219585



Category Bench Power Supplies Brand EA Elektro-Automatik Condition New

Specifications

Country of Origin	China
Brand	EA Elektro-Automatik
Power	160W
Height	82mm
Model	EA-PS 2084-05B
Depth	240mm
Width	174mm
Output type	Digital
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Plug Type	IEC 320
Number of outputs	1
Maximum Output Current	5A
Standards/Approvals	RoHS
Maximum Output Voltage	84V
Maximum Supply Voltage	264V ac
Minimum Supply Voltage	90V
Digital/Analogue	Digital
Supported Number of Displays	1
Minimum Output Voltage	0V
Minimum Output Current	0A

Key Features

Microprocessor-controlled and USB-programmable for precise operation.
Equipped with digital encoders for voltage and current settings.
Includes a full 4-digit LCD display showing output and status.
Features overcurrent, overvoltage, and over-temperature protection.
Natural convection cooling design with no fan.
Suitable for industrial, laboratory, and educational applications.

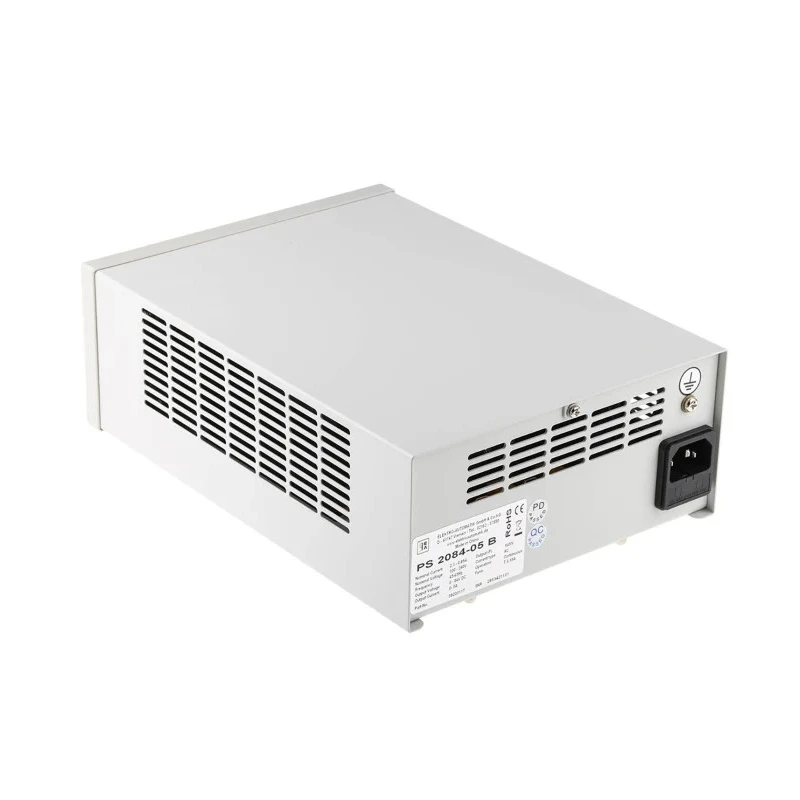

Compact flat desk-top housing with IEC 320 power plug.
Operating temperature range from 0°C to 50°C.

Product Description

EA Elektro-Automatik EA-PS 2084-05B digital bench power supply is a microprocessor-controlled, USB-programmable single-channel power supply designed for precision laboratory and industrial use. It provides a fully flexible auto-ranging output voltage from 0 V up to 84 V and output current from 0 A up to 5 A within a power rating of 160 W.

This power supply features digital encoders for fine voltage and current adjustment and a clear 4-digit LCD segment display that shows output preset, lock, and standby functions. The device incorporates robust protections including overcurrent protection (OCP), DC overvoltage protection (OVP), and over-temperature protection (OTP), ensuring safe and reliable operation.

Designed for natural convection cooling, the unit operates silently without a fan, enhancing laboratory environments. Power input is facilitated through an IEC 320 power plug with operating voltages ranging between 90 V minimum and 264 V AC maximum at frequencies of 45 to 65 Hz.

The compact dimensions (174 mm width, 82 mm height, and 240 mm depth) make it suitable for desktop setups, while an operating temperature range of 0°C to 50°C allows for versatility across various ambient conditions. The power supply complies with RoHS standards and is made in China.

Applications include industrial and system applications, laboratories, test institutes, educational institutions such as schools and universities, research and development workshops, and workshop testing. The unit's high stability and low ripple voltage make it ideal for testing electronics and powering sensitive equipment.

Microprocessor-controlled with USB programmability for precision control. Fully flexible auto-ranging output for voltage and current. Digital encoders and 4-digit LCD display for easy adjustment and monitoring. Overcurrent, overvoltage, and over-temperature protection for device safety.

Natural convection cooling with silent operation. Compact flat desk-top housing with IEC 320 plug. Wide operating voltage input range and frequency compliance. Suitable for industrial, educational, and laboratory use cases.

Complies with RoHS standards. Manufactured in China. Explore more precision Bench Power Supplies from EA Elektro-Automatik and related testing equipment in the Industrial Machines & Instruments category on EnvMart.
